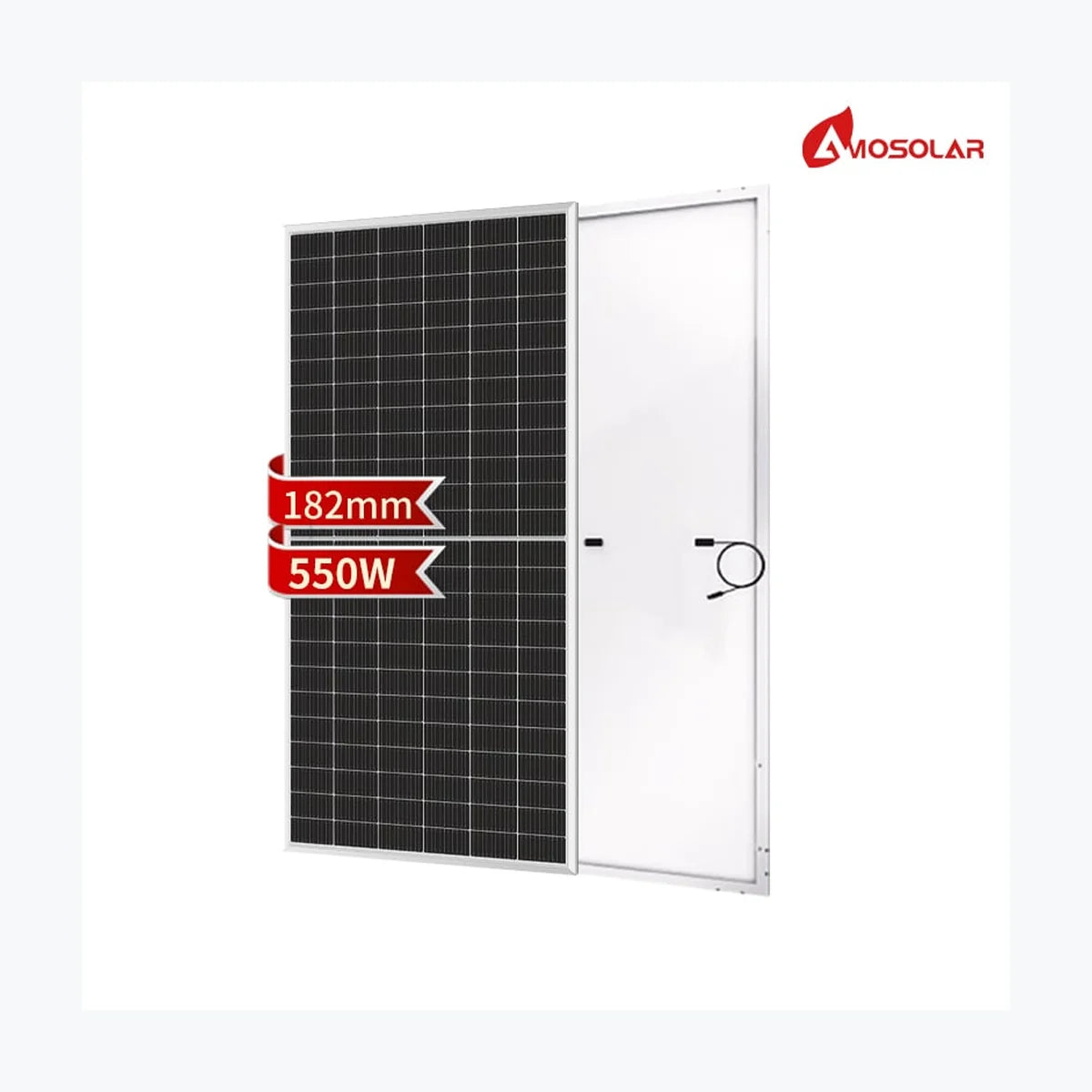

    AmoSolar AS560M10-144

    AmoSolar AS560M10-144

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1212
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS560M10-144 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 560 Wp Voltage at Maximum Power (Vmpp) 43.06 V Current at Maximum Power (Impp) 13.02 A Open Circuit Voltage (Voc) 52.57 V Short Circuit Current (Isc) 13.54 A Panel Efficiency 21.67 % Maximum Power (Pmax) 422.4 Wp Voltage at Maximum Power (Vmpp) 39 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 46.96 V Short Circuit Current (Isc) 11.42 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 28.6 kg Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PD

      Technology: PERC
      Power Range: 530 ~ 560 Wp
      Panel Efficiency: 20.51 ~ 21.67 %
      Weight: 28.6 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
