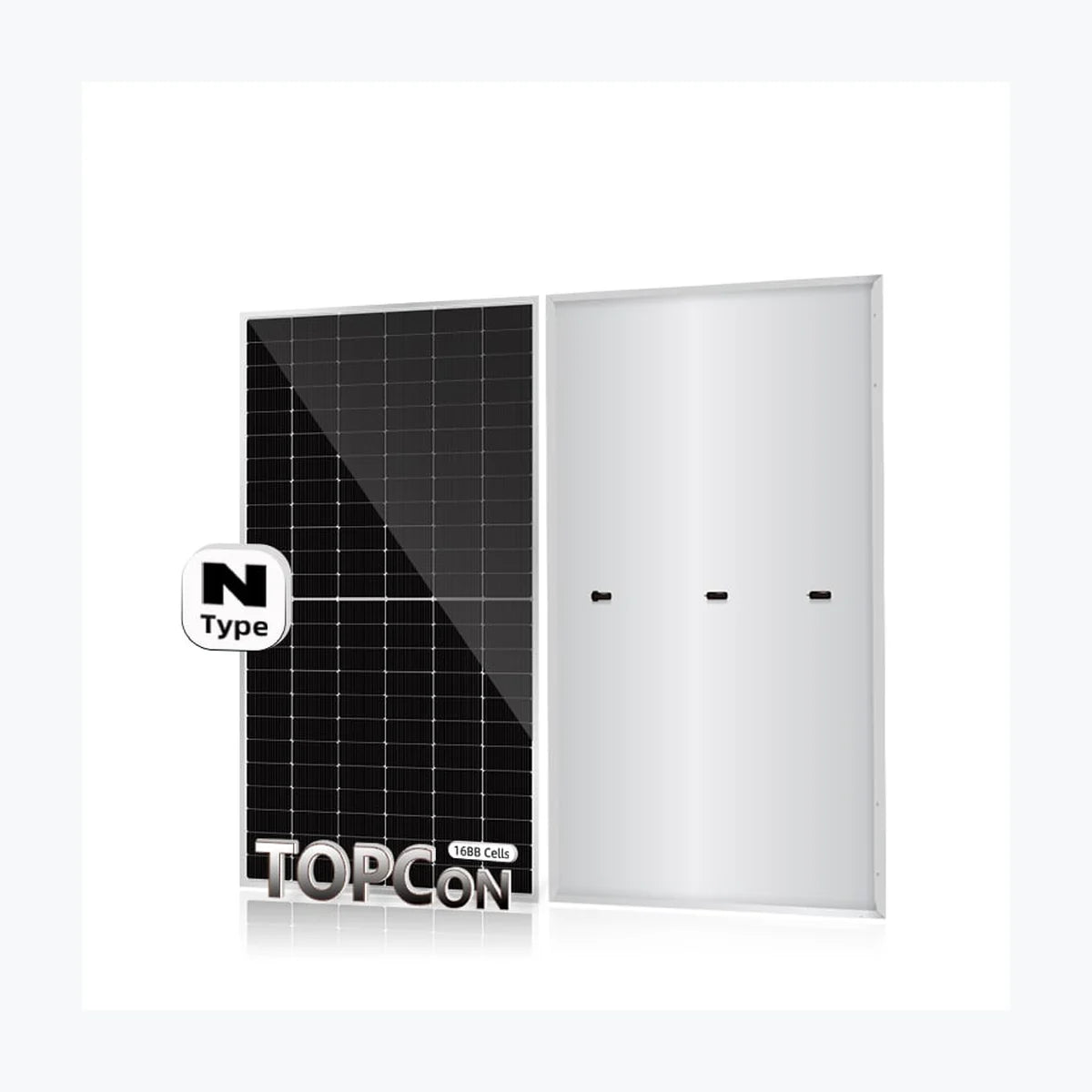

    AmoSolar AS565M10-144

    AmoSolar AS565M10-144

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1213
    • Container price: $37.80 USD
    • Container qty: 720
    • Pallet price: $1.78 USD
    • Pallet qty: 30
    • Unit price: $0.07 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS565M10-144 Product Warranty 12 Years Power Warranty 12 Years of 94.6 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Maximum Power (Pmax) 565 Wp Voltage at Maximum Power (Vmpp) 43.26 V Current at Maximum Power (Impp) 13.08 A Open Circuit Voltage (Voc) 52.69 V Short Circuit Current (Isc) 13.6 A Panel Efficiency 21.87 % Maximum Power (Pmax) 425 Wp Voltage at Maximum Power (Vmpp) 39.38 V Current at Maximum Power (Impp) 10.79 A Open Circuit Voltage (Voc) 48.06 V Short Circuit Current (Isc) 11.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x30 mm Weight 28.6 kg Cell Size 182×182 mm Cell Number 144 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downloa

      Technology: TOPCon
      Power Range: 565 ~ 590 Wp
      Panel Efficiency: 21.87 ~ 22.83 %
      Weight: 28.6 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
