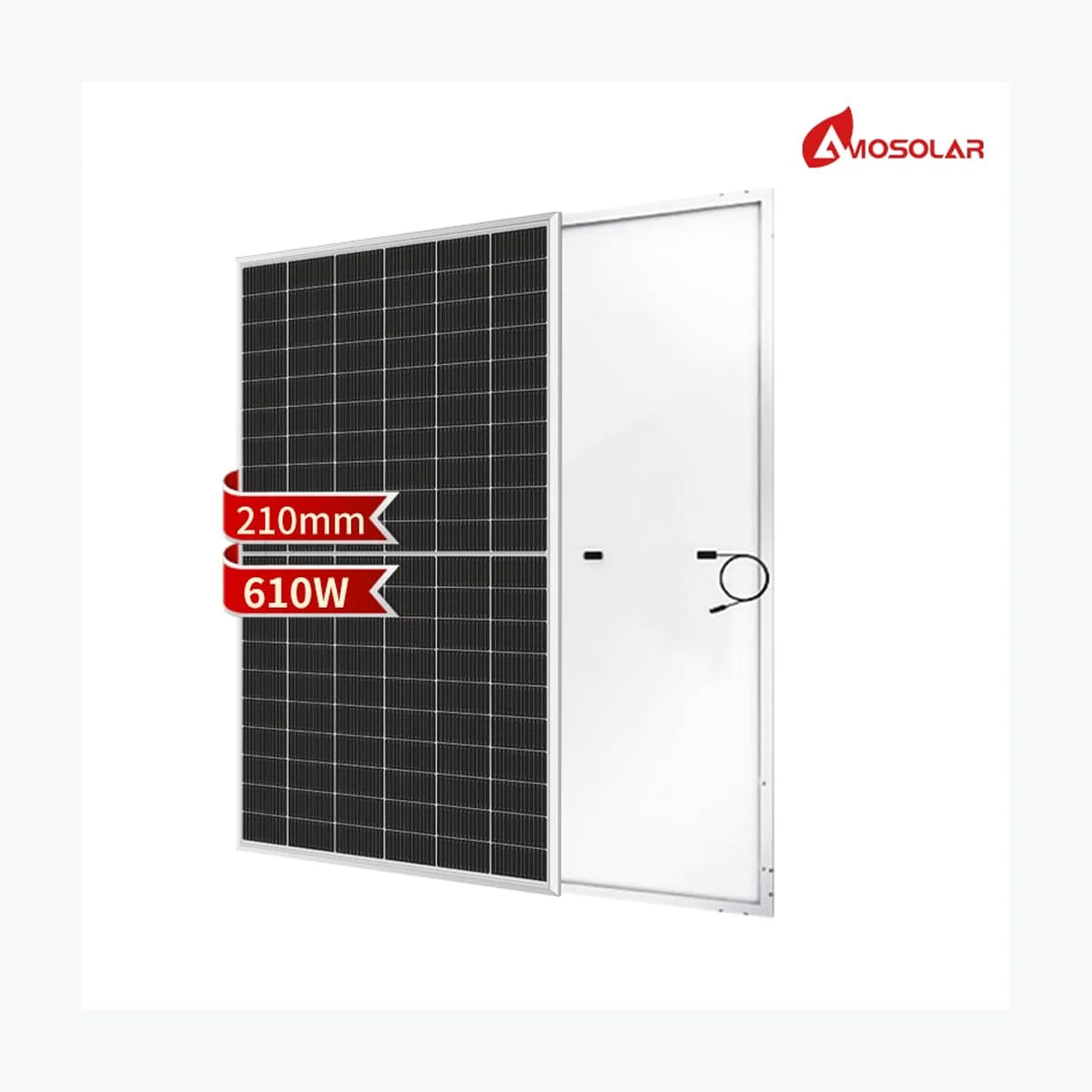

    AmoSolar AS600G12-120

    AmoSolar AS600G12-120

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1223
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS600G12-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 600 Wp Voltage at Maximum Power (Vmpp) 34.8 V Current at Maximum Power (Impp) 17.25 A Open Circuit Voltage (Voc) 41.92 V Short Circuit Current (Isc) 18.17 A Panel Efficiency 21.2 % Maximum Power (Pmax) 450.2 Wp Voltage at Maximum Power (Vmpp) 32.6 V Current at Maximum Power (Impp) 13.82 A Open Circuit Voltage (Voc) 38.8 V Short Circuit Current (Isc) 14.92 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.340 %/°C Temperature Coefficient of Voc -0.250 %/°C Temperature Coefficient of Isc 0.040 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30.9 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.9 kg Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's

      Power Range: 580 ~ 615 Wp
      Panel Efficiency: 20.49 ~ 21.73 %
      Weight: 30.9 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
