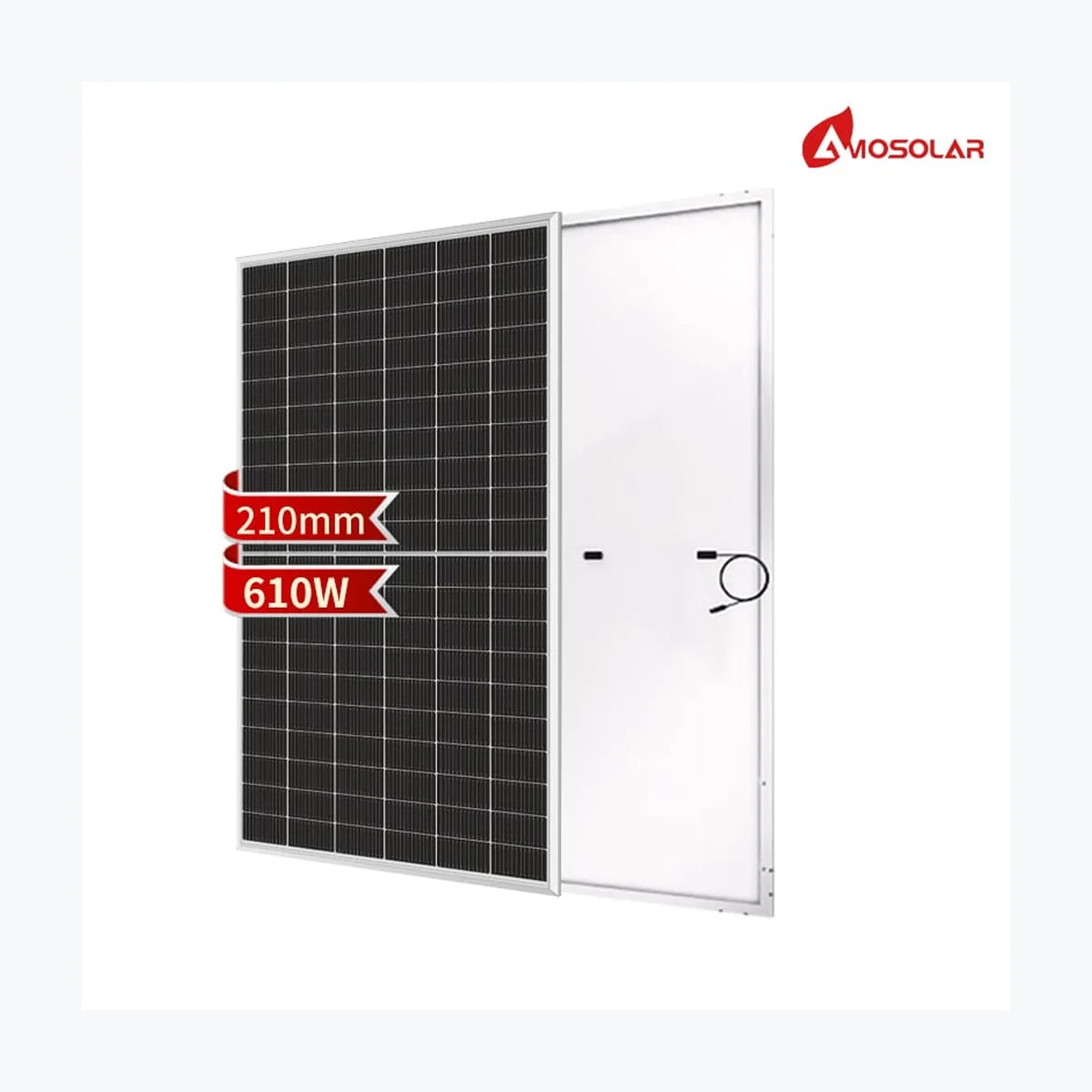

AmoSolar AS610G12-120
PayPal Pay in 4 interest-free payments of $20.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-1225
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AS610G12-120 Product Warranty 12 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 610 Wp Voltage at Maximum Power (Vmpp) 35.2 V Current at Maximum Power (Impp) 17.33 A Open Circuit Voltage (Voc) 42.16 V Short Circuit Current (Isc) 18.29 A Panel Efficiency 21.55 % Maximum Power (Pmax) 457.7 Wp Voltage at Maximum Power (Vmpp) 32.9 V Current at Maximum Power (Impp) 13.89 A Open Circuit Voltage (Voc) 39.1 V Short Circuit Current (Isc) 15.3 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.340 %/°C Temperature Coefficient of Voc -0.250 %/°C Temperature Coefficient of Isc 0.040 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30.9 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.9 kg Cell Number 120 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's
Power Range: 580 ~ 615 Wp
Panel Efficiency: 20.49 ~ 21.73 %
Weight: 30.9 kg
Seller Name: AmoSolar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-1225 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
