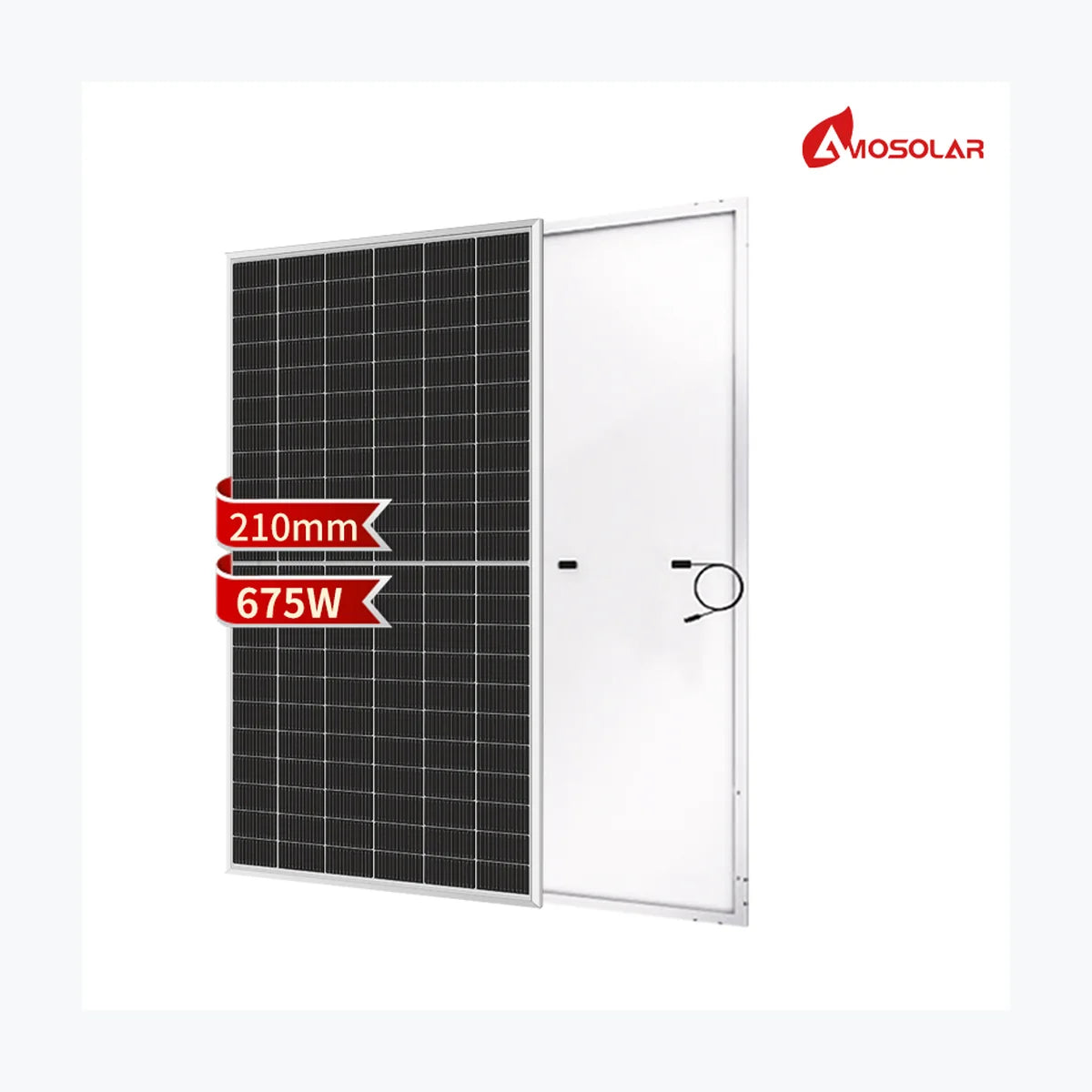

    AmoSolar AS670G12-132

    AmoSolar AS670G12-132

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1237
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AS670G12-132 Product Warranty 12 Years Power Warranty 10 Years of 93.01 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Maximum Power (Pmax) 670 Wp Voltage at Maximum Power (Vmpp) 38.8 V Current at Maximum Power (Impp) 17.27 A Open Circuit Voltage (Voc) 46.32 V Short Circuit Current (Isc) 18.34 A Panel Efficiency 21.57 % Maximum Power (Pmax) 502.7 Wp Voltage at Maximum Power (Vmpp) 36.3 V Current at Maximum Power (Impp) 13.85 A Open Circuit Voltage (Voc) 43.2 V Short Circuit Current (Isc) 14.96 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 33 kg Cell Number 132 Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Da

      Power Range: 645 ~ 675 Wp
      Panel Efficiency: 20.76 ~ 21.73 %
      Weight: 33 kg
      Seller Name: AmoSolar Co., Ltd.
      Country: China
