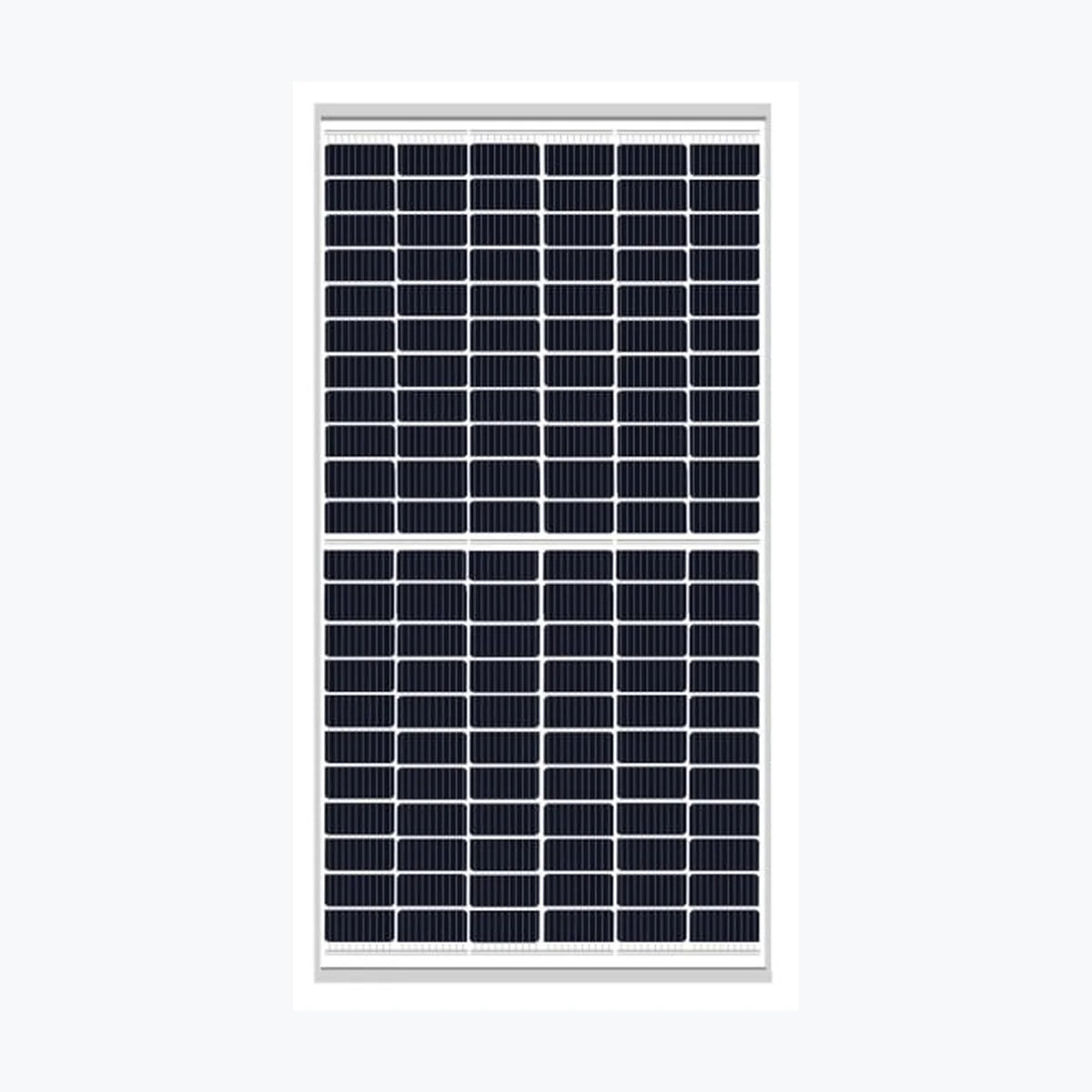

Aoli Solar AL575M10
PayPal Pay in 4 interest-free payments of $50.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-1381
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AL575M10 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 575 Wp Voltage at Maximum Power (Vmpp) 44.22 V Current at Maximum Power (Impp) 13.01 A Open Circuit Voltage (Voc) 53.43 V Short Circuit Current (Isc) 13.69 A Panel Efficiency 20.58 % Maximum Power (Pmax) 428 Wp Voltage at Maximum Power (Vmpp) 41.14 V Current at Maximum Power (Impp) 10.41 A Open Circuit Voltage (Voc) 50.43 V Short Circuit Current (Isc) 11.06 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2464x1134x35 mm Weight 32 kg Cell Size 182×182 mm Cell Number 156 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer'
Power Range: 575 ~ 600 Wp
Panel Efficiency: 20.58 ~ 21.47 %
Weight: 32 kg
Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-1381 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
