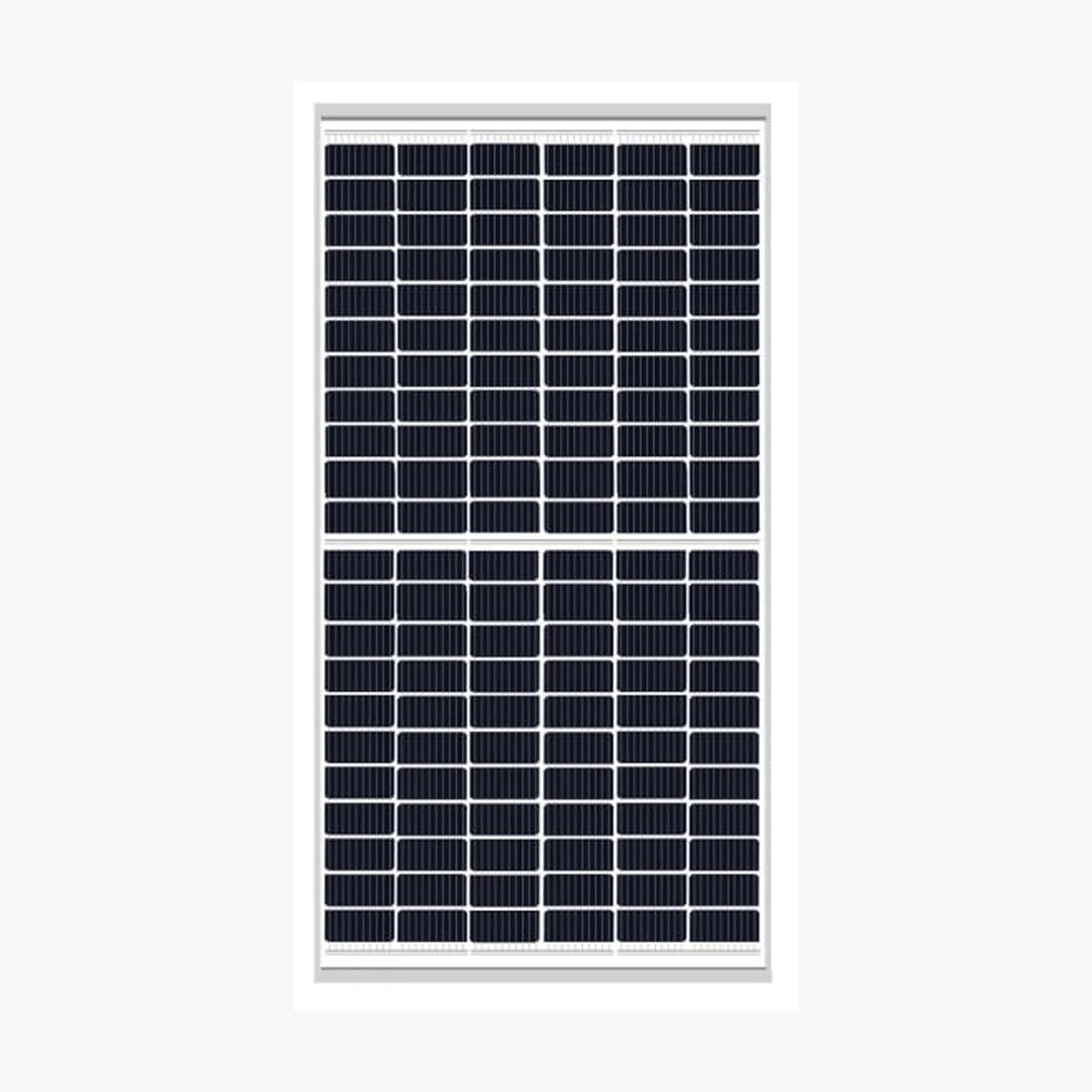

    Aoli Solar AL590M10

    Aoli Solar AL590M10

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-1384
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AL590M10 Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 44.49 V Current at Maximum Power (Impp) 13.27 A Open Circuit Voltage (Voc) 53.76 V Short Circuit Current (Isc) 13.97 A Panel Efficiency 21.12 % Maximum Power (Pmax) 439 Wp Voltage at Maximum Power (Vmpp) 41.46 V Current at Maximum Power (Impp) 10.59 A Open Circuit Voltage (Voc) 50.75 V Short Circuit Current (Isc) 11.27 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2464x1134x35 mm Weight 32 kg Cell Size 182×182 mm Cell Number 156 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer'

      Power Range: 575 ~ 600 Wp
      Panel Efficiency: 20.58 ~ 21.47 %
      Weight: 32 kg
      Seller Name: Changzhou Aoli Energy Technology Co., Ltd.
      Country: China
