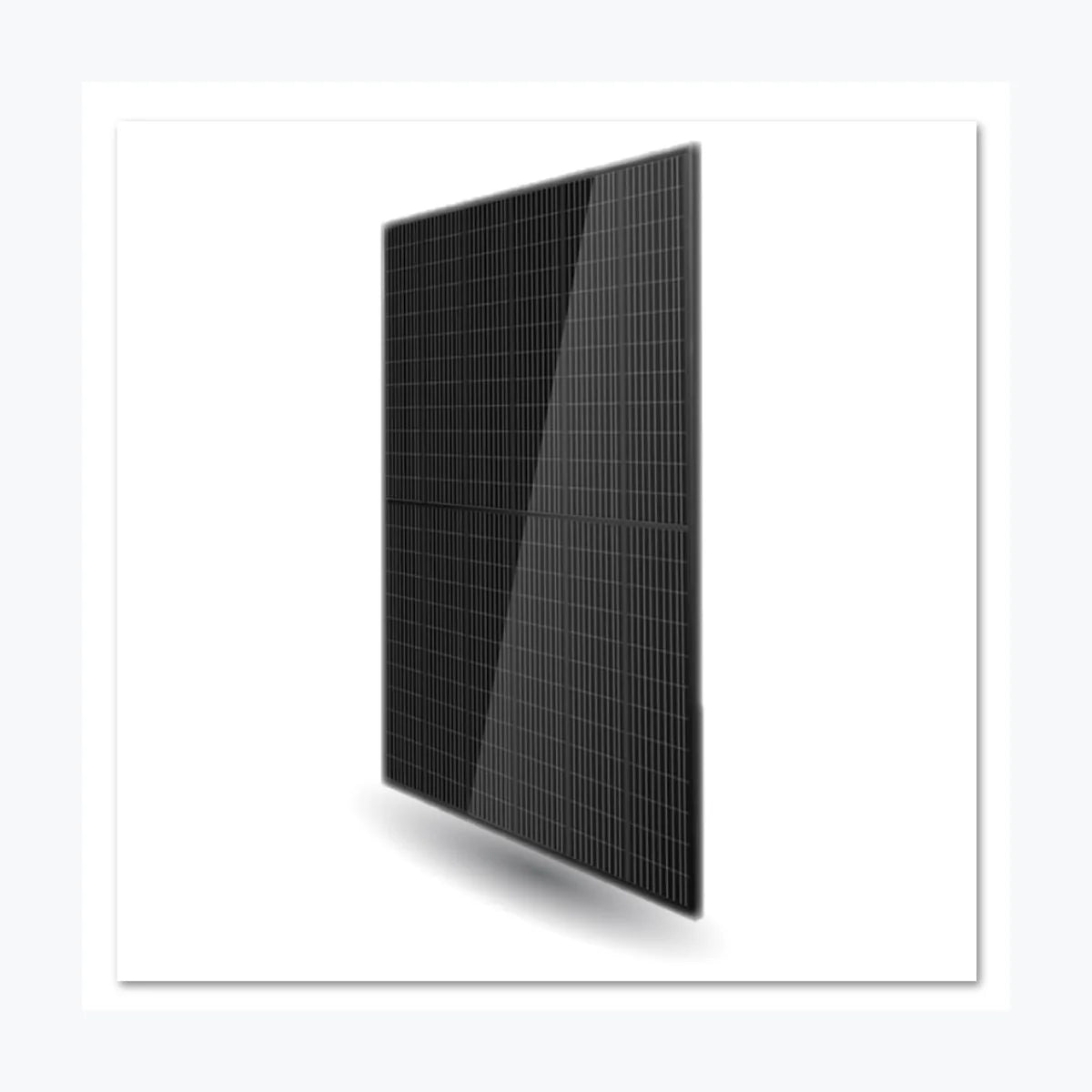

    ARTsolar 500 W

    ARTsolar 500 W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0724
    • Container price: $75.60 USD
    • Container qty: 720
    • Pallet price: $3.57 USD
    • Pallet qty: 30
    • Unit price: $0.14 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 500 W Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 35.98 V Current at Maximum Power (Impp) 13.9 A Open Circuit Voltage (Voc) 43.31 V Short Circuit Current (Isc) 14.59 A Panel Efficiency 23.08 % Maximum Power (Pmax) 377 Wp Voltage at Maximum Power (Vmpp) 33.87 V Current at Maximum Power (Impp) 11.13 A Open Circuit Voltage (Voc) 41.17 V Short Circuit Current (Isc) 11.84 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1910x1134x30 mm Weight 24 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class

      Technology: TOPCon, N-type
      Power Range: 500 Wp
      Panel Efficiency: 23.08%
      Weight: 24 kg
      Seller Name: ARTsolar (Pty) Ltd
      Country: South Africa
