Axitec 550W Solar Panel 144 Cell Bifacial AC-550MBT/144US Assembled in the USA Commercial 620 per Container (Truckload)
Axitec 550W Solar Panel 144 Cell Bifacial AC-550MBT/144US Assembled in the USA Commercial 620 per Container (Truckload)
Regular price
$226.28 USD
Regular price
Sale price
$226.28 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0214
- Documents:
- Height: 1.38
- Length: 89.68
- Width: 44.64
Product Description
-

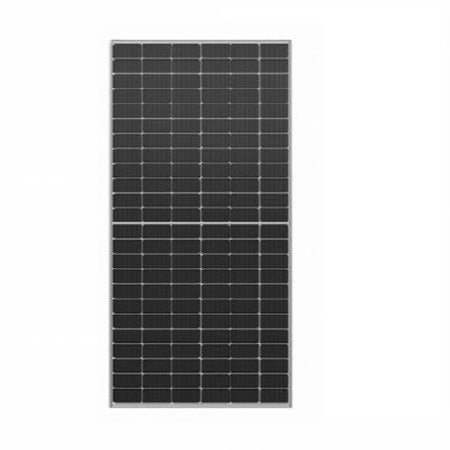

The Axitec AC‑550MBT/144US (AXIpremium XXL HC MT) is a 550 W bifacial solar module featuring 144 half‑cut monocrystalline PERC cells in a sleek silver aluminum frame.
- Rated Power: 550 W • Efficiency: ~21.29%
- Electrical (STC): Vmpp ≈ 41.96 V (Impp ≈ 13.11 A) • Voc ≈ 49.90 V • Isc ≈ 14.00 A • Tolerance: 0 to +5 W
- Max System Voltage: 1500 V DC • Fuse Rating: 30 A
- Connectors: Stäubli (MC4‑EVO2), IP68-rated
- Mechanical Load Rating: 5400 Pa snow / 2400 Pa wind
- Operating Temp: −40 °C to +85 °C • Pmax Temp Coeff: −0.35 %/°C • Voc Coeff: −0.29 %/°C
- Bifacial Gain: ~70 % bifaciality (~+25 % rear-side yield under favorable conditions)
- Warranty: 15‑year product warranty; 25‑year linear power warranty (≥95 % retained at year 25) :contentReference[oaicite:3]{index=3}
- Packing: 31 panels/pallet; typical container shipment ≈620 panels (20 pallets)
-
