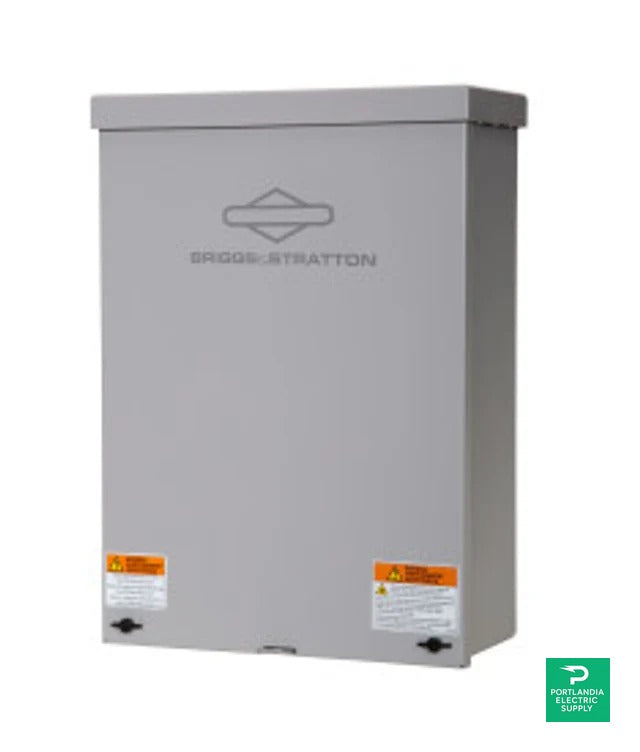

Briggs & Stratton 100A 16-circuit transfer switch – essential-load coverage made easy
The Briggs & Stratton 100A 16-circuit transfer switch automatically disconnects utility and connects generator power to up to sixteen priority loads within seconds of an outage. Flexible indoor/outdoor mounting and the Briggs & Stratton 100A 16-circuit transfer switch’s built-in AC Control Module keep two air-conditioners running without over-loading your generator
Key Features
Customizable TRCM controller
Program load priorities and manage two HVAC compressors—features that let the Briggs & Stratton 100A 16-circuit transfer switch deliver whole-house comfort from a 12-20 kW standby unit.
Specifications
| Amperage rating | 100 A |
|---|---|
| Circuits | 16 (breakers field-supplied) |
| Voltage / phase | 120 / 240 V, single-phase, 60 Hz |
| Controller | TRCM – customizable load shedding |
| Enclosure | NEMA 3R steel, indoor/outdoor |
| Dimensions (L × W × D) | 24 × 14 × 6 in |
| UL listing | UL 1008, 10 kA withstand |
| Warranty | 5-year limited |
Installation & Warranty
Pre-punched knock-outs and compact 6-in depth speed installation, while the 5-year warranty backs every Briggs & Stratton 100A 16-circuit transfer switch for lasting peace of mind. Protect your home today with a Briggs & Stratton 100A 16-circuit transfer switch—reliable power when you need it.
