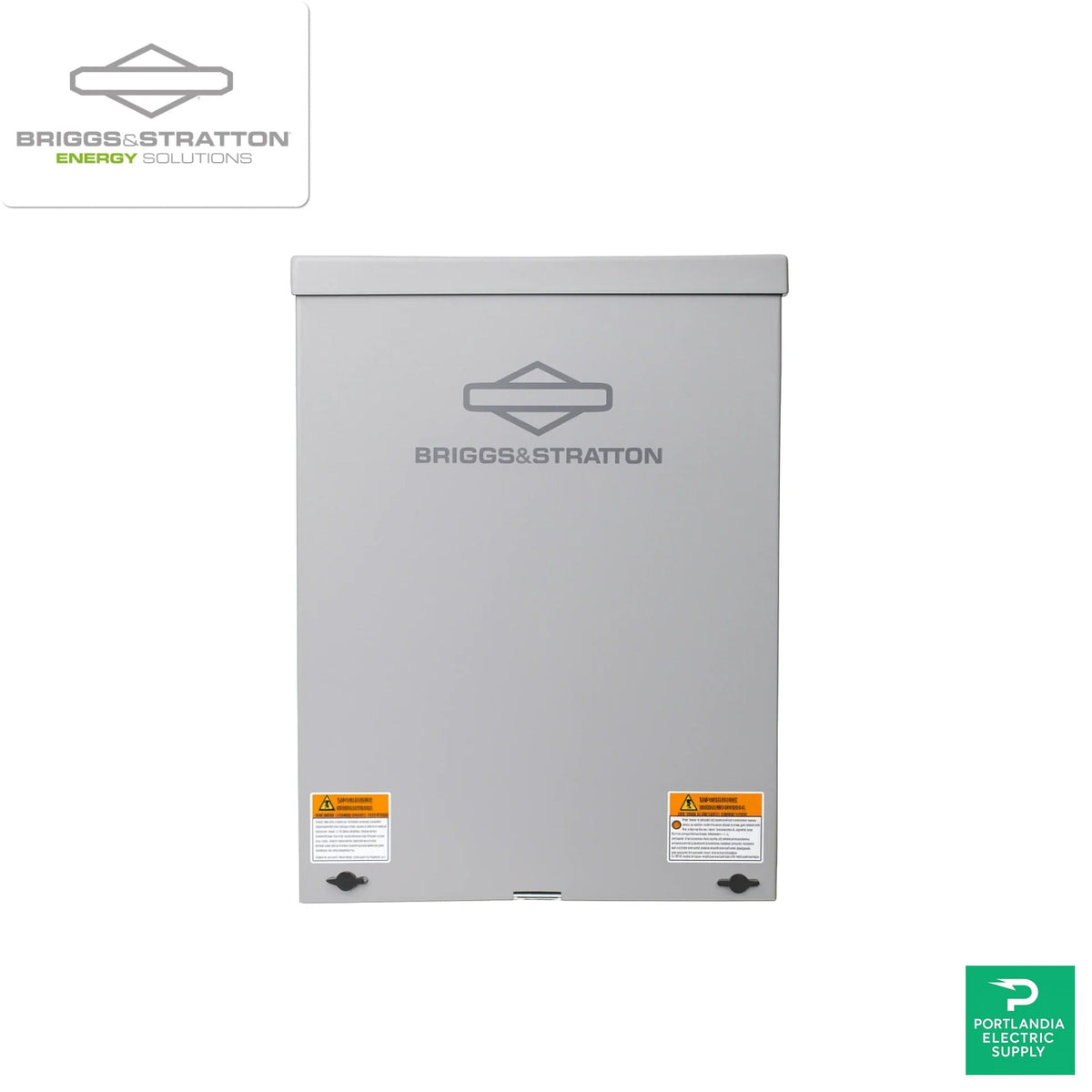

Briggs and Stratton 100 amp Standard SED Transfer Switch, NEMA 3R - 071210
PayPal Pay in 4 interest-free payments of $275.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-2227
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Briggs & Stratton 100A transfer switch – code-compliant power switching
The Briggs & Stratton 100A transfer switch automatically senses a utility outage and commands your standby generator to power the home. When grid power returns, the Briggs & Stratton 100A transfer switch re-transfers the load and lets the generator stand down – all in seconds.
Key Features
Service-Entrance Disconnect (SED) built in
This NEMA 3R steel enclosure combines the main disconnect and the Briggs & Stratton 100A transfer switch in one cabinet, streamlining installation and meeting NEC ® requirements for residential service entrances. UL 1008 open-transition design handles up to 10 kA fault-current withstand.:contentReference[oaicite:4]{index=4}
Specifications
| Amperage rating | 100 A |
|---|---|
| Voltage / phase | 120 / 240 V, single-phase, 60 Hz |
| Poles | 2-pole |
| Enclosure | NEMA 3R galvanneal steel, powder-coated |
| Dimensions (L × W × D) | 20 × 14.5 × 7 in |
| Controller | ACCM (standard) – open transition |
| UL listing | UL 1008, 10 kA withstand rating |
| Compatibility | Symphony Choice load management |
| Warranty | 5-year limited parts |
Installation & Warranty
Indoor or outdoor mounting, copper/aluminum lug ranges (#14 AWG – 1/0) and Symphony modules make the Briggs & Stratton 100A transfer switch ideal for 12–25 kW standby generators. A 5-year factory warranty backs the Briggs & Stratton 100A transfer switch for long-term peace of mind.
