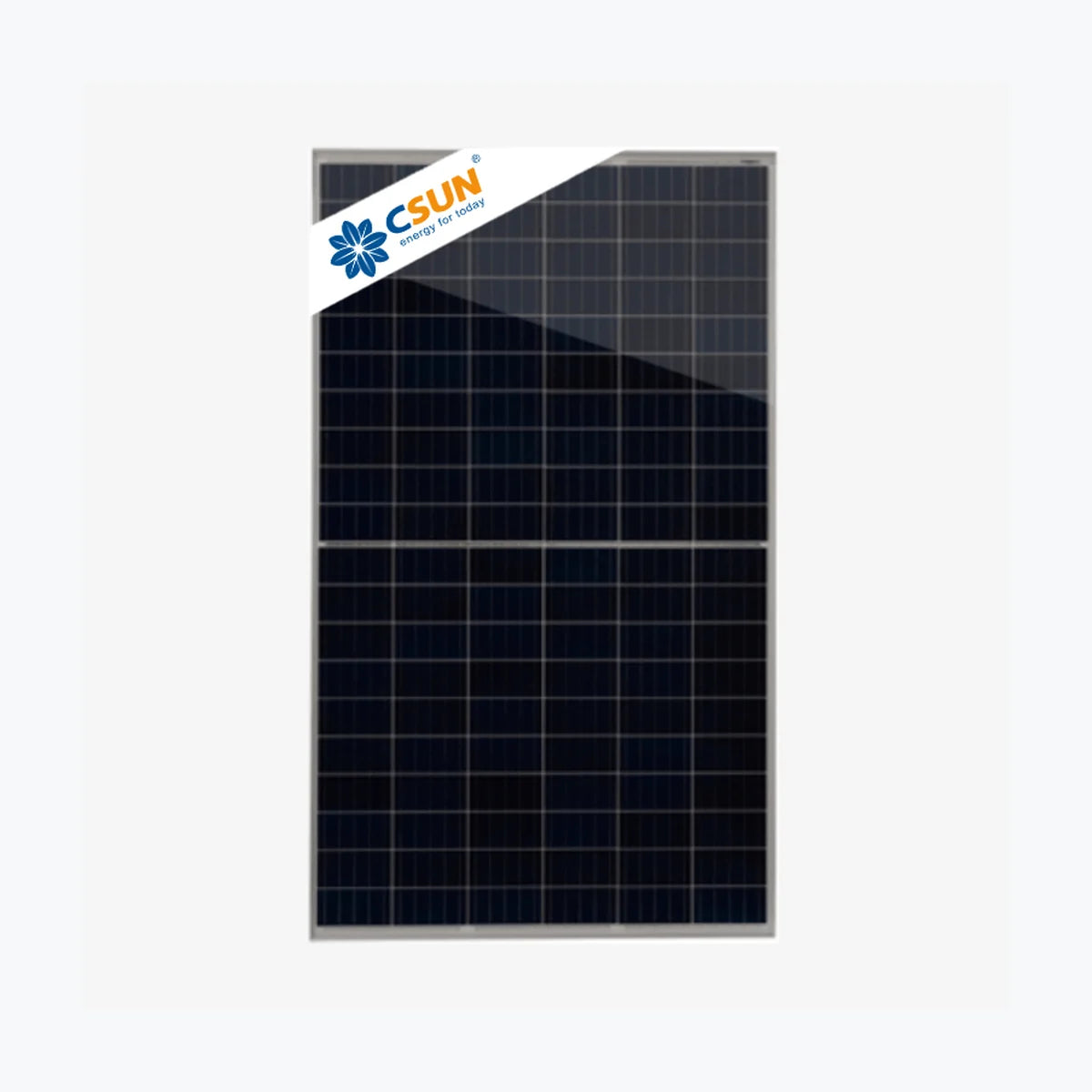

    CEEG CSU645-132M

    CEEG CSU645-132M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-2457
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. CSU645-132M Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 645 Wp Voltage at Maximum Power (Vmpp) 37.24 V Current at Maximum Power (Impp) 17.32 A Open Circuit Voltage (Voc) 45.08 V Short Circuit Current (Isc) 18.38 A Panel Efficiency 20.76 % Maximum Power (Pmax) 486 Wp Voltage at Maximum Power (Vmpp) 34.71 V Current at Maximum Power (Impp) 14.01 A Open Circuit Voltage (Voc) 42.38 V Short Circuit Current (Isc) 14.81 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 34.5 kg Cell Number 132 Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 65 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 645 ~ 670 Wp
      Panel Efficiency: 20.76 ~ 21.6 %
      Weight: 34.5 kg
      Seller: CEEG (Jiangsu) Tech Co.，LTD
      Country: China
