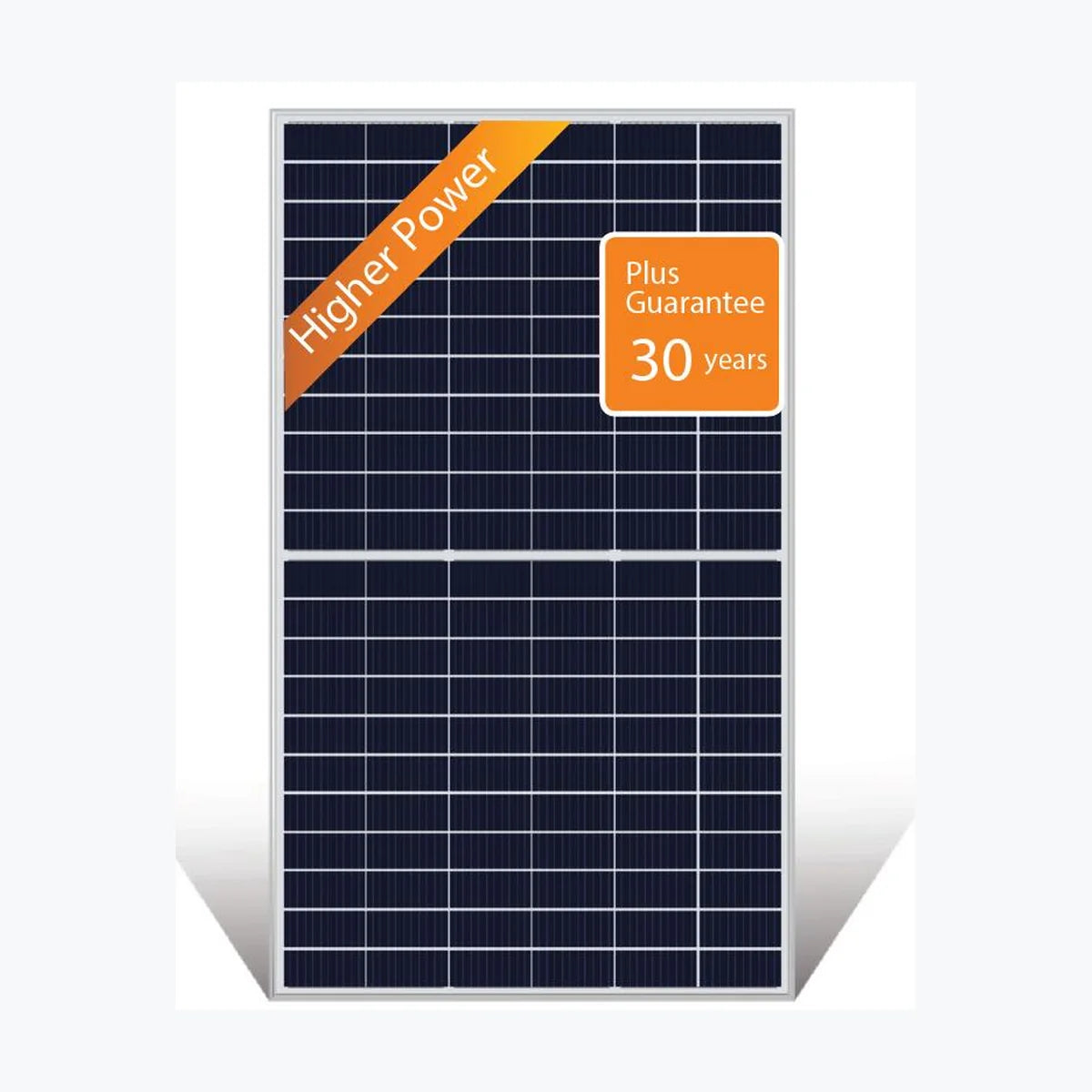

    Centro Energy CE-660M

    Centro Energy CE-660M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-2983
    • Container price: $48.60 USD
    • Container qty: 720
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. CE-660M Product Warranty 12 Years Power Warranty 12 Years of 92 %, 30 Years of 83 % Total Degradation Rate ⏳ 0.57 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 38.08 V Current at Maximum Power (Impp) 17.33 A Open Circuit Voltage (Voc) 45.66 V Short Circuit Current (Isc) 18.39 A Panel Efficiency 21.25 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.4 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 34.5 kg Cell Size 210×105 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1000 mm Download Manufacturer's PDF Datasheet

      Power Range: 650 ~ 670 Wp
      Panel Efficiency: 20.92 ~ 21.57 %
      Weight: 34.5 kg
      Seller Name: Centro Energy Co., Ltd.
      Country: China
