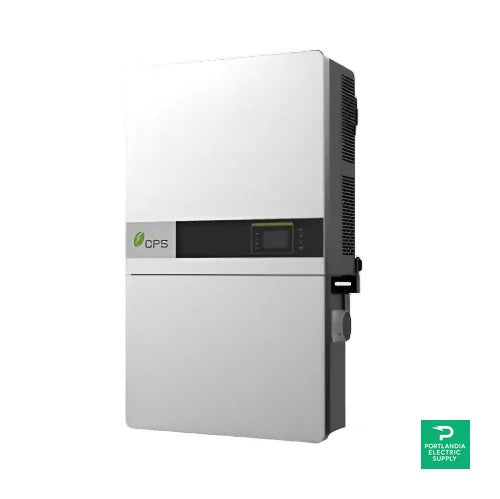

Chint 50kW 3Phase String Inverter with RSD Wirebox - SCA50KTL-DO/US
The Chint Power SCA50KTL-DO/US-T inverter is a high-performance, medium-power inverter designed for North America's energy needs. With an impressive efficiency of up to 98.8%, it is perfect for ground mount, large rooftop, and carport applications. Featuring a robust design, it integrates seamlessly into various installations, enhancing both functionality and reliability.
Product Features
High Efficiency Performance
Experience up to 98.8% peak efficiency and 98.5% CEC efficiency, ensuring optimal power conversion for your applications.
Flexible Mounting Options
The inverter supports a mounting orientation from 15 to 90 degrees, making it versatile for various installation types.
Robust Design and Protection
Equipped with NEMA Type 4X enclosure, this inverter is designed to withstand challenging weather conditions, safeguarding its performance in outdoor settings.
Integrated Safety Features
Includes NEC-compliant Arc-Fault circuit protection and integrated disconnect switches for enhanced safety and ease of maintenance.
Advanced Monitoring Capabilities
Features user-friendly LCD and LED displays, alongside remote diagnostic capabilities and firmware upgrades via the CPS FlexOM Gateway.
How It Works
The Chint Power SCA50KTL-DO/US-T combines innovative components to deliver superior energy conversion. Designed with three MPPTs, it maximizes power point tracking for efficient energy capture.
Multi-Point Power Tracking (MPPT)
Optimizes efficiency with three MPPTs, allowing for dynamic power tracking and improved energy harvest from solar panels.
Surge Protection Mechanism
Utilizes Type II MOV technology to protect against voltage spikes, ensuring long-term reliability and durability.
Advanced Cooling System
Incorporates variable speed cooling fans to maintain optimal operating temperatures, even in harsh environments.
Specifications
| Max. PV Power | 90kW (33kW per MPPT) |
| Max. DC Input Voltage | 1000Vdc |
| Operating DC Voltage Range | 200-950Vdc |
| Number of MPP Trackers | 3 |
| Rated AC Output Power | 50kW |
| Max. AC Apparent Power | 50/55kVA |
| Output Voltage | 480Vac |
| Max. AC Output Current | 60.2/66.2A |
| Enclosure Protection | NEMA Type 4X |
| Operating Temperature Range | -22F to +140F / -30C to +60C |
| SKU | PES-SPS-SIV-0405 |
|---|---|
| MPN | SCA50KTL-DO/US-T |
| Manufacturer | Chint Power |
