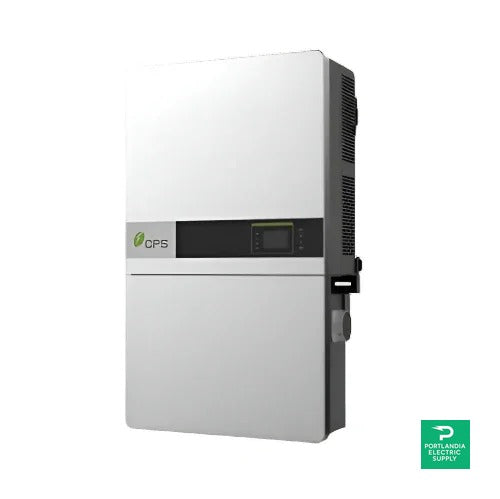

Chint 60kW Three-Phase String Inverter 1000VDC with RSD Wirebox
The Chint Power SCA60KTL-DO/US-T is a robust and versatile three-phase string inverter designed for optimal performance in North American markets. This inverter offers a substantial energy conversion capacity and is ideal for ground mount, large rooftop, and carport applications. Boasting a peak efficiency of 98.8% and a CEC efficiency of 98.5%, it ensures high-performance energy conversion, while its durable NEMA Type 4X enclosure supports usage across diverse environments. With integrated PLC capability and compatibility with leading rapid shutdown solutions, it offers reliable grid compliance and enhanced safety controls.
Key Features
High Efficiency
Chint Power's 60kW inverter comes with an impressive conversion efficiency of 98.8%, ensuring maximum energy harvest and optimal system yield.
Flexible Mounting Options
This inverter supports mounting angles from 15 to 90 degrees, facilitating low-profile rooftop installations with ease.
Advanced Safety Features
Equipped with NEC-compliant and UL-listed Arc-Fault circuit protection, this inverter guarantees enhanced safety for your solar installation.
Integrated Monitoring Solutions
The system includes standard remote diagnostics and firmware upgrades, enabled through the optional FlexOM Gateway for streamlined maintenance and monitoring.
Durable Outdoor Design
With a NEMA Type 4X enclosure, this inverter is crafted to withstand harsh outdoor conditions, ensuring longevity and sustained performance.
Operation Insights
This inverter seamlessly integrates with the grid and various energy management systems, featuring componentry that supports sophisticated energy conversion and distribution processes.
Modular Wire-Box Design
The separable wire-box design allows for quick serviceability and easy installation, enhancing operational efficiency.
MPPT Technology
Features three Maximum Power Point Trackers (MPPTs) with five inputs each, offering extensive flexibility and maximizing solar capture.
Remote Management
With SunSpec and Modbus RS485 interfaces, it ensures efficient communication with your monitoring systems, facilitating comprehensive energy management.
Technical Specifications
| Max. PV Power | 90kW (33kW per MPPT) |
| Max. DC Input Voltage | 1000Vdc |
| Operating Voltage Range | 200-950Vdc |
| MPPT Voltage Range | 540-850Vdc |
| Max. AC Output Power | 60kW |
| Efficiency | 98.8% Max, 98.5% CEC |
| Enclosure | NEMA Type 4X |
| Cooling Method | Variable speed cooling fans |
| Operating Temperature | -22F to +140F |
| Weight | 123.5lbs/56kg; Wire-box: 33lbs/15kg |
| SKU | PES-SPS-SIV-0404 |
|---|---|
| MPN | SCA60KTL-DO/US-T |
| Manufacturer | Chint Power |
