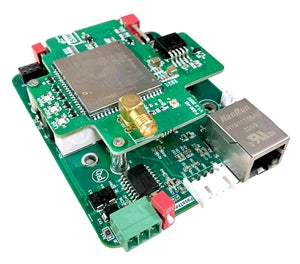

CPS FlexOM-PP Data Communications and Control Gateway — Smart Power Plant Controller for Solar and Storage
The CPS Flex OM-PP Data Communications and Control Gateway is an intelligent power management and communication solution designed for commercial and utility-scale solar installations. It enables advanced monitoring, control, and data acquisition across inverter and energy storage systems. The CPS FlexOM-PP Data Communications and Control Gateway offers real-time data processing, remote management, and grid-interactive functionalities, ensuring optimised system performance and grid compliance.
Product Features
Comprehensive System Control
Provides centralised control and monitoring for up to 250 inverters and related devices, enhancing operational visibility and efficiency.
High-Speed Data Communications
The CPS FlexOM-PP Data Communications and Control Gateway features multiple Ethernet ports, Modbus TCP/IP, and serial connections for robust and fast data transmission.
Flexible Configuration
Supports integration with solar inverters, energy storage systems, weather stations, and smart grid components, ensuring full scalability.
Remote Management
Allows users to access live system performance data, update firmware, and troubleshoot remotely through a secure web portal.
Industrial-Grade Design
Built for reliability in challenging environments, featuring a ruggedised enclosure and long-term operational stability.
How It Works
The CPS FlexOM-PP Data Communications and Control Gateway acts as a central data concentrator and control hub. It collects performance data from inverters and sensors, processes it locally, and transmits insights to cloud-based monitoring systems. It also enables supervisory control for grid interaction, energy dispatch, and fault diagnostics.
Specifications
| Model | FlexOM-PP |
| Function | Power Plant Controller / Communication Gateway |
| Compatible Inverters | CPS Three-Phase and Central Inverters |
| Communication Interfaces | Ethernet, RS485, Modbus TCP/IP, Digital I/O |
| Input Power | 120–240 VAC |
| Operating Temperature | -22 °F to 140 °F (-30 °C to +60 °C) |
| Max Supported Devices | Up to 250 |
| Enclosure Rating | NEMA 4 / IP65 |
| Mounting Type | Wall Mount / Rack Mount |
| Dimensions (L × W × H) | 16 × 12 × 8 in (406 × 305 × 203 mm) |
| Weight | ≈ 12 lb (5.4 kg) |
| Certifications | UL 1741 SA, IEEE 1547, CE |
| Warranty | 5 Years (Limited Manufacturer Warranty) |
| Manufacturer | Chint Power Systems (CPS America) |
Specifications verified from official CPS FlexOM-PP Datasheet (2020).
