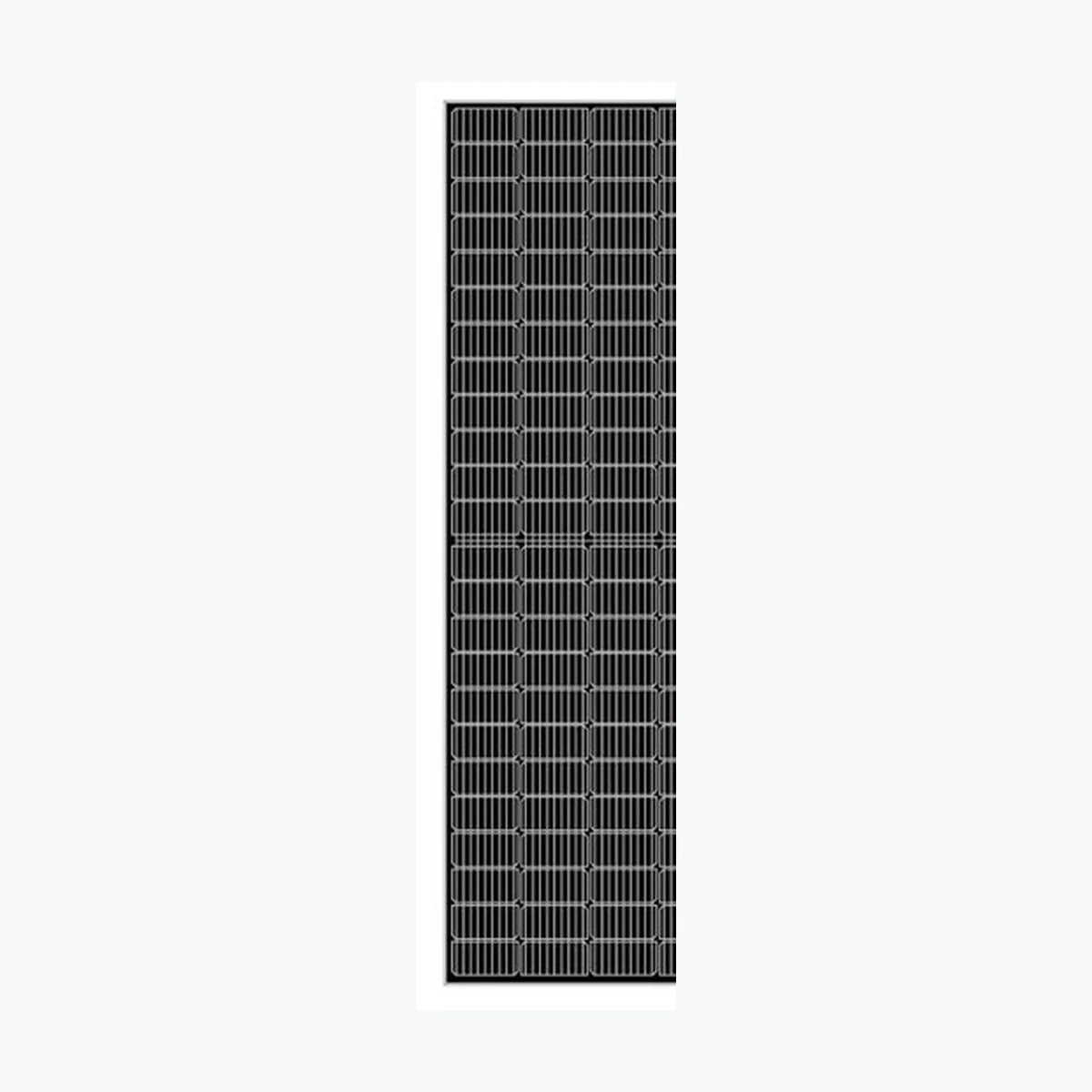

Gamko New Energy 535
Gamko New Energy 535
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-6464
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 535 Product Warranty 12 Years Power Warranty 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 535 Wp Voltage at Maximum Power (Vmpp) 41.8 V Current at Maximum Power (Impp) 12.8 A Open Circuit Voltage (Voc) 49.89 V Short Circuit Current (Isc) 13.69 A Panel Efficiency 20.7 % Maximum Power (Pmax) 405 Wp Voltage at Maximum Power (Vmpp) 39.21 V Current at Maximum Power (Impp) 10.33 A Open Circuit Voltage (Voc) 47.4 V Short Circuit Current (Isc) 10.95 A Temperature 45±2 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Panel Dimension (H/W/D) 2279x1134x30 mm Weight 25 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufac
Technology: PERC
Power Range: 530 ~ 550 Wp
Panel Efficiency: 20.51 ~ 21.28 %
Weight: 25 kg
Seller Name: Nantong Gamko New Energy Co., Ltd.
Country: China -
