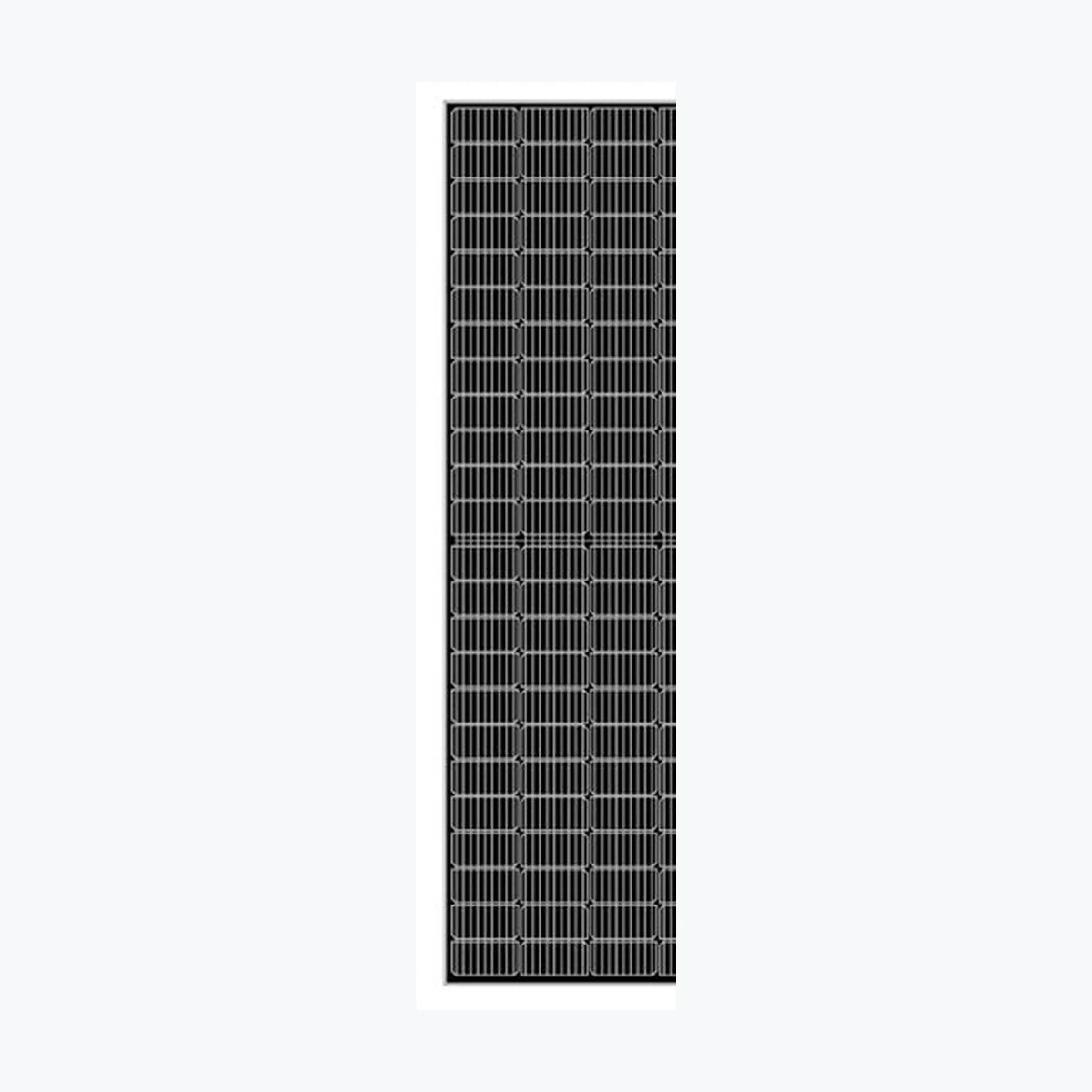

Gamko New Energy 550
Gamko New Energy 550
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-6467
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 550 Product Warranty 12 Years Power Warranty 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 550 Wp Voltage at Maximum Power (Vmpp) 42.28 V Current at Maximum Power (Impp) 13.01 A Open Circuit Voltage (Voc) 50.32 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 21.28 % Maximum Power (Pmax) 417 Wp Voltage at Maximum Power (Vmpp) 39.9 V Current at Maximum Power (Impp) 10.45 A Open Circuit Voltage (Voc) 48.1 V Short Circuit Current (Isc) 11.07 A Temperature 45±2 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Panel Dimension (H/W/D) 2279x1134x30 mm Weight 25 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufa
Technology: PERC
Power Range: 530 ~ 550 Wp
Panel Efficiency: 20.51 ~ 21.28 %
Weight: 25 kg
Seller Name: Nantong Gamko New Energy Co., Ltd.
Country: China -
