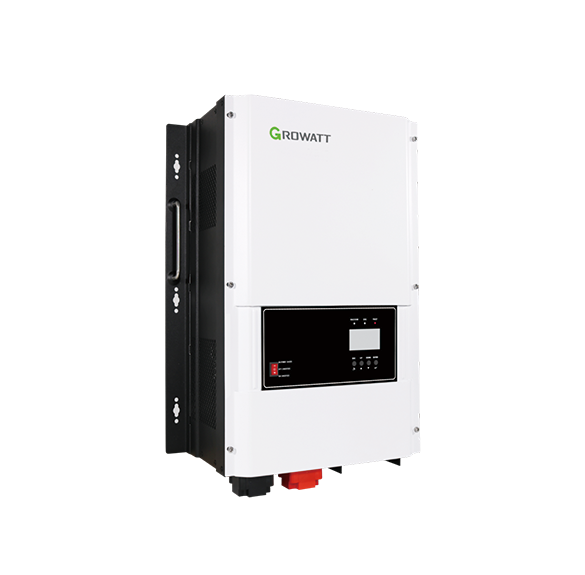

Growatt SPF 12000T DVM-US MPV 12kW Split-Phase Off-Grid Inverter (WiFi-F)
Growatt SPF 12000T DVM-US MPV 12kW Split-Phase Off-Grid Inverter (WiFi-F)
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- SKSL30.0005600
- Unit price
- $196/kW
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.
The Growatt SPF 12000T DVM-US MPV is a 12kW split-phase off-grid inverter with built-in low-frequency pure-copper transformer — 36kW surge, 110-120Vac (L-N) & 220-240Vac (L-L) output.
Key Features
- 12kW split-phase off-grid inverter (UL certified)
- Built-in low-frequency pure copper transformer; 36kW surge
- 48Vdc battery; 110-120Vac (L-N) & 220-240Vac (L-L)
- Integrated MPPT charge controller; output power factor up to 1.0
- Works with PV, battery, diesel generator and utility; lithium/lead-acid/GEL compatible
- WiFi-F module included
Compatibility: Growatt ALP 5.0L LV batteries; third-party 48V batteries
Specifications
| Model | SPF 12000T DVM-US MPV (WIFI-F) |
| Part Number | SKSL30.0005600 |
| Rated Output | 12,000 W |
| Surge | 36,000 W |
| Battery | 48Vdc |
| AC Output | 110-120Vac (L-N) / 220-240Vac (L-L) |
| Transformer | Built-in low-frequency pure copper |
| Certifications | UL1741 |
