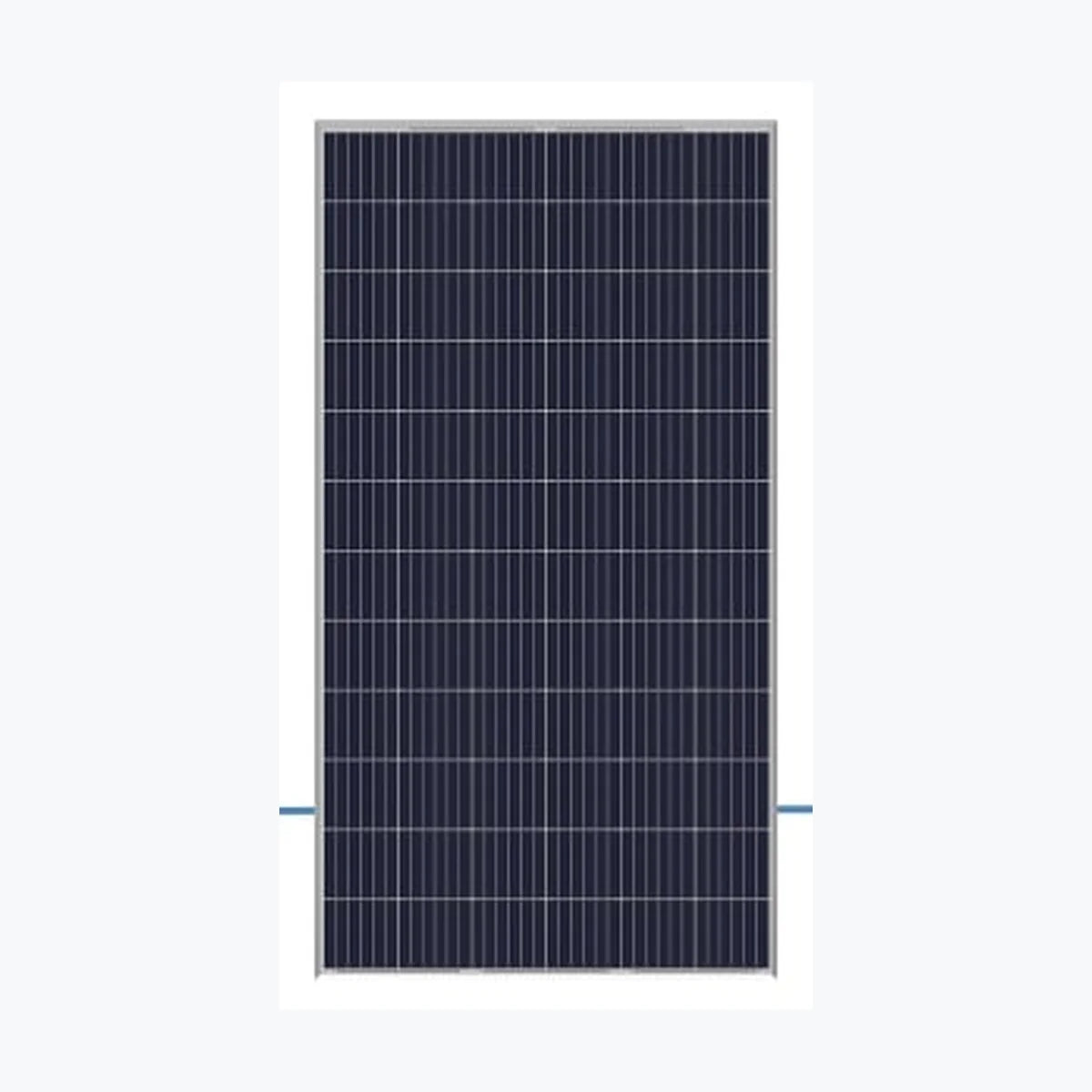

Hiwatt Solar 345
PayPal Pay in 4 interest-free payments of $30.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-8386
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. 345 Product Warranty 12 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 345 Wp Voltage at Maximum Power (Vmpp) 37.92 V Current at Maximum Power (Impp) 9.1 A Open Circuit Voltage (Voc) 46.57 V Short Circuit Current (Isc) 9.65 A Panel Efficiency 17.5 % Maximum Power (Pmax) 256 Wp Voltage at Maximum Power (Vmpp) 35.27 V Current at Maximum Power (Impp) 7.28 A Open Circuit Voltage (Voc) 43.67 V Short Circuit Current (Isc) 7.79 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1979x996x35 mm Weight 21.5 kg Cell Number 72 Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Power Range: 330 ~ 350 Wp
Panel Efficiency: 16.7 ~ 17.8 %
Weight: 21.5 kg
Seller Name: Hiwatt Solar Limited
Country: China
| SKU | PES-SPS-SOL-8386 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
