In Stock

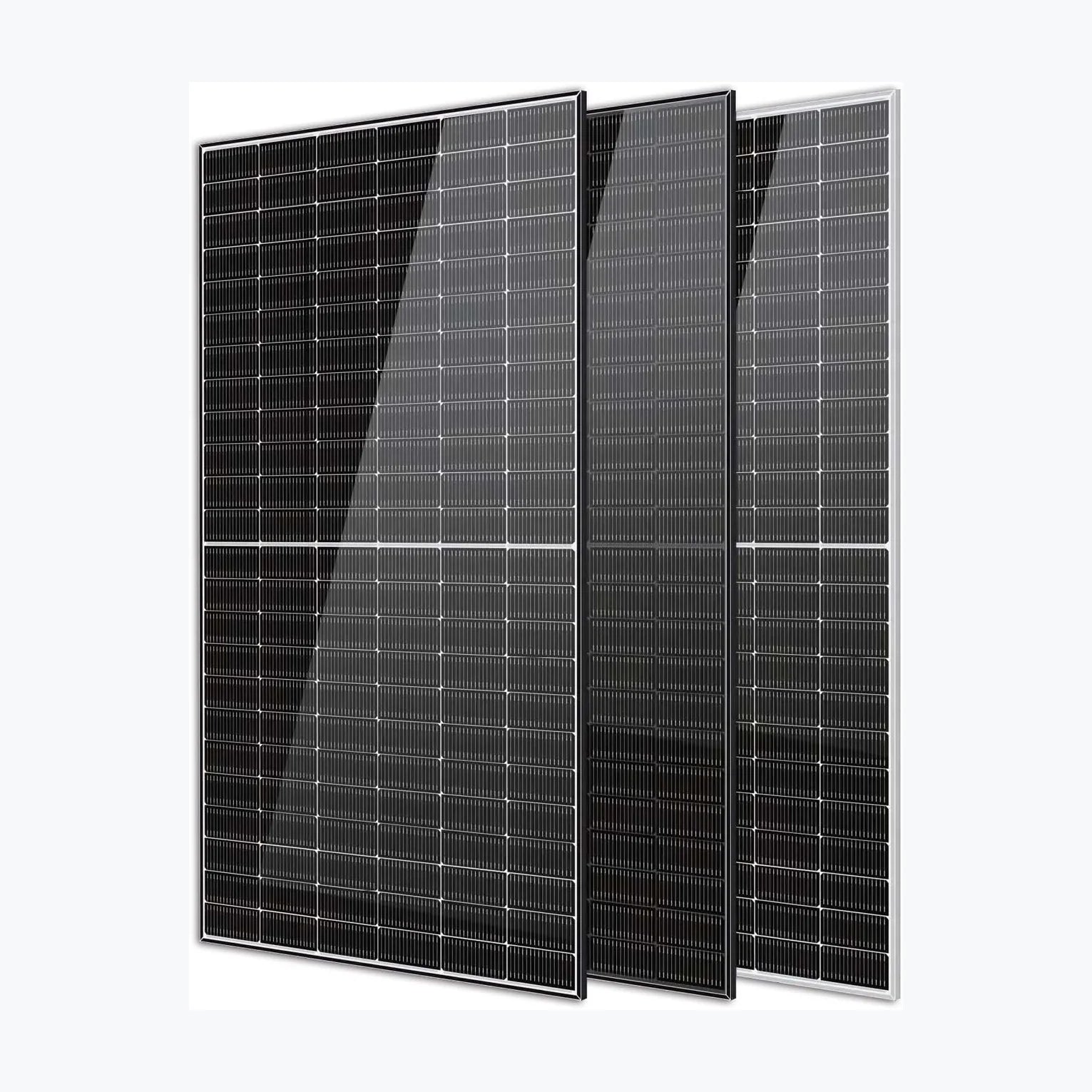

Horay Solar HS645TC-MHD-D
Horay Solar HS645TC-MHD-D
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-8685
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. HS645TC-MHD-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 645 Wp Voltage at Maximum Power (Vmpp) 40.85 V Current at Maximum Power (Impp) 15.79 A Open Circuit Voltage (Voc) 48.16 V Short Circuit Current (Isc) 16.81 A Panel Efficiency 23.1 % Maximum Power (Pmax) 491 Wp Current at Maximum Power (Impp) 12.03 A Short Circuit Current (Isc) 12.81 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 34.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Downl
Technology: Bifacial, N-type
Power Range: 630 ~ 650 Wp
Panel Efficiency: 22.5 ~ 23.3 %
Weight: 34.5 kg
Seller Name: Horay Solar Co., Ltd
Country: China -
