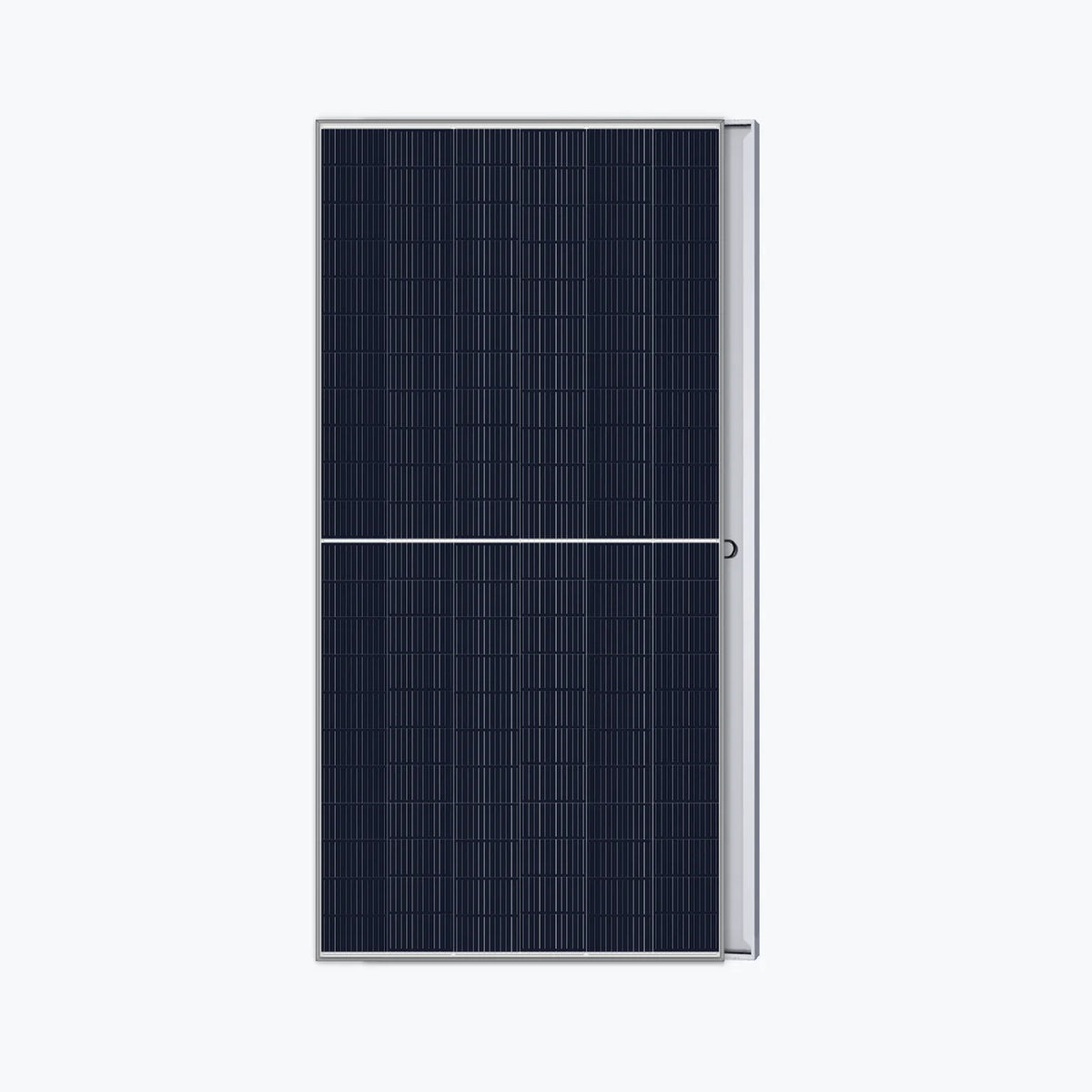

HY SOLAR 615
HY SOLAR 615
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-7856
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 615 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 615 Wp Voltage at Maximum Power (Vmpp) 40.7 V Current at Maximum Power (Impp) 15.12 A Open Circuit Voltage (Voc) 48.7 V Short Circuit Current (Isc) 15.92 A Panel Efficiency 22.8 % Maximum Power (Pmax) 469.1 Wp Voltage at Maximum Power (Vmpp) 38.2 V Current at Maximum Power (Impp) 12.28 A Open Circuit Voltage (Voc) 46.1 V Short Circuit Current (Isc) 12.89 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc +0.043 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.4 kg Cell Size 210×182.3 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 610 ~ 630 Wp
Panel Efficiency: 22.6 ~ 23.3 %
Weight: 32.4 kg
Seller: Hongyuan Green Energy Co., Ltd.
Country: China -
