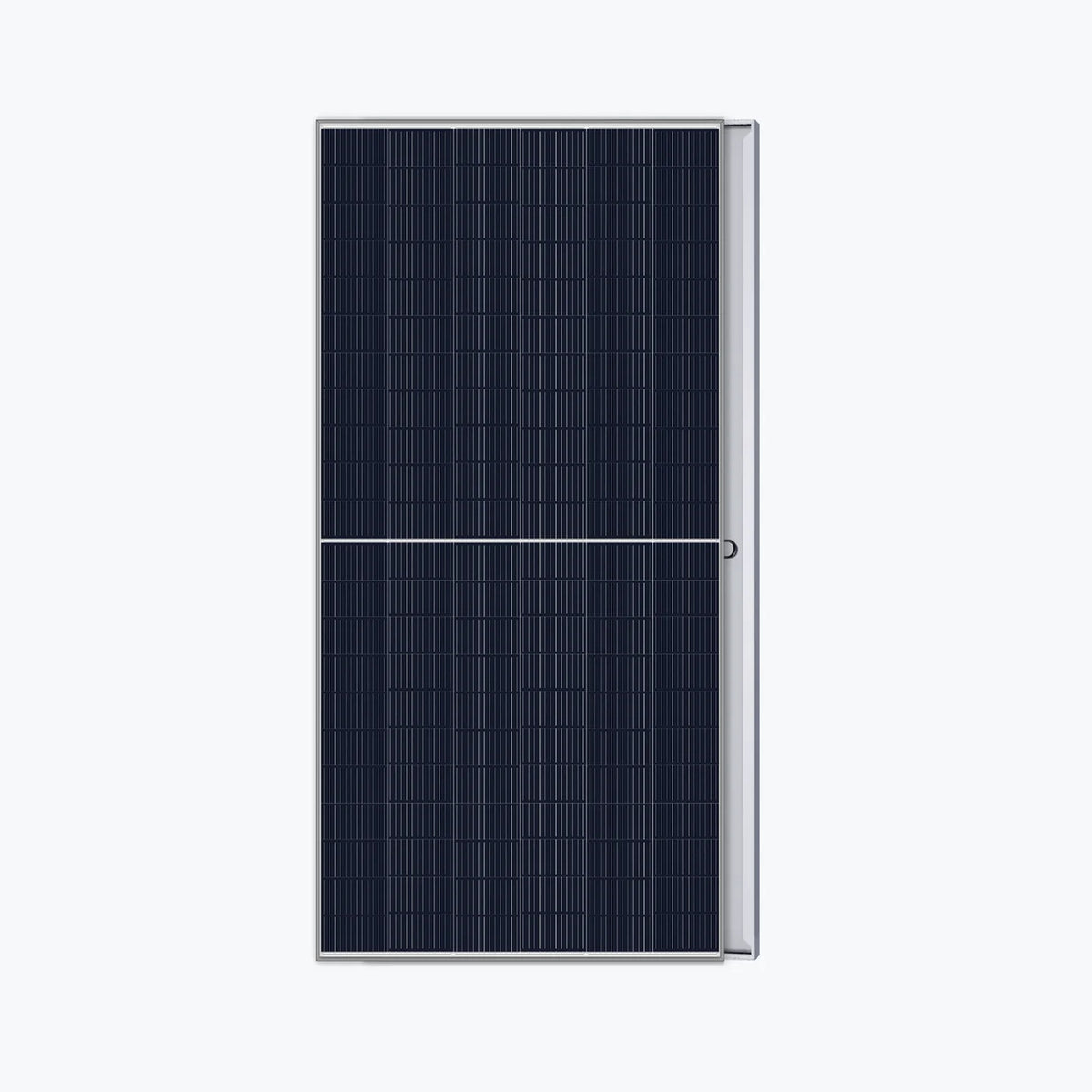

HY SOLAR 625

HY SOLAR 625

$5.00 USD
$5.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-7858
  • Container price: $59.40 USD
  • Container qty: 720
  • Pallet price: $2.80 USD
  • Pallet qty: 30
  • Unit price: $0.11 USD
View full details

Product Description

  • Type Monocrystalline Model No. 625 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 41.1 V Current at Maximum Power (Impp) 15.21 A Open Circuit Voltage (Voc) 49.1 V Short Circuit Current (Isc) 16 A Panel Efficiency 23.1 % Maximum Power (Pmax) 477.1 Wp Voltage at Maximum Power (Vmpp) 38.6 V Current at Maximum Power (Impp) 12.36 A Open Circuit Voltage (Voc) 46.5 V Short Circuit Current (Isc) 12.97 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc +0.043 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.4 kg Cell Size 210×182.3 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

    Technology: Bifacial, TOPCon, N-type
    Power Range: 610 ~ 630 Wp
    Panel Efficiency: 22.6 ~ 23.3 %
    Weight: 32.4 kg
    Seller: Hongyuan Green Energy Co., Ltd.
    Country: China
