1 0

    Out of Stock

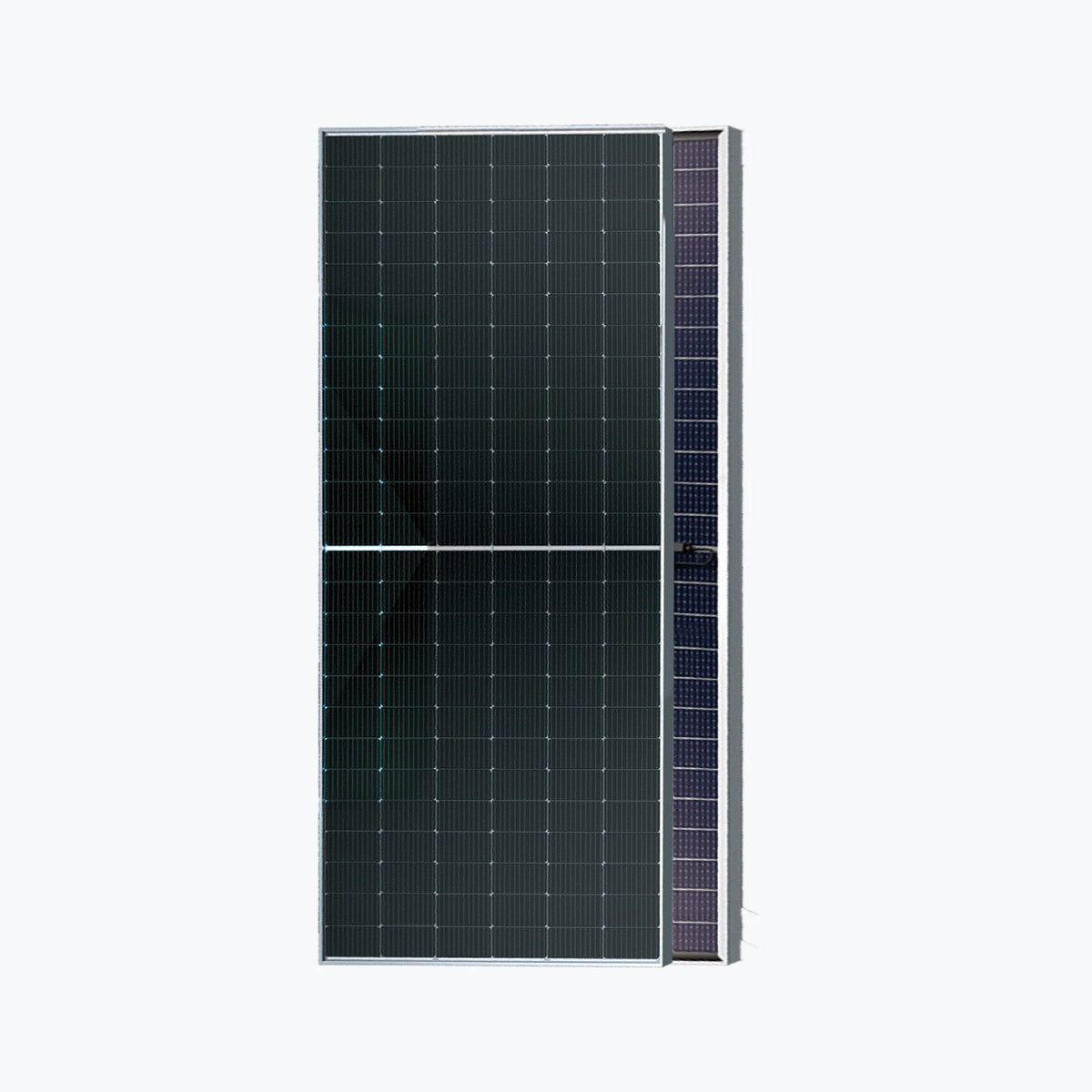

    HY SOLAR 650

    HY SOLAR 650

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-7863
    • Container price: $59.40 USD
    • Container qty: 720
    • Pallet price: $2.80 USD
    • Pallet qty: 30
    • Unit price: $0.11 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 650 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 650 Wp Voltage at Maximum Power (Vmpp) 47.35 V Current at Maximum Power (Impp) 13.73 A Open Circuit Voltage (Voc) 57.21 V Short Circuit Current (Isc) 14.29 A Panel Efficiency 23.3 % Maximum Power (Pmax) 483.9 Wp Voltage at Maximum Power (Vmpp) 43.99 V Current at Maximum Power (Impp) 11 A Open Circuit Voltage (Voc) 54.34 V Short Circuit Current (Isc) 11.46 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.043 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 34.7 kg Cell Size 183.75×182.2 mm Cell Number 156 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3

      Technology: Bifacial, TOPCon, N-type
      Power Range: 630 ~ 655 Wp
      Panel Efficiency: 22.5 ~ 23.4 %
      Weight: 34.7 kg
      Seller Name: Hongyuan Green Energy Co., Ltd.
      Country: China
