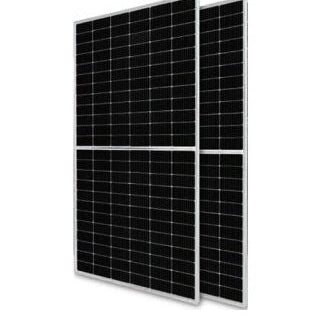

• Two solar panels side by side on a white background
1 1

In Stock

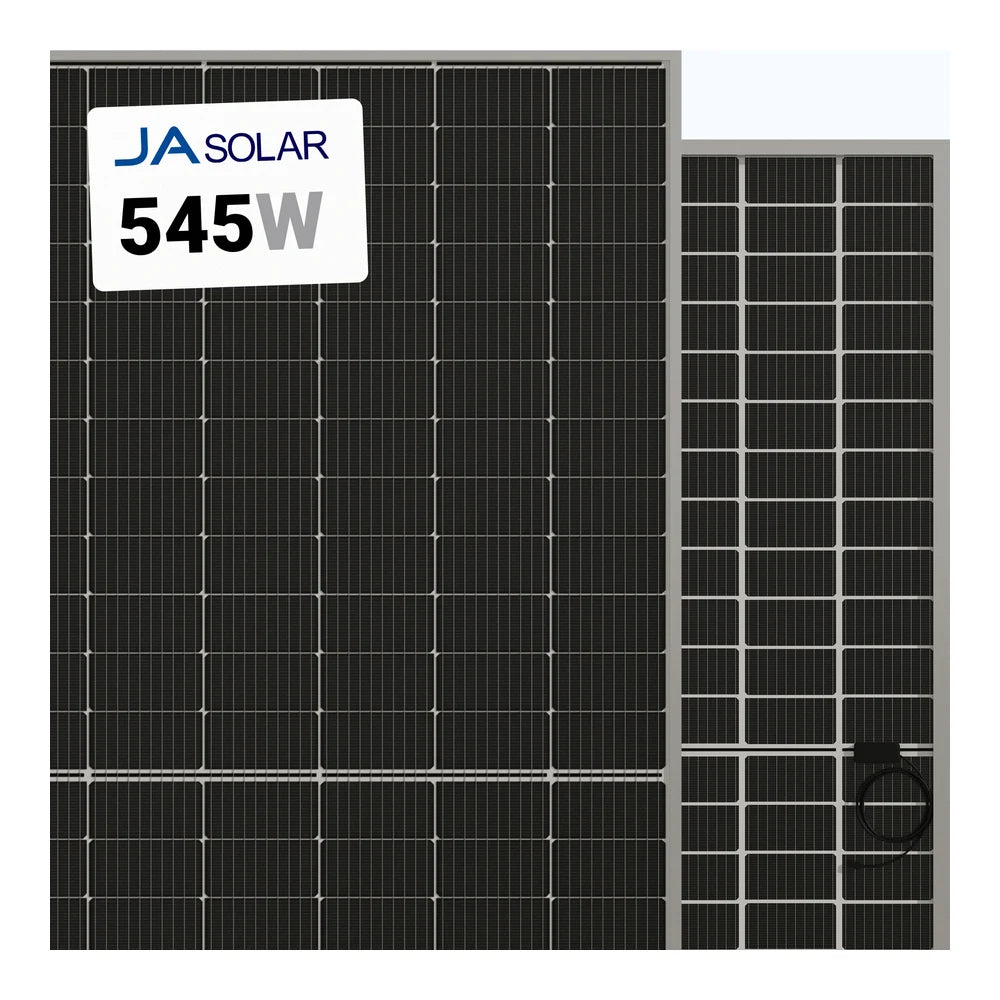

JA Solar 545 W Solar Panel – JAM72D30‑545/MB, 144‑cell Bifacial

JA Solar 545 W Solar Panel – JAM72D30‑545/MB, 144‑cell Bifacial

$234.63 USD
$234.63 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0219
  • Documents:

    Datasheet
  • Height: 1.38
  • Length: 89.69
  • Width: 44.65
View full details

Product Description

  • JA Solar 545W solar panel – JAM72D30‑545/MB

    The JA Solar 545W solar panel from the DeepBlue 3.0 line pairs PERC
    half‑cut cells with bifacial double‑glass construction for superior power and
    longevity.

    Key Features

    Enhanced rear‑side gain

    Bifaciality up to 80 % lets the
    JA Solar 545W solar panel harvest reflected light for up to 30 % more
    energy.



    Specification



    JA Solar 545W solar panel – technical data
    Rated power (Pmax) 545 W
    Module efficiency 21.1 %
    Open‑circuit voltage (Voc) 49.75 V
    Short‑circuit current (Isc) 13.93 A
    Cell type & count Mono PERC, 144 half‑cut
    Dimensions 89.69 × 44.65 × 1.38 in
    Weight 70.1 lb
    Max system voltage 1 500 V DC
    Load ratings 5 400 Pa snow / 2 400 Pa wind
    Warranty 12‑yr product, 30‑yr power



    Installation & Warranty


    With a 30‑year linear output warranty, the
    JA Solar 545W solar panel guarantees at least 84.95 % of initial power
    after three decades in service.
