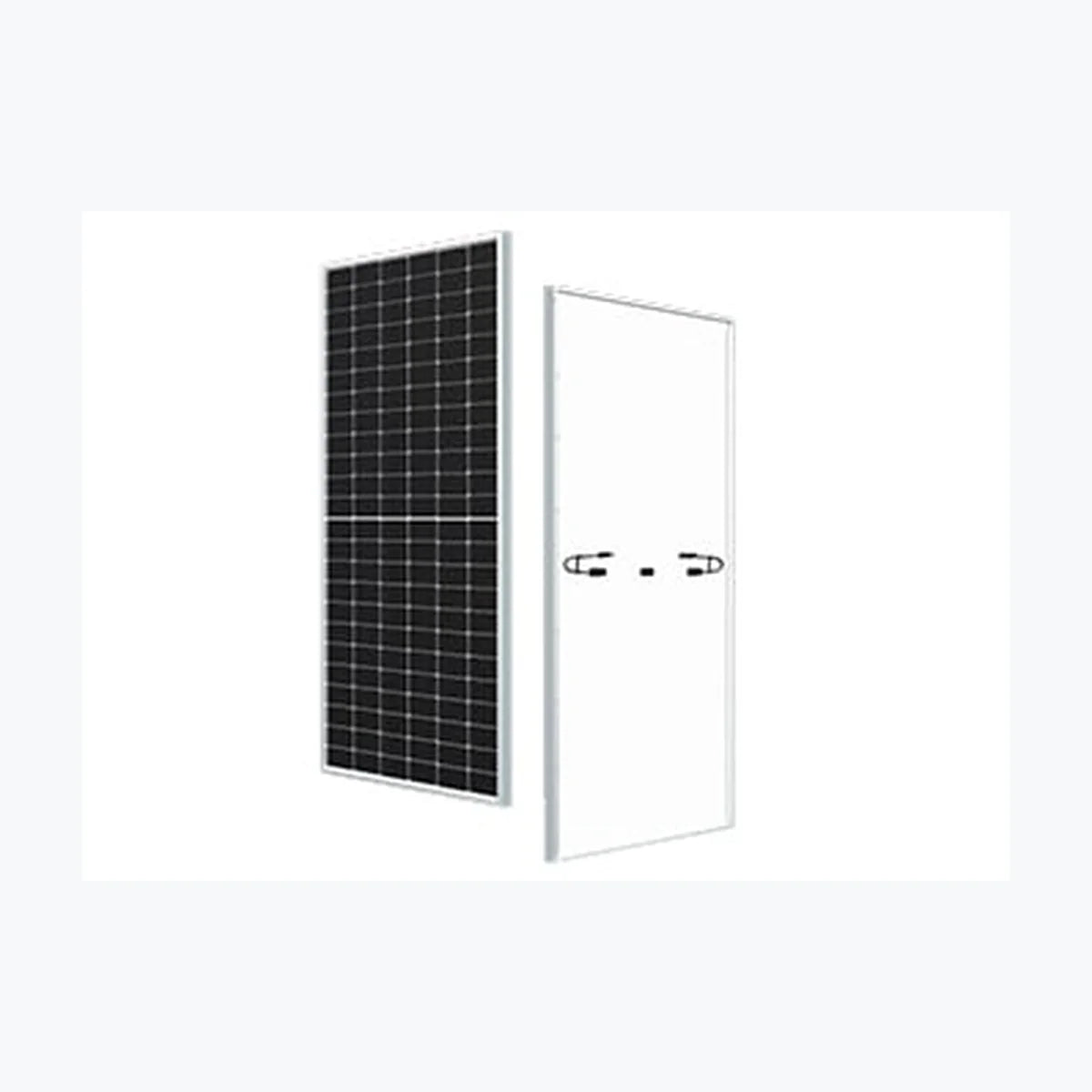

JS Solar 545

JS Solar 545

$5.00 USD
$5.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-9775
  • Container price: $54.00 USD
  • Container qty: 720
  • Pallet price: $2.55 USD
  • Pallet qty: 30
  • Unit price: $0.10 USD
View full details

Product Description

  • Type Monocrystalline Model No. 545 Product Warranty 25 Years Power Warranty 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 41.8 V Current at Maximum Power (Impp) 13.04 A Open Circuit Voltage (Voc) 49.7 V Short Circuit Current (Isc) 13.91 A Panel Efficiency 21.08 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 38.45 V Current at Maximum Power (Impp) 10.64 A Open Circuit Voltage (Voc) 46.35 V Short Circuit Current (Isc) 11.24 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.27 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 26.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

    Power Range: 525 ~ 550 Wp
    Panel Efficiency: 20.89 ~ 21.28 %
    Weight: 26.5 kg
    Seller: Yixing JS Solar Co., Ltd
    Country: China
