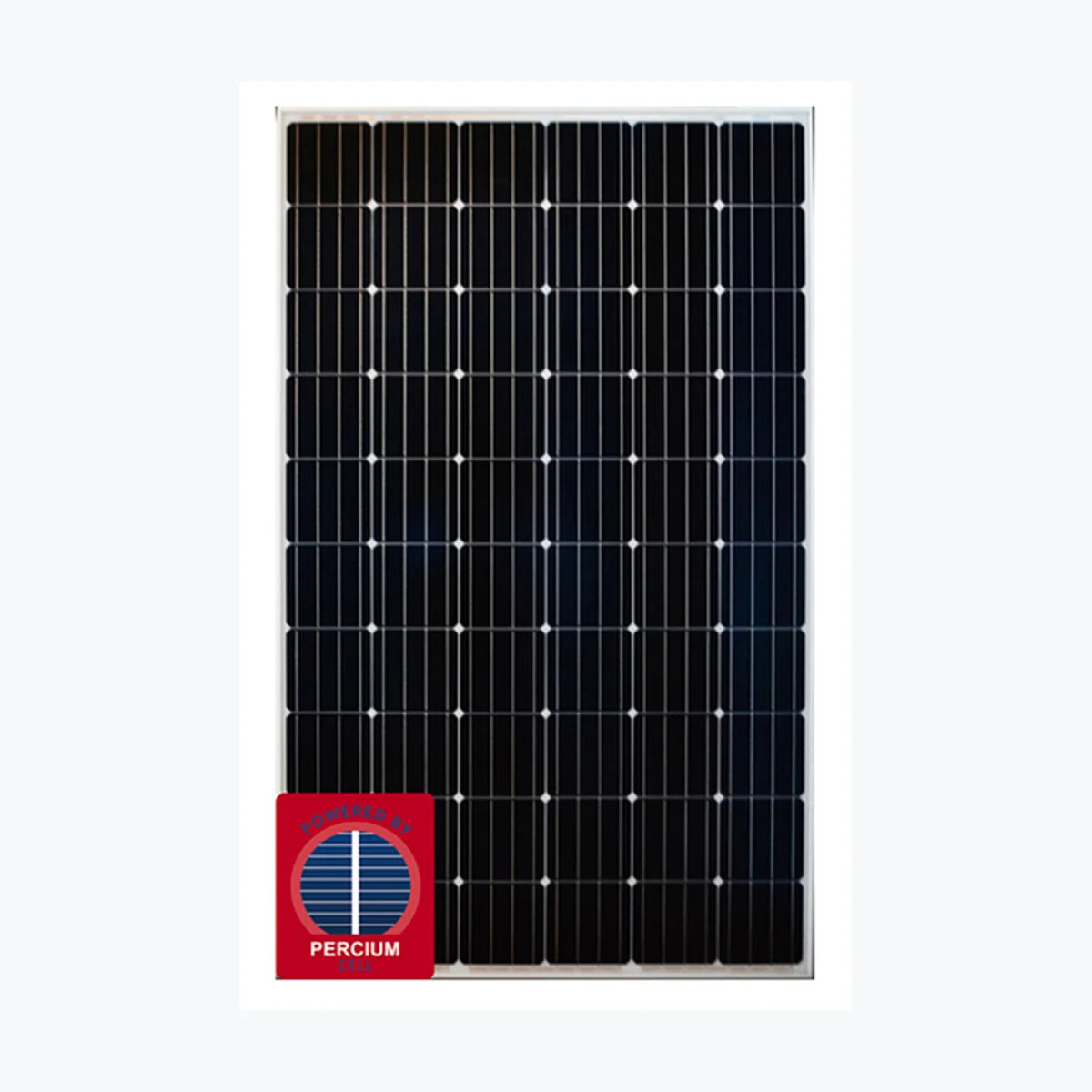

JS Solar JS315M
PayPal Pay in 4 interest-free payments of $27.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-9801
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JS315M Product Warranty 10 Years Power Warranty 25 Years of 80.2 % Total Degradation Rate ⏳ 0.79 % Maximum Power (Pmax) 315 Wp Voltage at Maximum Power (Vmpp) 33.55 V Current at Maximum Power (Impp) 9.39 A Open Circuit Voltage (Voc) 39.33 V Short Circuit Current (Isc) 9.56 A Panel Efficiency 19.36 % Temperature 45±2 °C Temperature Coefficient of Pmax -0.42 %/°C Temperature Coefficient of Voc -0.32 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1640x992x35 mm Weight 18 kg Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1000 mm Download Manufacturer's PDF Datasheet
Power Range: 305 ~ 320 Wp
Panel Efficiency: 18.75 ~ 19.67 %
Weight: 18 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9801 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
