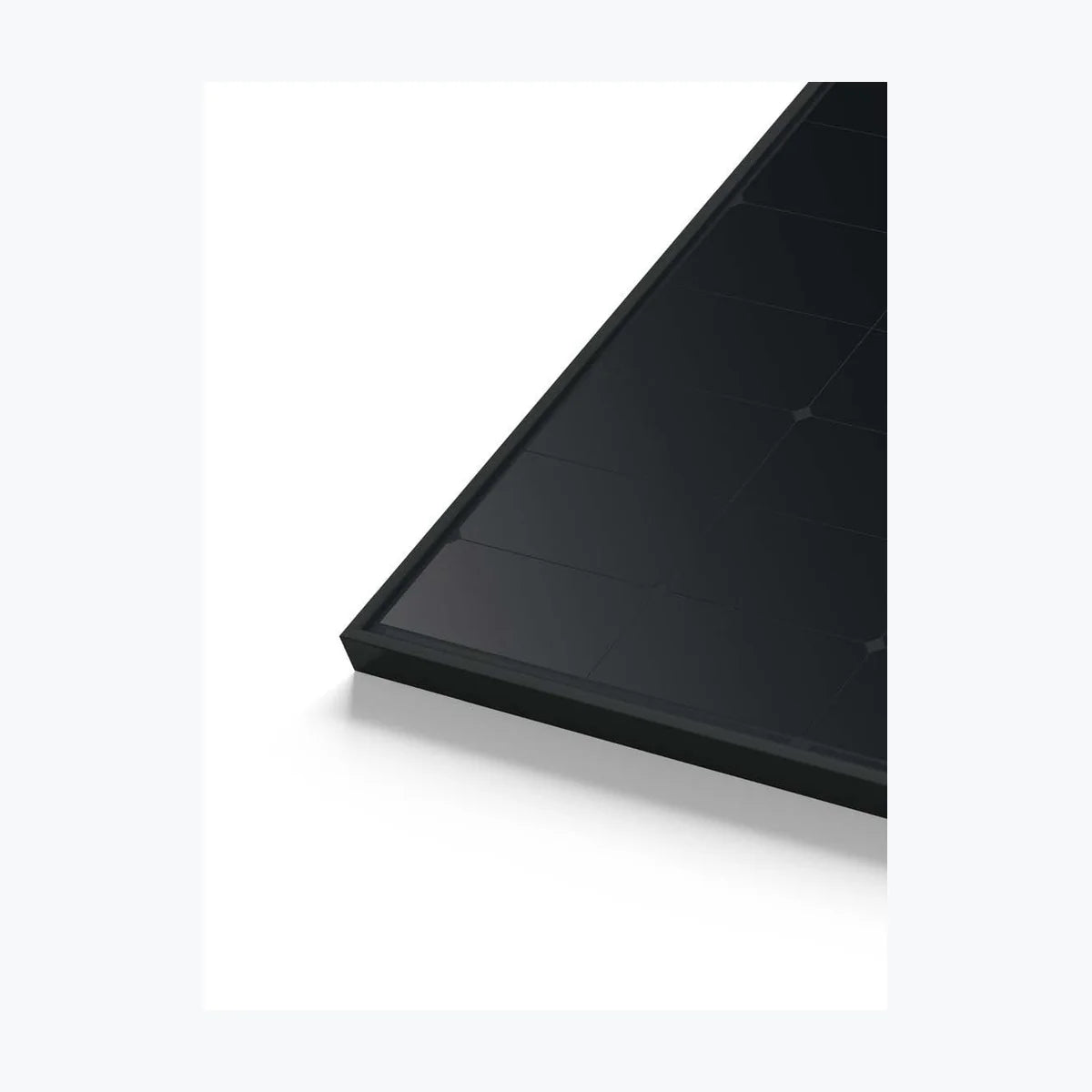

• JS Solar JS430M108HBC
1 1

Out of Stock

JS Solar JS430M108HBC

JS Solar JS430M108HBC

$5.00 USD
$5.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-9840
  • Container price: $54.00 USD
  • Container qty: 720
  • Pallet price: $2.55 USD
  • Pallet qty: 30
  • Unit price: $0.10 USD
View full details

Product Description

  • Type Monocrystalline Model No. JS430M108HBC Product Warranty 15 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 33.16 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 39.43 V Short Circuit Current (Isc) 14 A Panel Efficiency 22 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 30.26 V Current at Maximum Power (Impp) 10.62 A Open Circuit Voltage (Voc) 37.02 V Short Circuit Current (Isc) 11.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.8 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

    Power Range: 410 ~ 430 Wp
    Panel Efficiency: 21 ~ 22 %
    Weight: 20.8 kg
    Seller: Yixing JS Solar Co., Ltd
    Country: China
