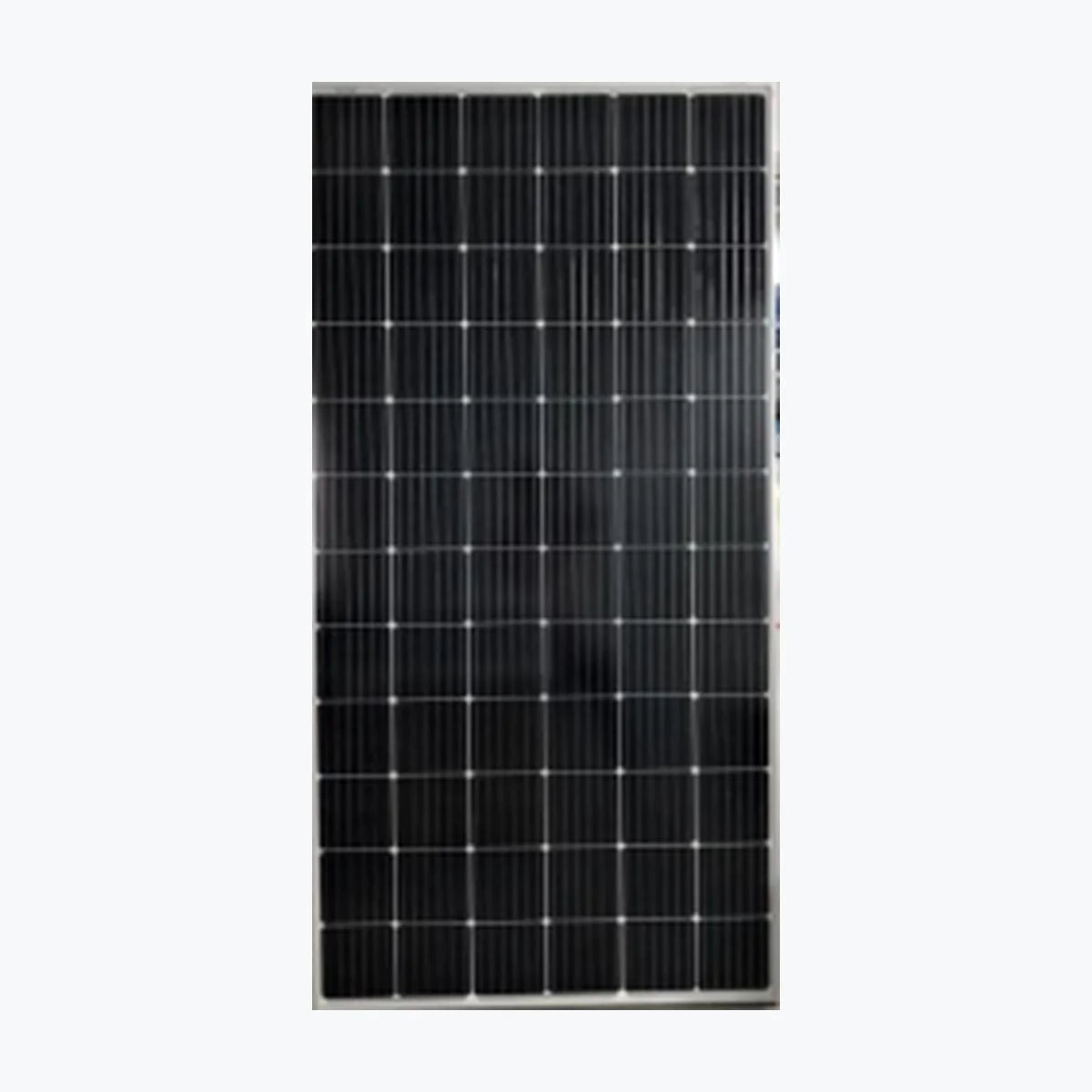

KHK Solar KHK72-156M/340W
EOL — While Supplies LastPayPal Pay in 4 interest-free payments of $29.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-10994
- Unit price
- $0.35/W
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. KHK72-156M/340W Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 37.7 V Current at Maximum Power (Impp) 9.02 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 9.5 A Panel Efficiency 17.5 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.416 %/°C Temperature Coefficient of Voc -0.309 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1956x992x40 mm Weight 21.5 kg Cell Size 156.75×156.75 mm Cell Number 72 Glass Type Tempered Glass Thickness 3.2 mm Cable Length 900 mm Download Manufacturer's PDF Datasheet
Power Range: 325 ~ 345 Wp
Panel Efficiency: 16.7 ~ 17.8 %
Weight: 21.5 kg
Seller Name: Khk Comercial Company Limited
Country: China
| SKU | PES-SPS-SOL-10994 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Lifecycle status | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
