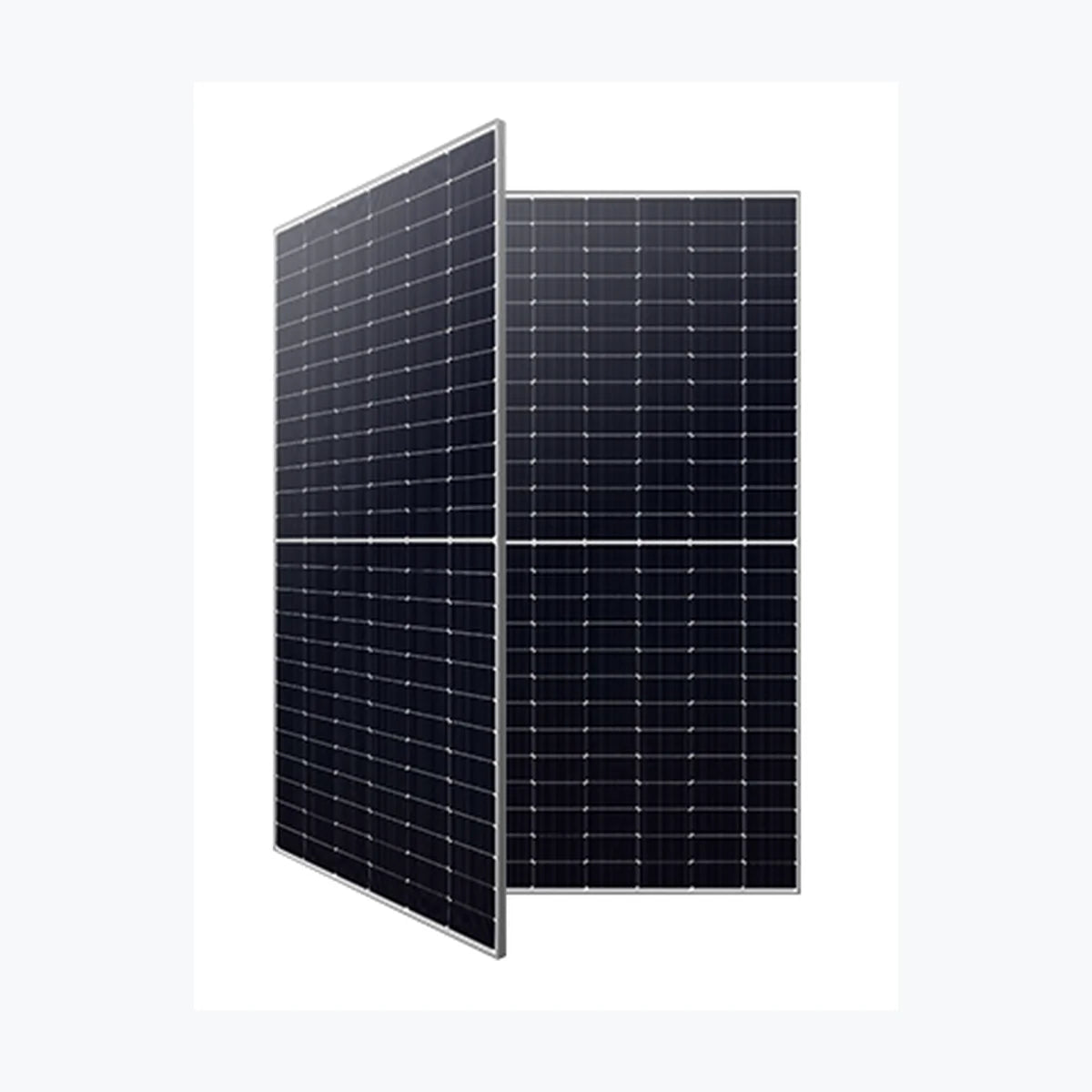

    Lu'an Solar JKL156-B-595MH

    Lu'an Solar JKL156-B-595MH

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-11837
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. JKL156-B-595MH Product Warranty 15 Years Power Warranty 10 Years of 93.05 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 595 Wp Voltage at Maximum Power (Vmpp) 45.88 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 54 V Short Circuit Current (Isc) 13.87 A Panel Efficiency 23.29 % Maximum Power (Pmax) 453 Wp Voltage at Maximum Power (Vmpp) 41.91 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 50.13 V Short Circuit Current (Isc) 11.43 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.051 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 29 kg Cell Number 156 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Jun

      Technology: PERC
      Power Range: 580 ~ 600 Wp
      Panel Efficiency: 22.75 ~ 23.46 %
      Weight: 29 kg
      Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
      Country: China
