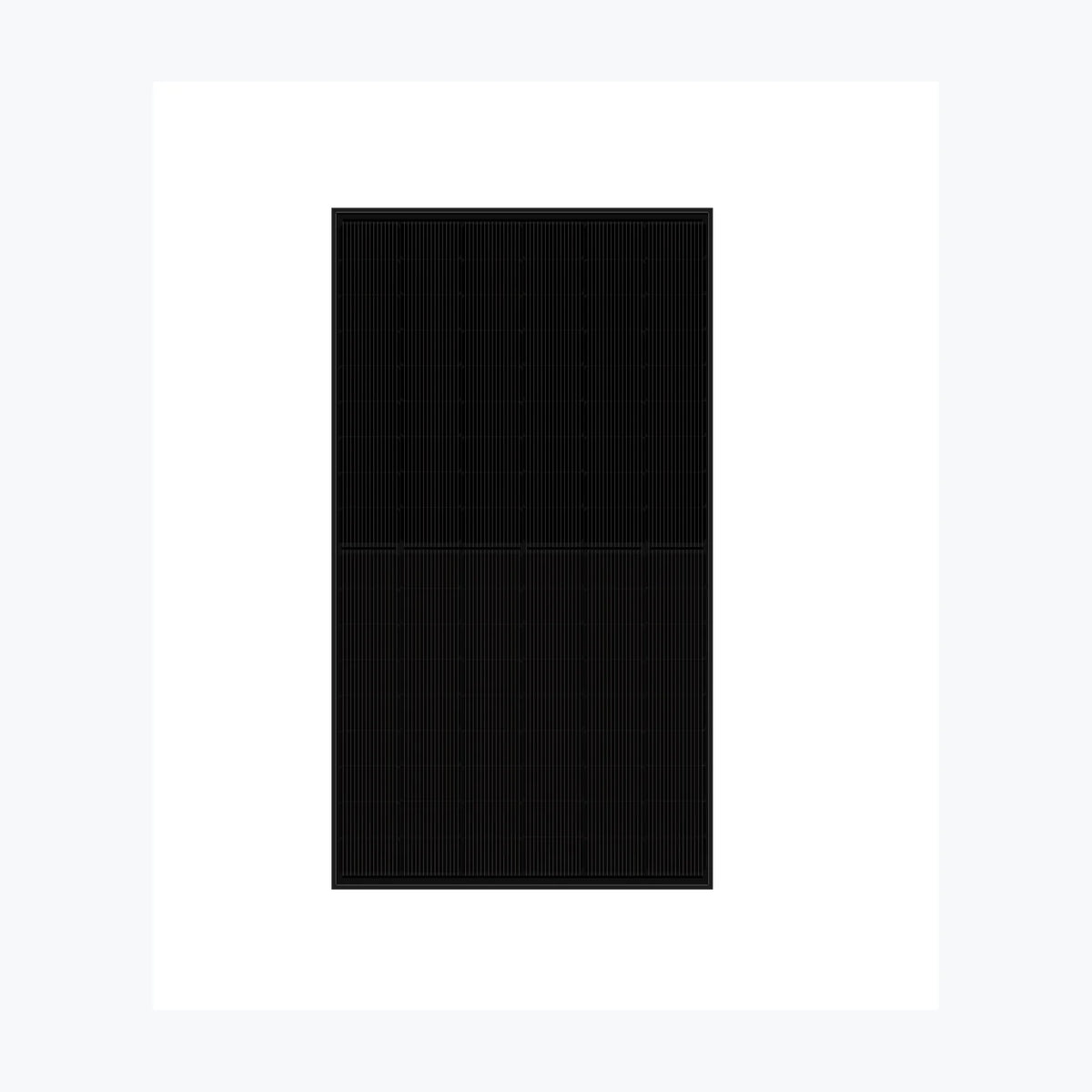

    Luxra 1

    Luxra 1

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12003
    • Container price: $97.20 USD
    • Container qty: 720
    • Pallet price: $4.59 USD
    • Pallet qty: 30
    • Unit price: $0.18 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 1 Product Warranty 30 Years Power Warranty 30 Years of 87.40 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 33.33 V Current at Maximum Power (Impp) 15 A Open Circuit Voltage (Voc) 40.07 V Short Circuit Current (Isc) 15.9 A Panel Efficiency 22.9 % Maximum Power (Pmax) 381 Wp Voltage at Maximum Power (Vmpp) 31.32 V Current at Maximum Power (Impp) 12.16 A Open Circuit Voltage (Voc) 38.06 V Short Circuit Current (Isc) 12.79 A Temperature 41±3 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1961x1134x30 mm Weight 23.7 kg Cell Number 54 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 m

      Technology: Bifacial, TOPCon, N-type
      Power Range: 500 Wp
      Panel Efficiency: 22.90%
      Weight: 23.7 kg
      Seller Name: Swiss Luxra Holding AG
      Country: Switzerland
