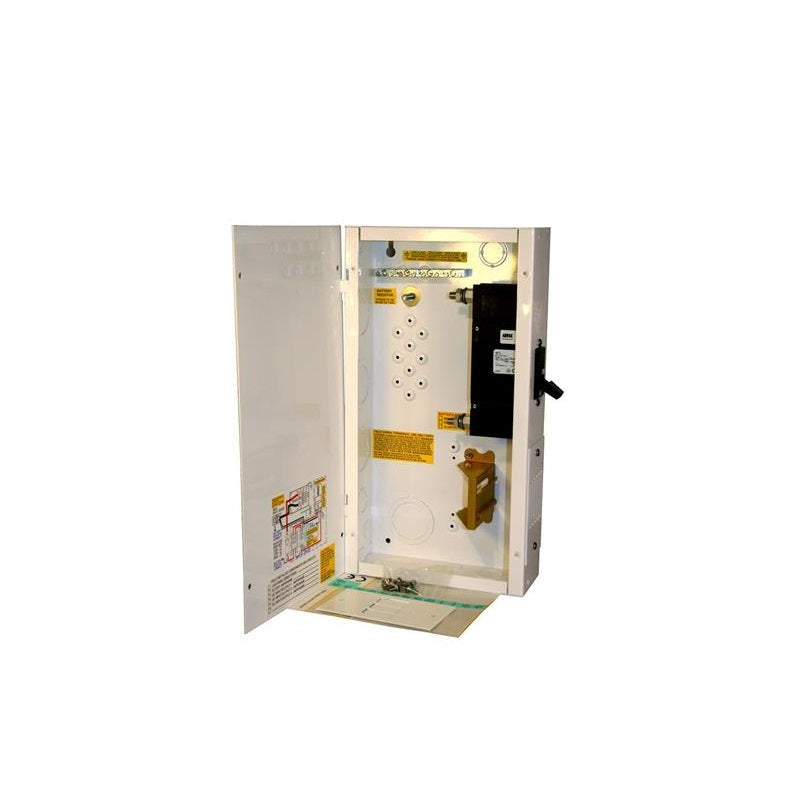

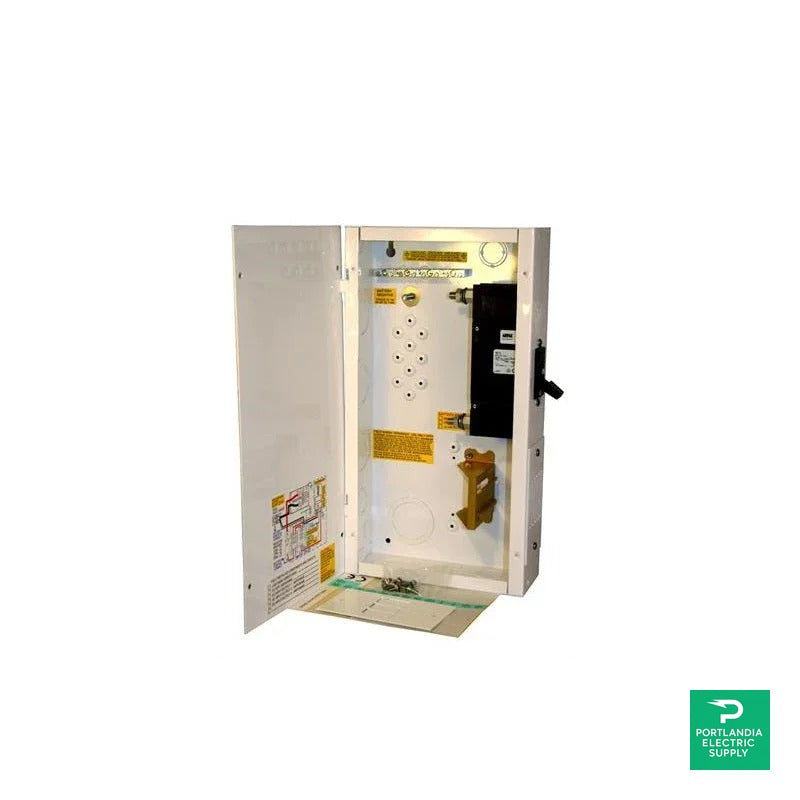

MidNite Solar 250A 125Vdc Mini DC Disconnect Box - MNDC250-X2

The MidNite Solar MNDC250-X2 is a robust and reliable disconnect box used widely in residential and commercial solar installations. Designed for high efficiency, it supports secure and effective management of solar power, ensuring optimal performance of your renewable energy system. With built-in safety features, it safeguards both the installation and users from potential electrical hazards.

Product Features

Hinged Door Accessibility

Featuring a hinged door, the MNDC250-X2 provides easy access to the internal electrical circuits, facilitating straightforward maintenance and modification when needed.

Inverter Breakers Included

Equipped with 125, 175, or 250 amp inverter breakers, this disconnect box ensures reliable protection and efficient operation of your solar power systems.

Versatile Din Rails

The system is integrated with din rails, accommodating various DC circuits, including PV inputs and outputs, DC-GFP, and other essential components.

Ground Bus Bar

Incorporating a ground bus bar with 14 poles, the MNDC250-X2 maintains safe grounding essential for the overall safety and functionality of the setup.

Ample Knockouts for Wiring

Designed with multiple knockouts for inverter and battery cables, the box ensures flexible and straightforward installation, adapting to diverse solar configurations.

How It Works

The MNDC250-X2 functions as a vital disconnect switch that manages solar power distribution and provides safety through its built-in components tailored for photovoltaic systems.

Integrated Breakers

These breakers prevent overload by disconnecting power when current levels exceed safe thresholds, ensuring system longevity.

Secure Shunt Placement

A designated space for mounting a 500 amp shunt helps monitor energy flow for precise system management.

Comprehensive Protection

This device offers surge protection and secure connections to safeguard all connected electrical components from damage due to electrical surges.

Specifications
