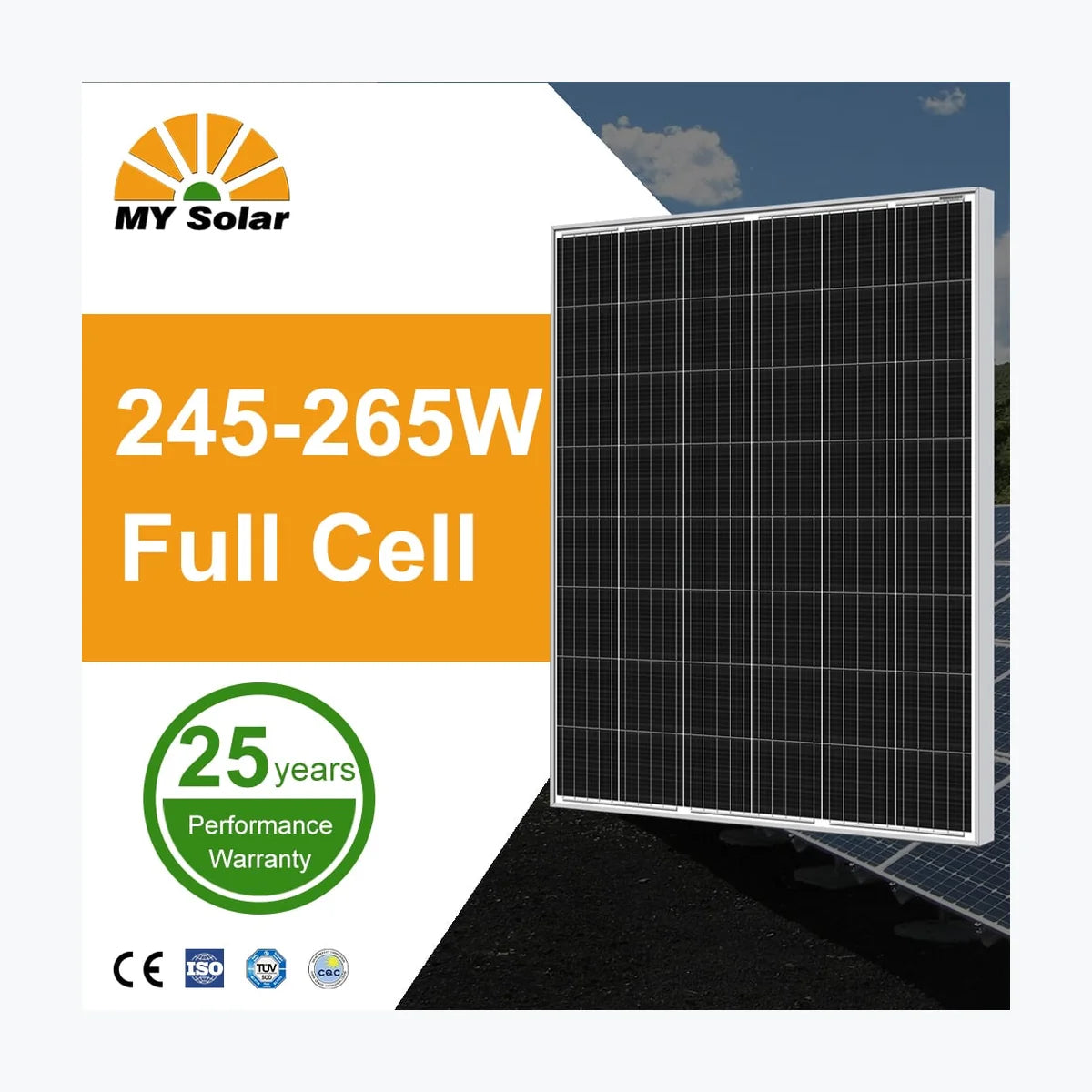

MY Solar MY-M3/48-245
MY Solar MY-M3/48-245
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12175
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M3/48-245 Product Warranty 25 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 245 Wp Voltage at Maximum Power (Vmpp) 25.9 V Current at Maximum Power (Impp) 9.46 A Open Circuit Voltage (Voc) 31.9 V Short Circuit Current (Isc) 9.92 A Panel Efficiency 18.3 % Maximum Power (Pmax) 180.3 Wp Voltage at Maximum Power (Vmpp) 24.1 V Current at Maximum Power (Impp) 7.48 A Open Circuit Voltage (Voc) 29.4 V Short Circuit Current (Isc) 7.98 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1340x1000x35 mm Weight 15.2 kg Cell Size 158.75×158.75 mm Cell Number 48 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Man
Power Range: 245 ~ 265 Wp
Panel Efficiency: 18.3 ~ 19.8 %
Weight: 15.2 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
