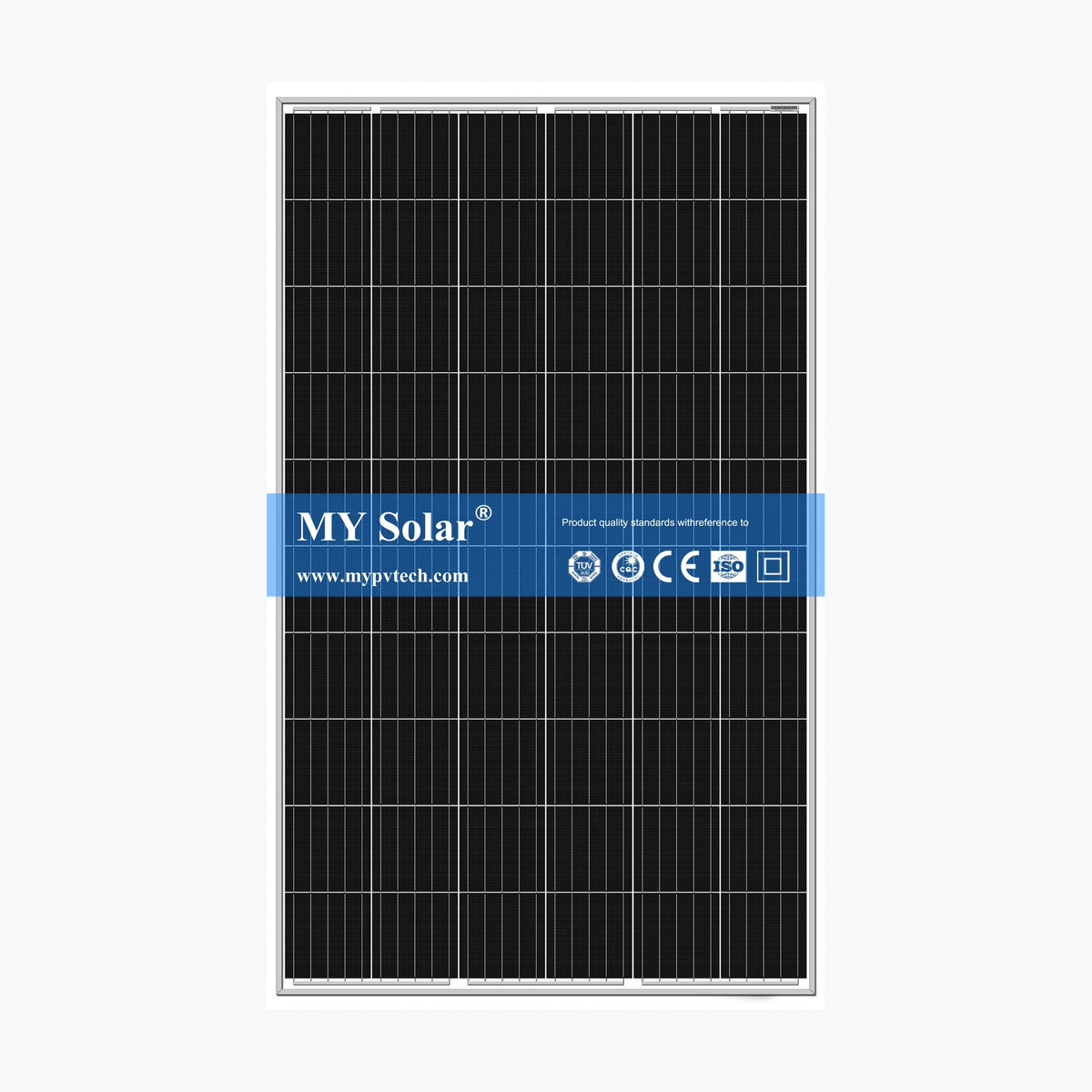

MY Solar MY-M3/60-320
MY Solar MY-M3/60-320
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12181
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MY-M3/60-320 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 33.4 V Current at Maximum Power (Impp) 9.59 A Open Circuit Voltage (Voc) 40.9 V Short Circuit Current (Isc) 10.15 A Panel Efficiency 19.18 % Maximum Power (Pmax) 239 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 7.62 A Open Circuit Voltage (Voc) 37.8 V Short Circuit Current (Isc) 8.44 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1666x1000x35 mm Weight 19 kg Cell Size 158.75×158.75 mm Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class I
Power Range: 315 ~ 335 Wp
Panel Efficiency: 18.88 ~ 20.08 %
Weight: 19 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
