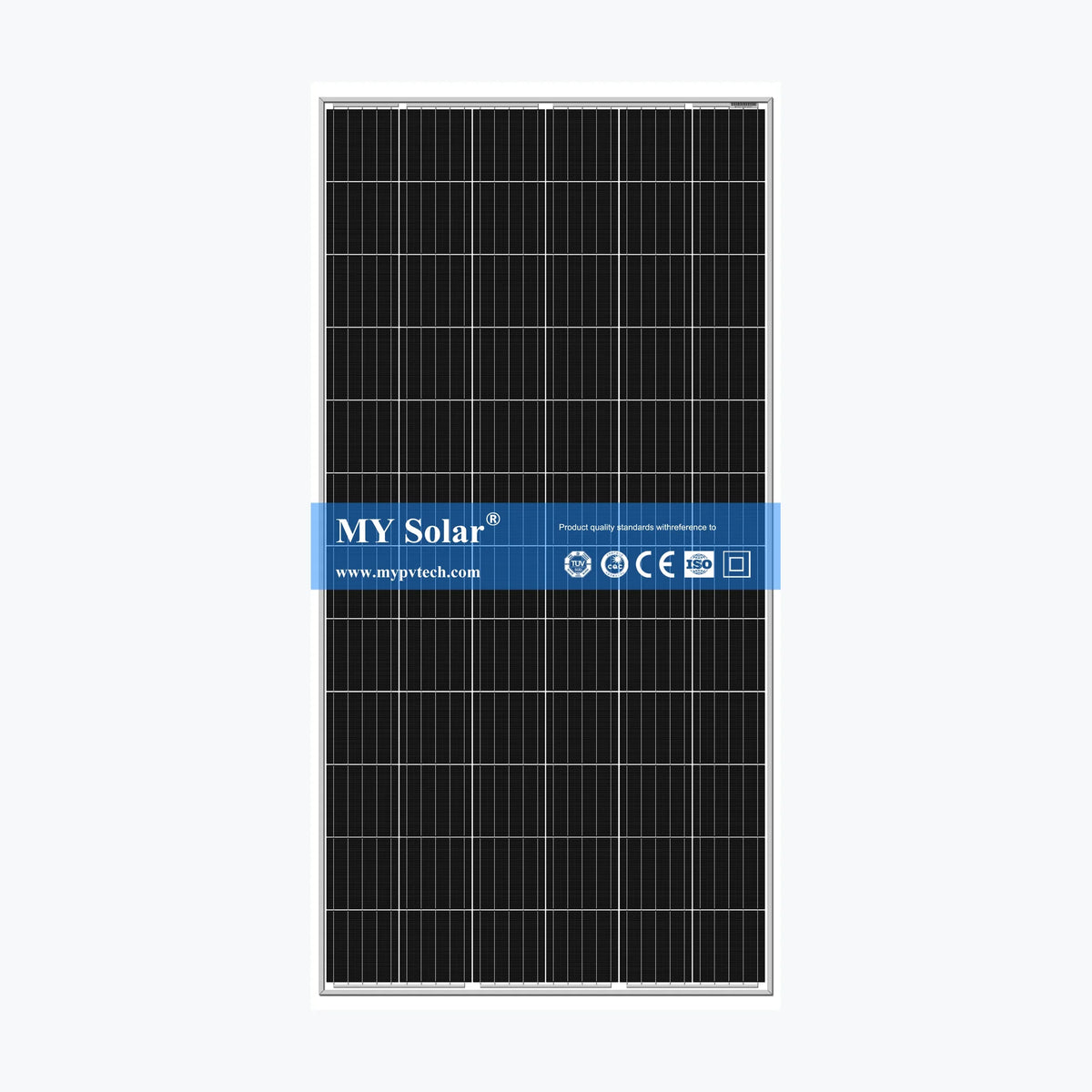

MY Solar MYM3072-380
MY Solar MYM3072-380
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12222
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. MYM3072-380 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 380 Wp Voltage at Maximum Power (Vmpp) 40.5 V Current at Maximum Power (Impp) 9.39 A Open Circuit Voltage (Voc) 48.9 V Short Circuit Current (Isc) 9.75 A Panel Efficiency 19.16 % Maximum Power (Pmax) 286 Wp Voltage at Maximum Power (Vmpp) 38.6 V Current at Maximum Power (Impp) 7.42 A Open Circuit Voltage (Voc) 47.5 V Short Circuit Current (Isc) 7.88 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1980x1000x35 mm Weight 22.3 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manuf
Power Range: 380 ~ 400 Wp
Panel Efficiency: 19.16 ~ 20.17 %
Weight: 22.3 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
