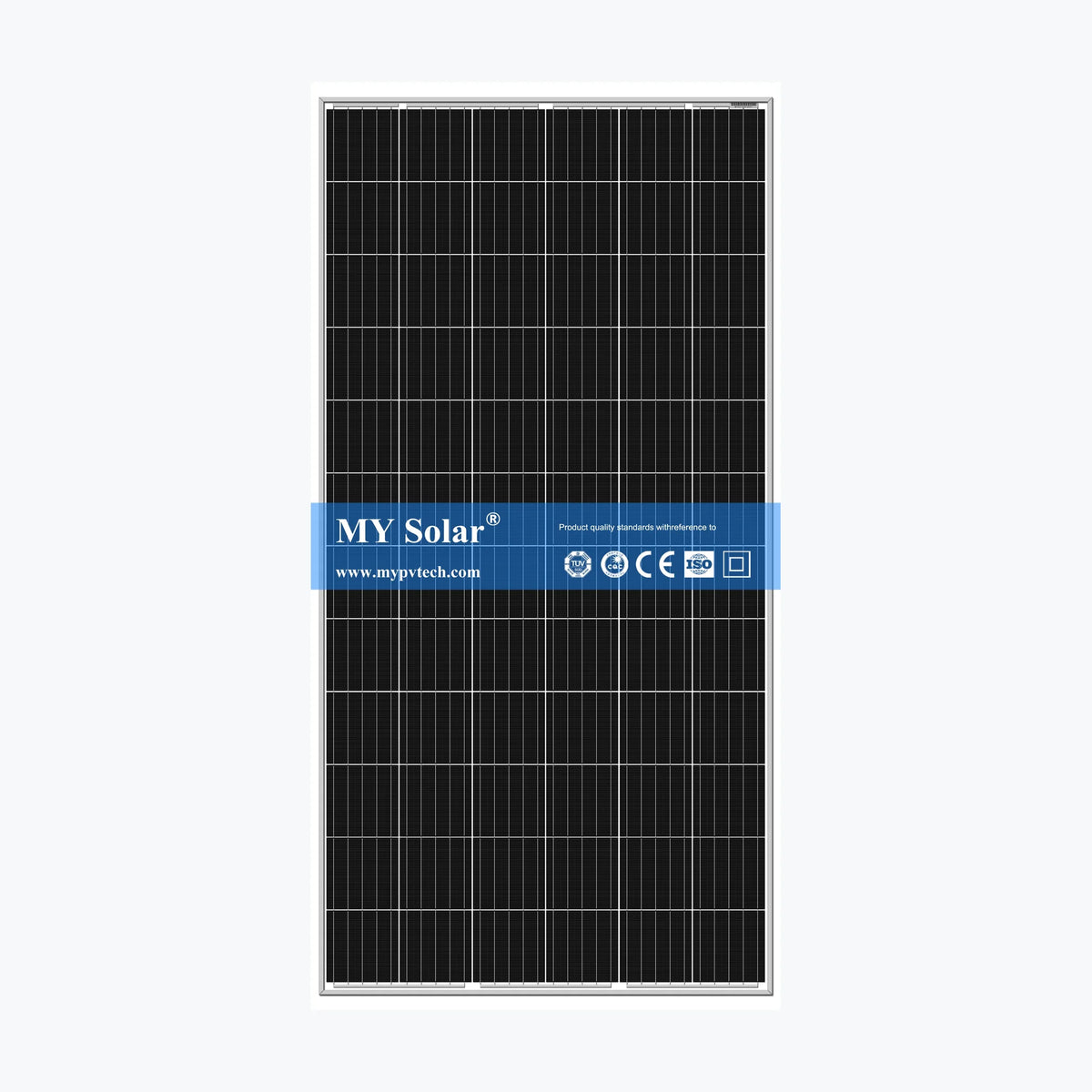

    MY Solar MYM3072-390

    MY Solar MYM3072-390

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12224
    • Container price: $86.40 USD
    • Container qty: 720
    • Pallet price: $4.08 USD
    • Pallet qty: 30
    • Unit price: $0.16 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MYM3072-390 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 390 Wp Voltage at Maximum Power (Vmpp) 41.1 V Current at Maximum Power (Impp) 9.49 A Open Circuit Voltage (Voc) 49.3 V Short Circuit Current (Isc) 10.12 A Panel Efficiency 19.68 % Maximum Power (Pmax) 294 Wp Voltage at Maximum Power (Vmpp) 39.1 V Current at Maximum Power (Impp) 7.54 A Open Circuit Voltage (Voc) 48 V Short Circuit Current (Isc) 8.02 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1980x1000x35 mm Weight 22.3 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufa

      Power Range: 380 ~ 400 Wp
      Panel Efficiency: 19.16 ~ 20.17 %
      Weight: 22.3 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
