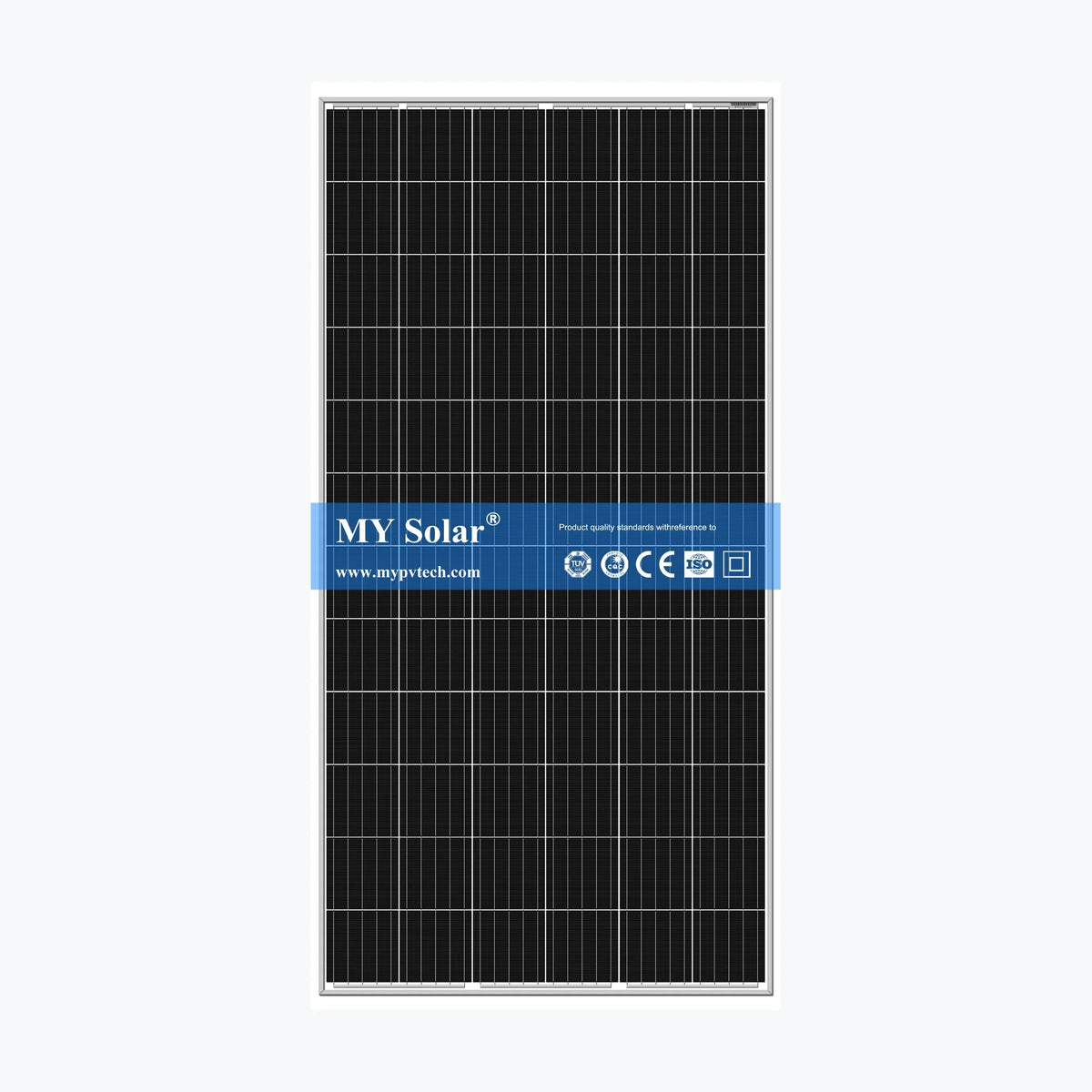

MY Solar MYM3072-395
PayPal Pay in 4 interest-free payments of $34.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12225
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. MYM3072-395 Product Warranty 25 Years Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 395 Wp Voltage at Maximum Power (Vmpp) 41.4 V Current at Maximum Power (Impp) 9.55 A Open Circuit Voltage (Voc) 49.5 V Short Circuit Current (Isc) 10.23 A Panel Efficiency 19.92 % Maximum Power (Pmax) 298 Wp Voltage at Maximum Power (Vmpp) 39.3 V Current at Maximum Power (Impp) 7.6 A Open Circuit Voltage (Voc) 48.2 V Short Circuit Current (Isc) 8.09 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1980x1000x35 mm Weight 22.3 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manuf
Power Range: 380 ~ 400 Wp
Panel Efficiency: 19.16 ~ 20.17 %
Weight: 22.3 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-12225 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
