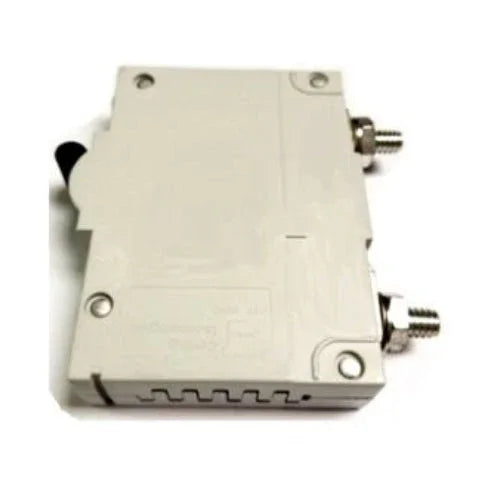

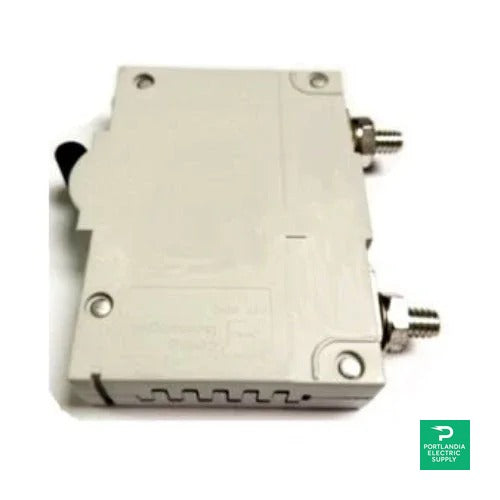

Outback Power 1-Pole 125A Circuit Breaker - PNL-125-300VDC

The Outback Power PNL-125-300VDC is a reliable 1-pole circuit breaker designed to ensure the protection of your electrical systems. This essential component offers 125A capacity, making it perfect for various applications where safety and performance are critical. With its exceptional build quality and user-friendly features, this circuit breaker ensures peace of mind and efficient power management.

Product Features

High-Performance Rating

The Outback Power PNL-125-300VDC circuit breaker is rated at 125A, enabling it to handle significant electrical loads efficiently. This high-performance rating allows users to confidently utilize this breaker in demanding applications, ensuring reliable performance and safety.

Durable Construction

Constructed with robust materials, the PNL-125-300VDC is built to withstand harsh environments and demanding conditions. Its durable design contributes to longevity and reliability, making it a reliable choice for both residential and commercial use.

Easy Installation

Installation of the PNL-125-300VDC is straightforward, with clear instructions provided. This feature reduces labor costs and installation time, allowing users to quickly and efficiently integrate the breaker into their systems.

Compact Design

The compact form factor of the Outback Power breaker makes it suitable for tight spaces, providing flexibility in design and installation. This space-saving feature does not compromise on safety or performance, ensuring optimal use of available area.

Dependable Safety Mechanisms

Equipped with advanced safety mechanisms, the PNL-125-300VDC circuit breaker protects against potential overloads and short circuits. These safety features provide users with an added layer of security, enhancing overall system protection.

How It Works

The Outback Power PNL-125-300VDC circuit breaker functions effectively by automatically interrupting the electrical flow during faults or overload situations. Its design includes essential components that work together to provide reliable operation and user safety.

Internal Mechanism

The breaker€™s internal mechanism includes a bimetallic strip that bends with increased current, thereby triggering the circuit interruption. This proactive approach ensures that users are protected from overload situations, enhancing system safety.

Reset Functionality

After service interruptions, the reset functionality allows users to quickly restore power without the need for replacement. This user-friendly feature promotes convenience and efficiency in managing electrical systems.

Indicator Light

The PNL-125-300VDC is equipped with an indicator light that shows the operational status. This visual cue helps users easily verify the functionality and state of the breaker, facilitating proactive maintenance and safety checks.
