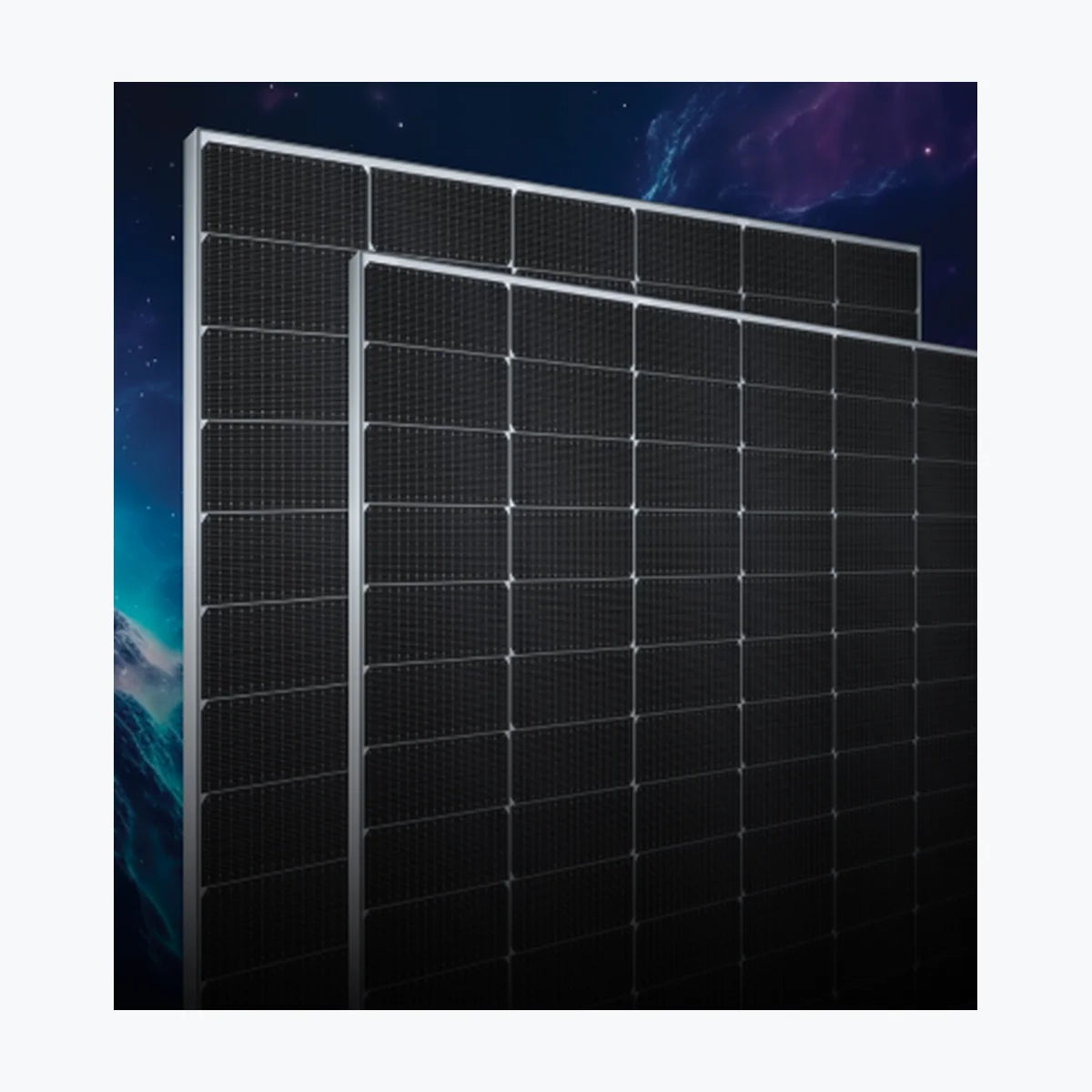

    Philadelphia Solar PS-MNB144(HCBF)-580W

    Philadelphia Solar PS-MNB144(HCBF)-580W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14163
    • Container price: $183.60 USD
    • Container qty: 720
    • Pallet price: $8.67 USD
    • Pallet qty: 30
    • Unit price: $0.34 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. PS-MNB144(HCBF)-580W Product Warranty 12 Years Power Warranty 12 Years of 94.6 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 43.64 V Current at Maximum Power (Impp) 13.33 A Open Circuit Voltage (Voc) 51.65 V Short Circuit Current (Isc) 14.1 A Panel Efficiency 22.45 % Operating Temperature Range -40 - +90 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc +0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 29 kg Cell Size 182×182 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datas

      Technology: N-type
      Power Range: 580 ~ 600 Wp
      Panel Efficiency: 22.45 ~ 23.23 %
      Weight: 29 kg
      Seller Name: Philadelphia Solar LLC
      Country: Jordan
