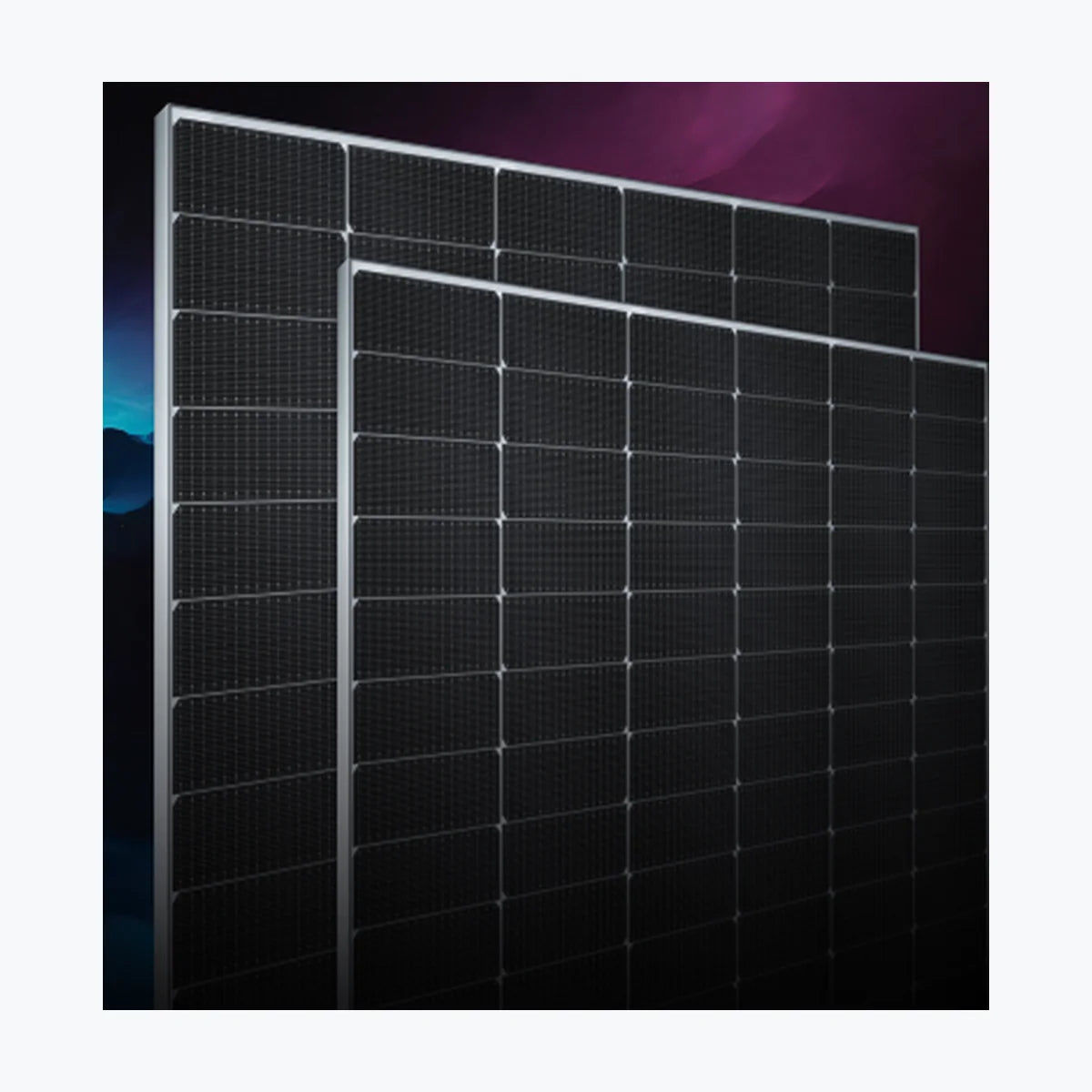

Philadelphia Solar PS-MNB156(HCBF)-630W
Philadelphia Solar PS-MNB156(HCBF)-630W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14165
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. PS-MNB156(HCBF)-630W Product Warranty 12 Years Power Warranty 12 Years of 94.6 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 630 Wp Voltage at Maximum Power (Vmpp) 47.27 V Current at Maximum Power (Impp) 13.33 A Open Circuit Voltage (Voc) 55.95 V Short Circuit Current (Isc) 14.1 A Panel Efficiency 22.57 % Operating Temperature Range -40 - +90 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc +0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2464x1134x35 mm Weight 32.5 kg Cell Size 182×182 mm Cell Number 78 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Data
Technology: Bifacial, N-type
Power Range: 630 ~ 650 Wp
Panel Efficiency: 22.57 ~ 23.26 %
Weight: 32.5 kg
Seller Name: Philadelphia Solar LLC
Country: Jordan -
