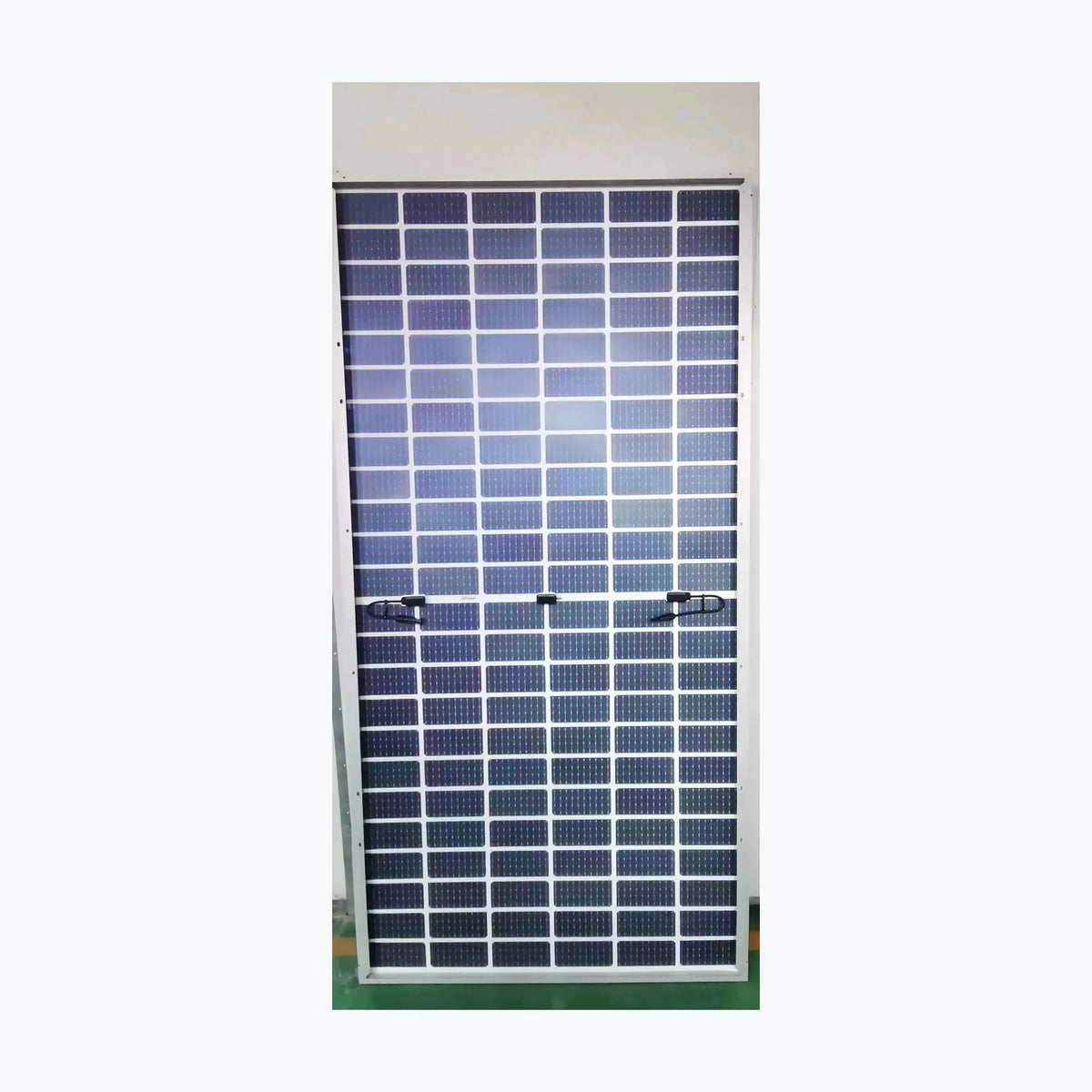

Rarlon PV Tech RL530HM
EOL — While Supplies LastPayPal Pay in 4 interest-free payments of $46.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-15229
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. RL530HM Product Warranty 10 Years Power Warranty 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 530 Wp Voltage at Maximum Power (Vmpp) 41.35 V Current at Maximum Power (Impp) 12.82 A Open Circuit Voltage (Voc) 49.2 V Short Circuit Current (Isc) 13.71 A Panel Efficiency 20.7 % Temperature 47±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.47 %/°C Temperature Coefficient of Voc -0.346 %/°C Temperature Coefficient of Isc 0.036 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2279x1134x35 mm Weight 27 kg Cell Size 182×91 mm Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Power Range: 530 ~ 550 Wp
Panel Efficiency: 20.7 ~ 21.5 %
Weight: 27 kg
Seller: Ningbo Rarlon Photovoltaic Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-15229 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Lifecycle status | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
