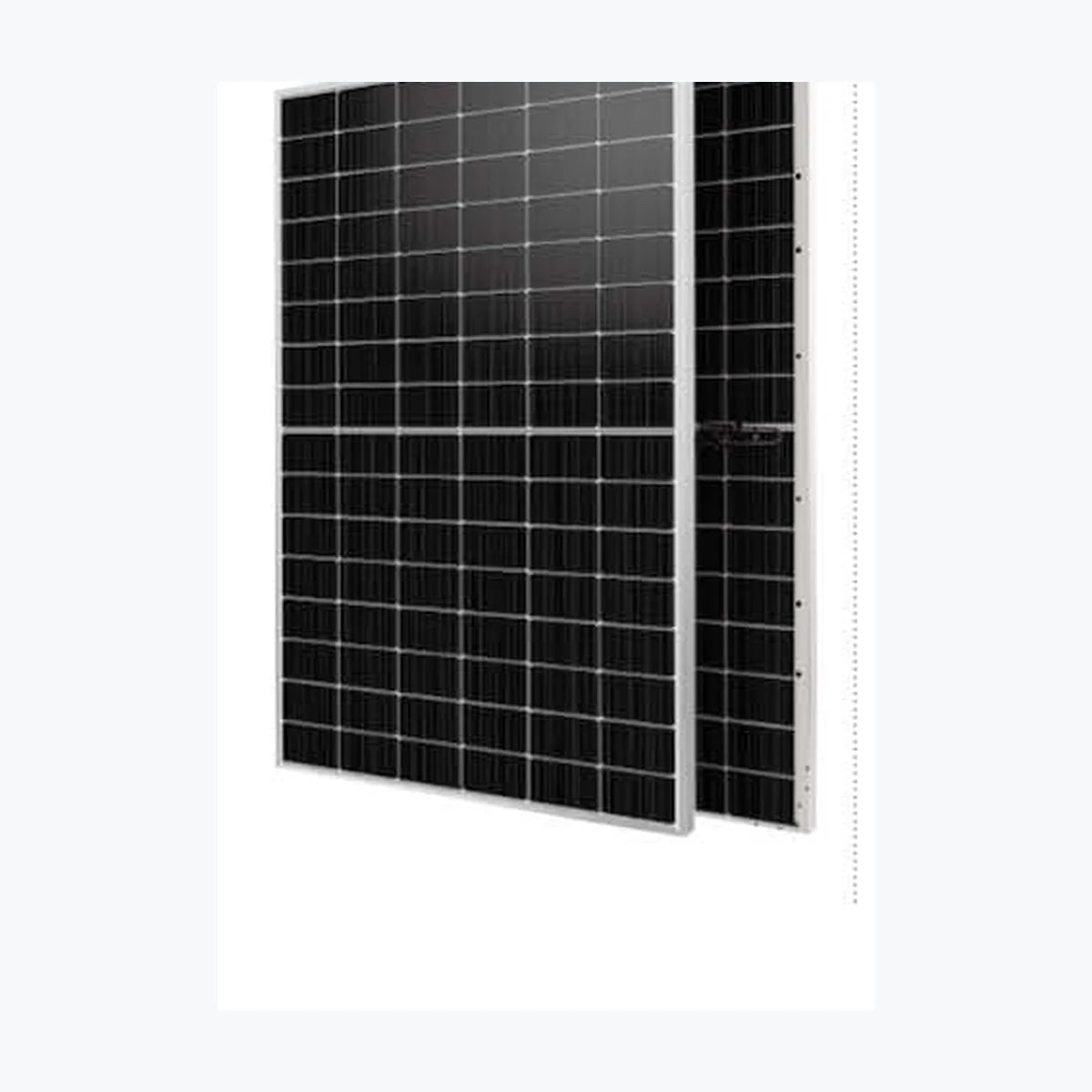

RECOM 445
RECOM 445
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14943
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 445 Product Warranty 30 Years Power Warranty 15 Years of 93.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 29.6 V Current at Maximum Power (Impp) 15.04 A Open Circuit Voltage (Voc) 35.3 V Short Circuit Current (Isc) 15.96 A Panel Efficiency 22.27 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 27.5 V Current at Maximum Power (Impp) 12.18 A Open Circuit Voltage (Voc) 33.3 V Short Circuit Current (Isc) 12.82 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 21 kg Cell Number 96 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 445 ~ 470 Wp
Panel Efficiency: 22.27 ~ 23.52 %
Weight: 21 kg
Seller: Recom Technologies Ltd
Country: Italy -
