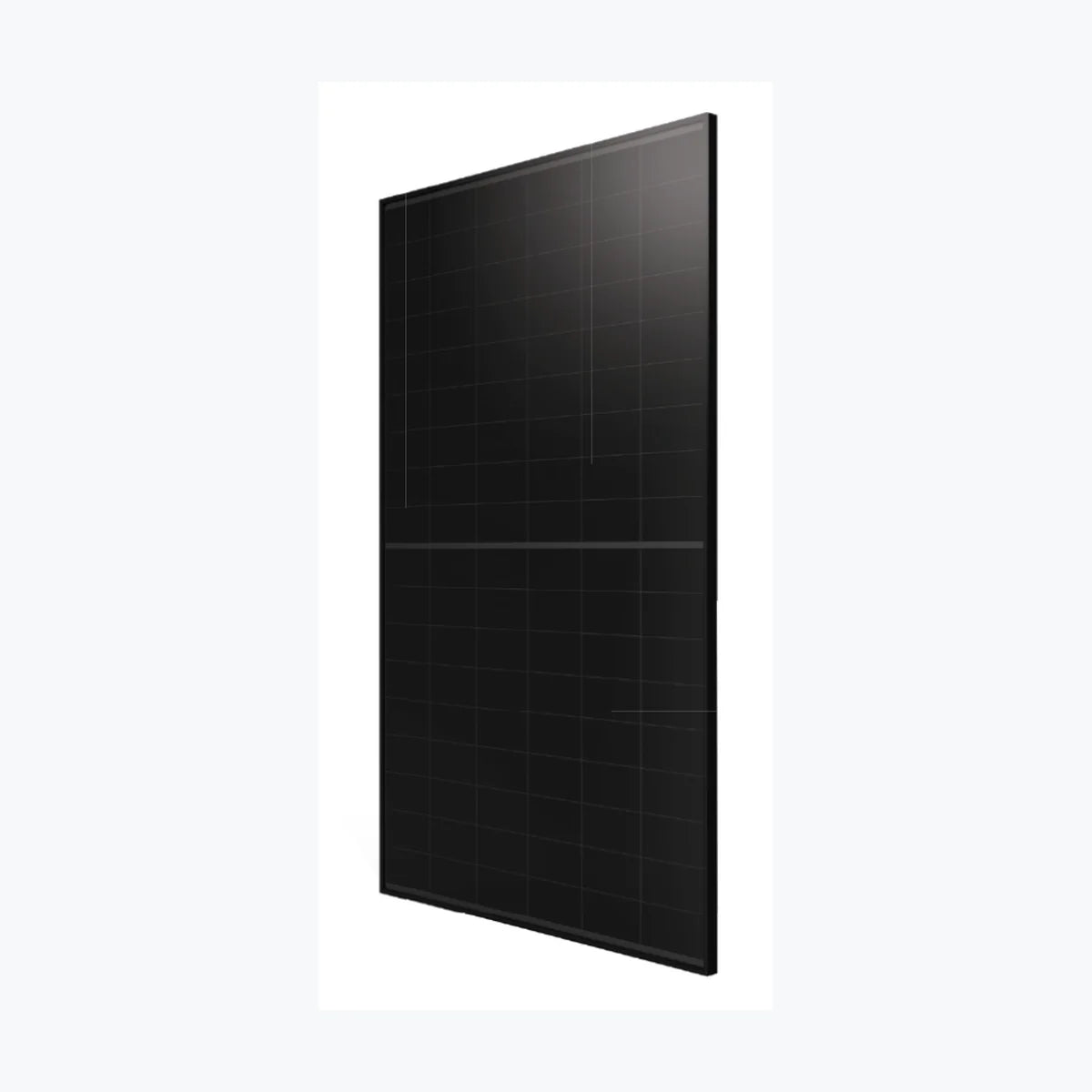

RECOM 480
RECOM 480
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14950
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 480 Product Warranty 25 Years Power Warranty 15 Years of 94.1 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 33.28 V Current at Maximum Power (Impp) 14.43 A Open Circuit Voltage (Voc) 40.29 V Short Circuit Current (Isc) 15.13 A Panel Efficiency 23.5 % Maximum Power (Pmax) 365 Wp Voltage at Maximum Power (Vmpp) 31.63 V Current at Maximum Power (Impp) 11.57 A Open Circuit Voltage (Voc) 38.29 V Short Circuit Current (Isc) 12.16 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1800x1134x30 mm Weight 21.6 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet
Technology: Back Contact, N-type
Power Range: 475 ~ 500 Wp
Panel Efficiency: 23.3 ~ 24.5 %
Weight: 21.6 kg
Seller: Recom Technologies Ltd
Country: Italy -
