Out of Stock

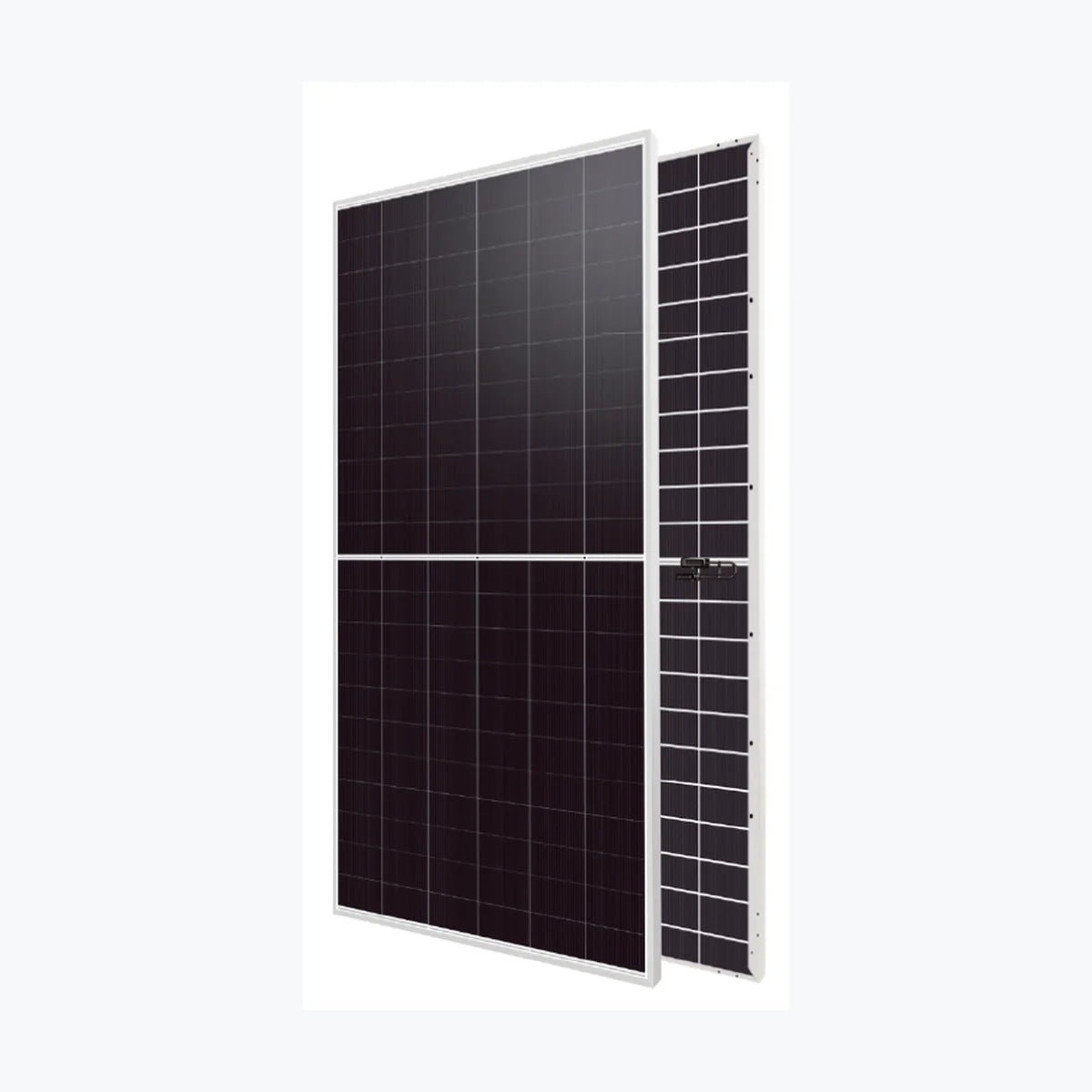

RECOM 710
RECOM 710
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14976
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. 710 Product Warranty 30 Years Power Warranty 15 Years of 94.66 %, 30 Years of 90 % Total Degradation Rate ⏳ 0.33 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 710 Wp Voltage at Maximum Power (Vmpp) 43 V Current at Maximum Power (Impp) 16.52 A Open Circuit Voltage (Voc) 50.5 V Short Circuit Current (Isc) 17.54 A Panel Efficiency 22.86 % Maximum Power (Pmax) 511 Wp Voltage at Maximum Power (Vmpp) 37.2 V Current at Maximum Power (Impp) 13.73 A Open Circuit Voltage (Voc) 44.7 V Short Circuit Current (Isc) 14.58 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.047 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38.5 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1400 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, HJT
Power Range: 710 ~ 730 Wp
Panel Efficiency: 22.86 ~ 23.5 %
Weight: 38.5 kg
Seller: Recom Technologies Ltd
Country: Italy -
