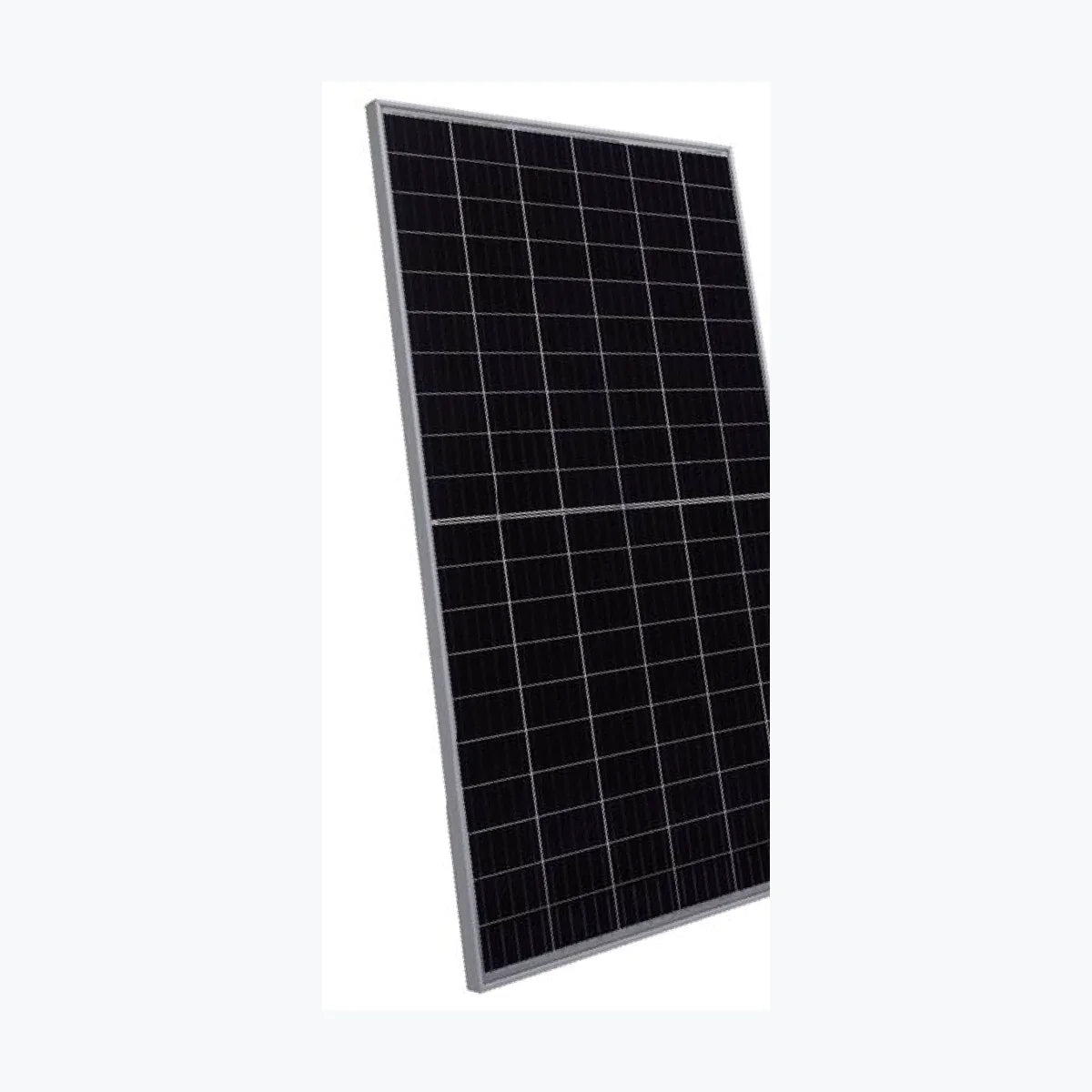

    Runtech China JKM335M-60H

    Runtech China JKM335M-60H

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16236
    • Container price: $43.20 USD
    • Container qty: 720
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Model No. JKM335M-60H Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 33.74 V Current at Maximum Power (Impp) 9.93 A Open Circuit Voltage (Voc) 40.8 V Short Circuit Current (Isc) 10.73 A Panel Efficiency 19.85 % Maximum Power (Pmax) 247 Wp Voltage at Maximum Power (Vmpp) 30.9 V Current at Maximum Power (Impp) 7.98 A Open Circuit Voltage (Voc) 38.4 V Short Circuit Current (Isc) 8.67 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x30 mm Weight 18.5 kg Cell Size 158.75×158.75 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Clas

      Technology: PERC
      Power Range: 325 ~ 345 Wp
      Panel Efficiency: 19.26 ~ 20.45 %
      Weight: 18.5 kg
      Seller Name: Runtech China Co.,Ltd
      Country: China
