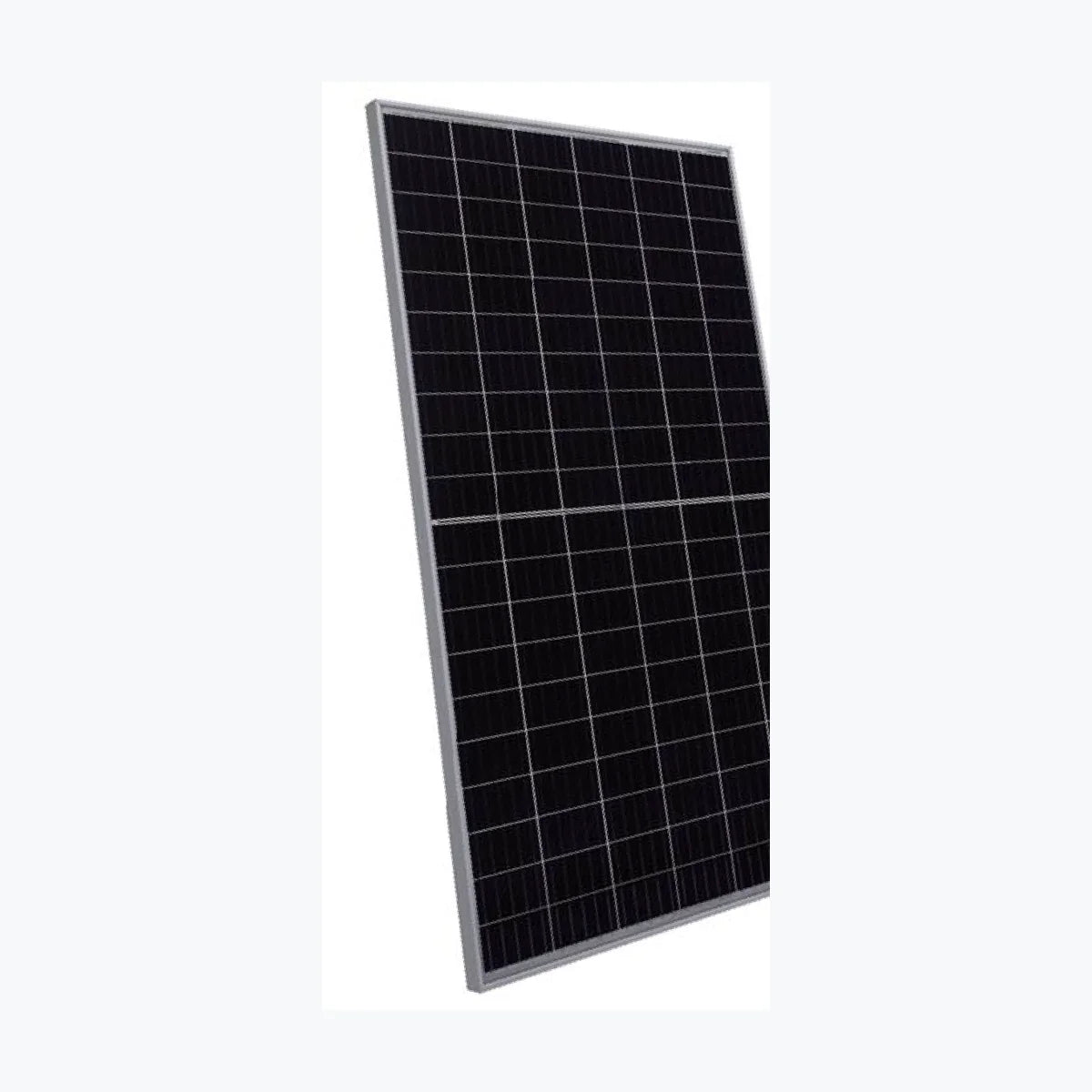

Runtech China JKM345M-60H
Runtech China JKM345M-60H
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16238
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Model No. JKM345M-60H Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 345 Wp Voltage at Maximum Power (Vmpp) 34.12 V Current at Maximum Power (Impp) 10.11 A Open Circuit Voltage (Voc) 41.2 V Short Circuit Current (Isc) 10.91 A Panel Efficiency 20.45 % Maximum Power (Pmax) 254 Wp Voltage at Maximum Power (Vmpp) 32.23 V Current at Maximum Power (Impp) 8.13 A Open Circuit Voltage (Voc) 38.8 V Short Circuit Current (Isc) 8.81 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x30 mm Weight 18.5 kg Cell Size 158.75×158.75 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Cl
Technology: PERC
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.26 ~ 20.45 %
Weight: 18.5 kg
Seller Name: Runtech China Co.,Ltd
Country: China -
