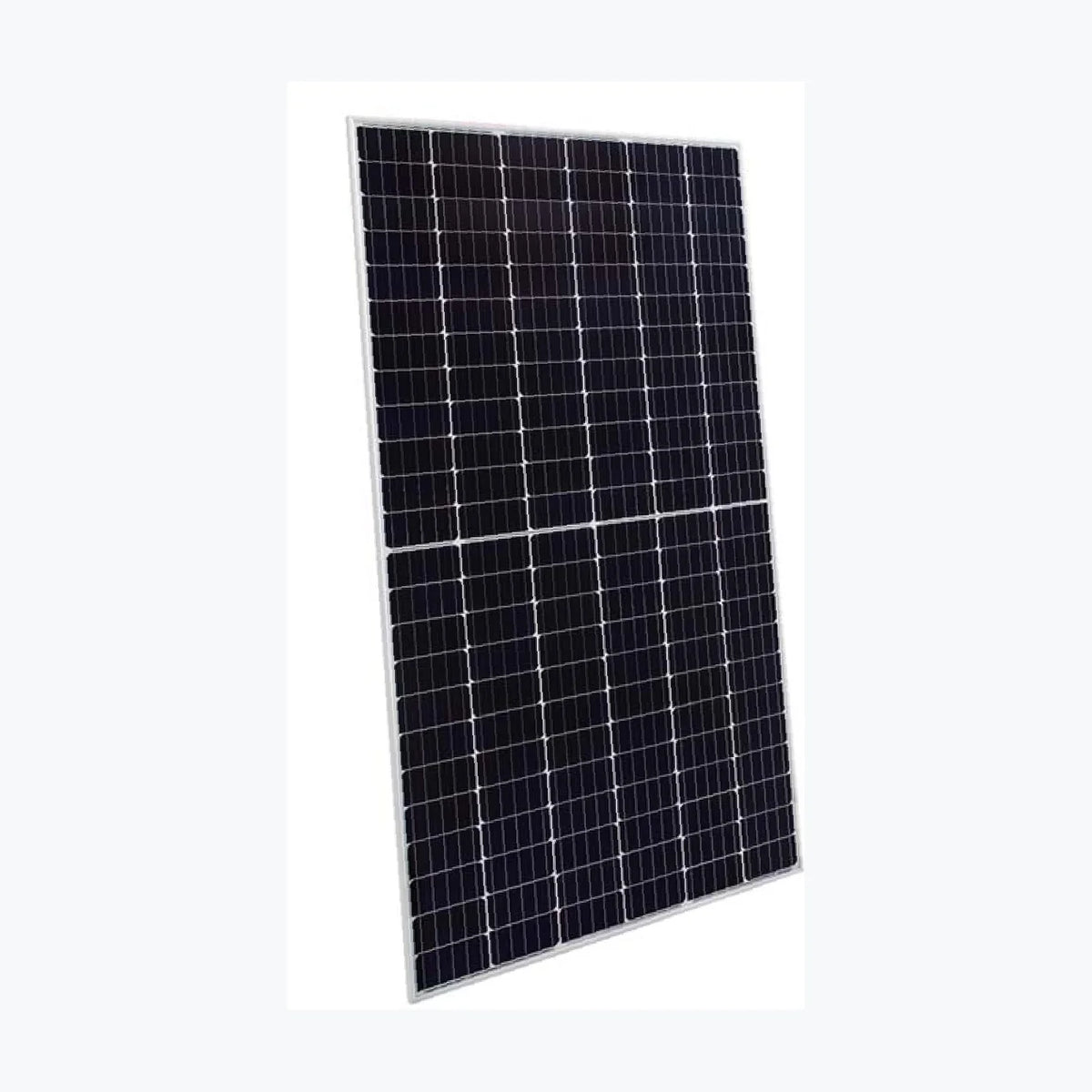

Runtech China JKM390M-72H
Runtech China JKM390M-72H
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16239
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Model No. JKM390M-72H Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 390 Wp Voltage at Maximum Power (Vmpp) 39.64 V Current at Maximum Power (Impp) 9.84 A Open Circuit Voltage (Voc) 48.6 V Short Circuit Current (Isc) 10.46 A Panel Efficiency 19.38 % Maximum Power (Pmax) 287 Wp Voltage at Maximum Power (Vmpp) 37 V Current at Maximum Power (Impp) 7.75 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 8.45 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2008x1002x30 mm Weight 22 kg Cell Size 158.75×158.75 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP
Technology: PERC
Power Range: 390 ~ 410 Wp
Panel Efficiency: 19.38 ~ 20.38 %
Weight: 22 kg
Seller Name: Runtech China Co.,Ltd
Country: China -
