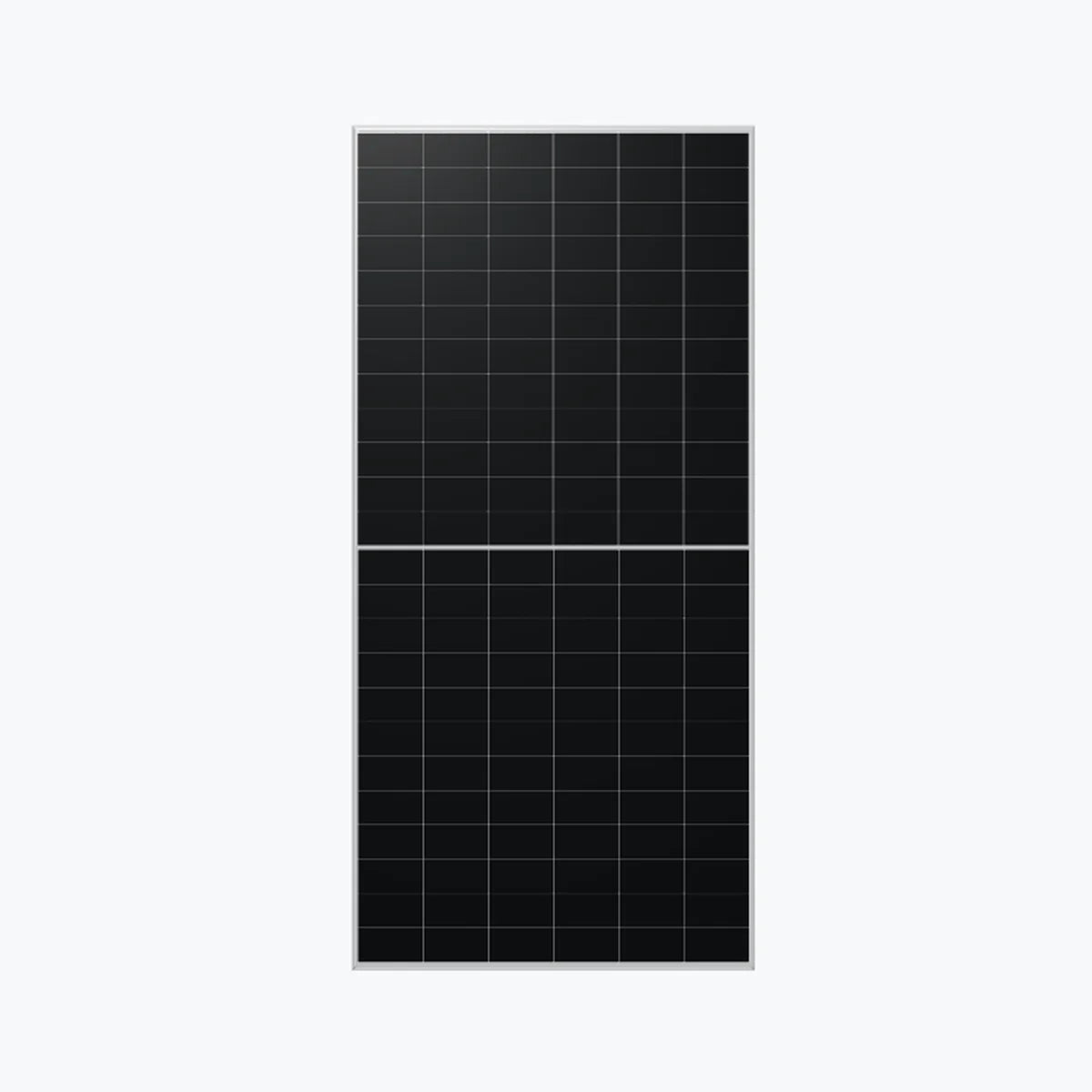

Runtech China LR7-54HTHF-470M
PayPal Pay in 4 interest-free payments of $41.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-16255
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. LR7-54HTHF-470M Product Warranty 15 Years Power Warranty 1 Years of 99 %, 25 Years of 89.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 470 Wp Voltage at Maximum Power (Vmpp) 33.59 V Current at Maximum Power (Impp) 13.99 A Open Circuit Voltage (Voc) 39.75 V Short Circuit Current (Isc) 15 A Panel Efficiency 23 % Maximum Power (Pmax) 351.2 Wp Voltage at Maximum Power (Vmpp) 30.65 V Current at Maximum Power (Impp) 11.45 A Open Circuit Voltage (Voc) 37.32 V Short Circuit Current (Isc) 12.12 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1800x1134x30 mm Weight 21.6 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4
Technology: Back Contact
Power Range: 470 Wp
Panel Efficiency: 23%
Weight: 21.6 kg
Seller Name: Runtech China Co.,Ltd
Country: China
| SKU | PES-SPS-SOL-16255 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
