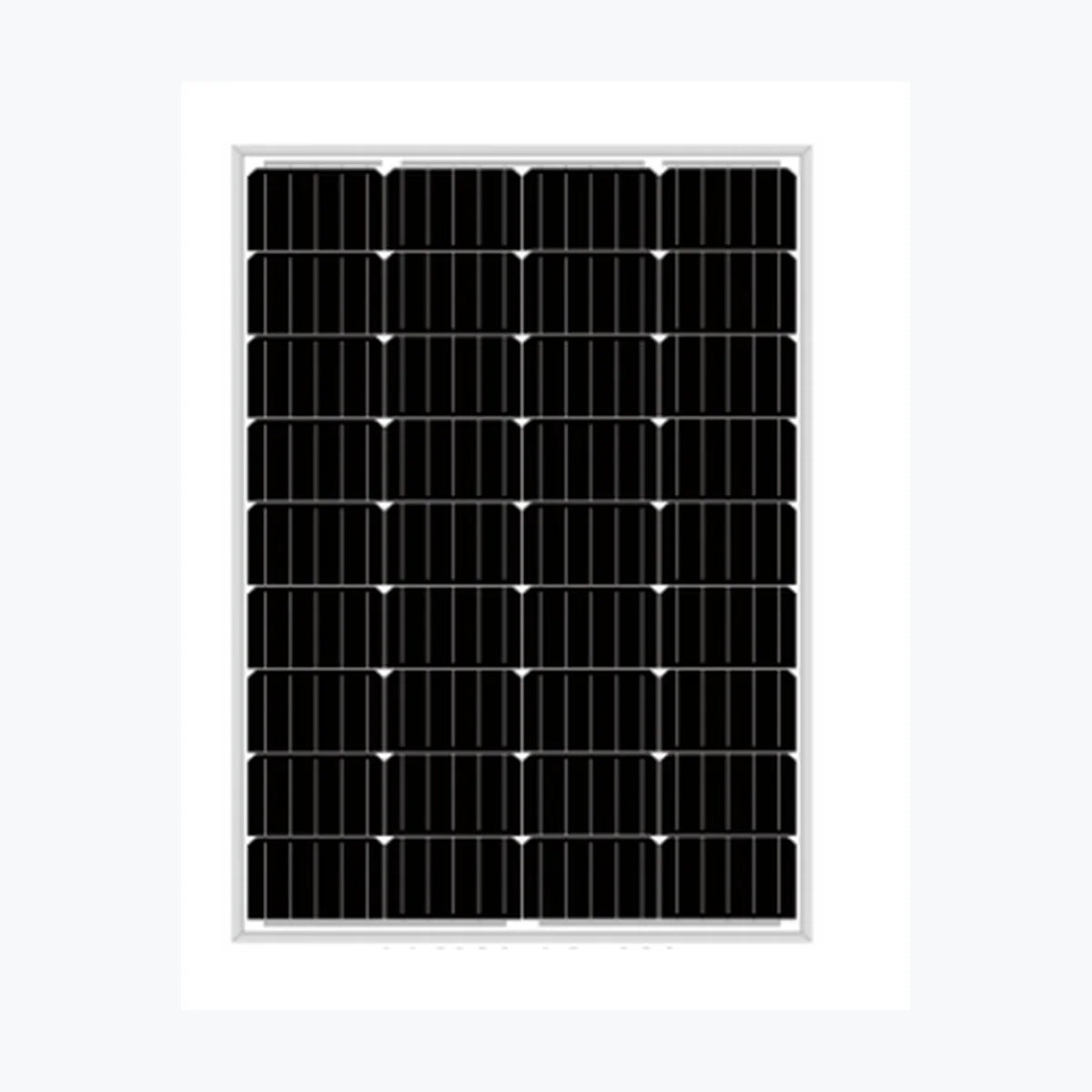

    Runtech China RT120WM

    Runtech China RT120WM

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16258
    • Container price: $59.40 USD
    • Container qty: 720
    • Pallet price: $2.80 USD
    • Pallet qty: 30
    • Unit price: $0.11 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. RT120WM Power Warranty 12 Years of 90 %, 20 Years of 80 % Total Degradation Rate ⏳ 1 % Power Tolerance -5 ~ +5 % Maximum Power (Pmax) 120 Wp Voltage at Maximum Power (Vmpp) 18.6 V Current at Maximum Power (Impp) 6.46 A Open Circuit Voltage (Voc) 22.8 V Short Circuit Current (Isc) 6.95 A Panel Efficiency 15.9 % Temperature 47±0 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.23 %/°C Temperature Coefficient of Voc -0.33 %/°C Temperature Coefficient of Isc 0.1 %/°C Panel Dimension (H/W/D) 1000x665x35 mm Weight 6.8 kg Cell Number 36 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 2 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 2.5 mm2 Cable Length 1000 mm Download Manufacturer's PDF Datasheet

      Power Range: 120 Wp
      Panel Efficiency: 15.90%
      Weight: 6.8 kg
      Seller Name: Runtech China Co.,Ltd
      Country: China
