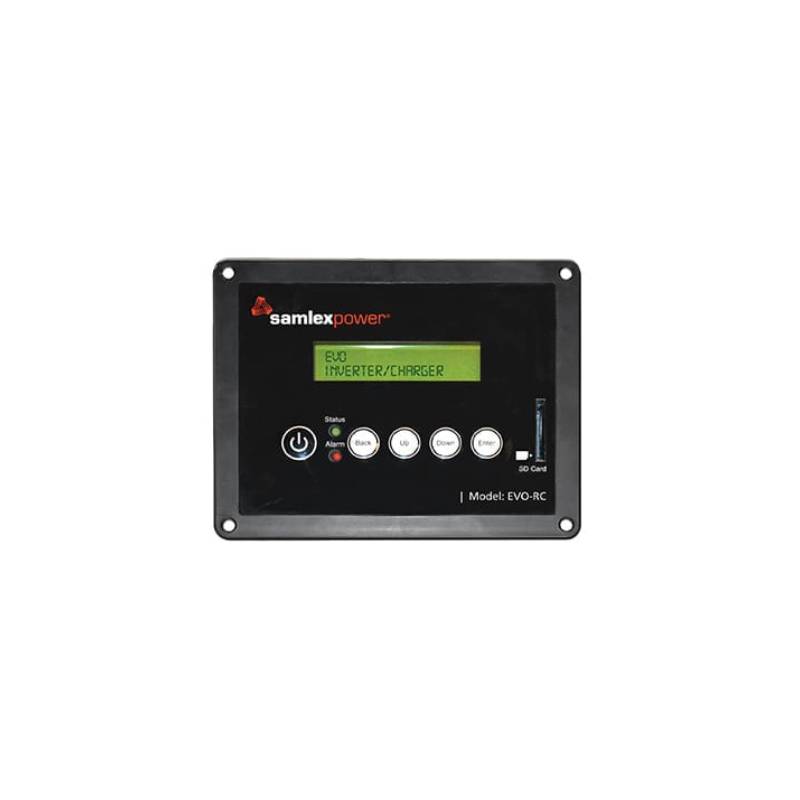

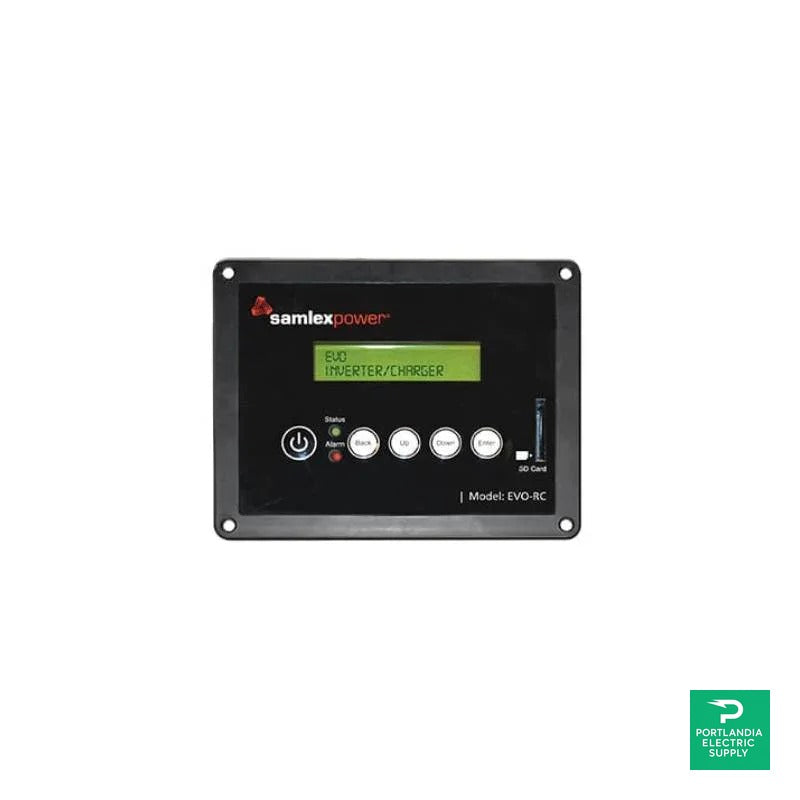

Samlex EVO Series Optional Remote Control - EVO-RC

The Samlex EVO-RC is a versatile remote control designed specifically for the EVO Series Inverter Chargers. This product enhances user experience by allowing easy access to a range of programmable parameters and operational modes. With real-time performance tracking and historical data logging capabilities, the EVO-RC ensures efficient management of off-grid resources, making it an essential tool for any serious user of inverter technology.

Product Features

Customizable Operation Modes

The EVO-RC allows users to program various parameters and operation modes, offering flexibility tailored to individual needs. This feature ensures that the inverter operates in the most efficient manner according to user preferences.

Real-Time Performance Monitoring

By providing real-time data and performance details, the Samlex EVO-RC empowers users to monitor the status of their inverter and charging modes effectively, enhancing overall usability.

Data Logging with SD Card

This remote control features an SD card slot that supports cards up to 32GB, allowing users to capture and record essential performance data. This capability is crucial for tracking historic power consumption and identifying trends for optimized energy use.

Status Indication and Fault Detection

The LCD display offers clear indications of the inverter's operational status, and LED indicators signal faults or alarms, ensuring users are always informed of system conditions. This transparency improves user experience significantly.

Convenient Connectivity

Included with the EVO-RC is a 33 ft RJ-45 data cable, which simplifies the connection process for hassle-free installation and setup. This feature supports seamless integration with compatible inverter models.

How It Works

The Samlex EVO-RC operates by connecting to the compatible inverter chargers, allowing the user to manage and monitor the inverter€™s performance through its intuitive interface. This remote control simplifies interaction and enhances operational efficiency for both beginners and advanced users alike.

Connection Interface

The remote control connects to the inverter through the RJ-45 data cable, facilitating communication between the devices for enhanced operational efficiency.

Performance Feedback

Real-time feedback is provided on the LCD display, allowing users to make informed decisions based on the inverter's operational status, including charging activities and power usage.

Data Management Capabilities

The EVO-RC allows users to track trends and analyze usage patterns through data logging, which aids in optimizing resource utilization in off-grid applications.

Specifications

Model Number	EVO-RC
Display Type	LCD Display (2 Rows, 16 Characters each)
LED Indicators	Green for Status; Red for Fault/Alarm
Data Cable Length	10 Meters / 33 Feet
Operating Temperature Range	-20°C to 60°C
Dimensions (W x H x D)	144 x 114 x 35.5 mm (5.6 x 4.5 x 1.4 inches)
Weight Without Cable	0.2 kg / 0.4 lb
Weight With Cables	0.5 kg / 1.2 lb
Compatible Models	EVO-2212, EVO-3012, EVO-2224, EVO-4024, EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E
Warranty	3 Year Limited Warranty
